Release Info
| Catalog ID | TGN-024-RB3 |
|---|---|
| Region | USA (NTSC) |
| Class | Unlicensed |
| Release Date | 1991 |
| Publisher | Tengen |
| Developer | Tengen |
| Players | 2 |
| Peripherals | NES Controller |

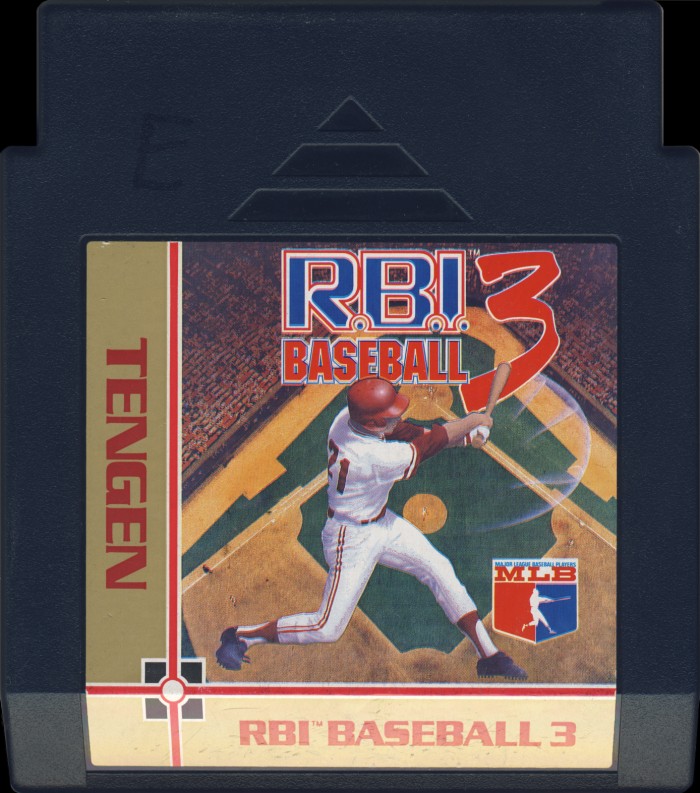

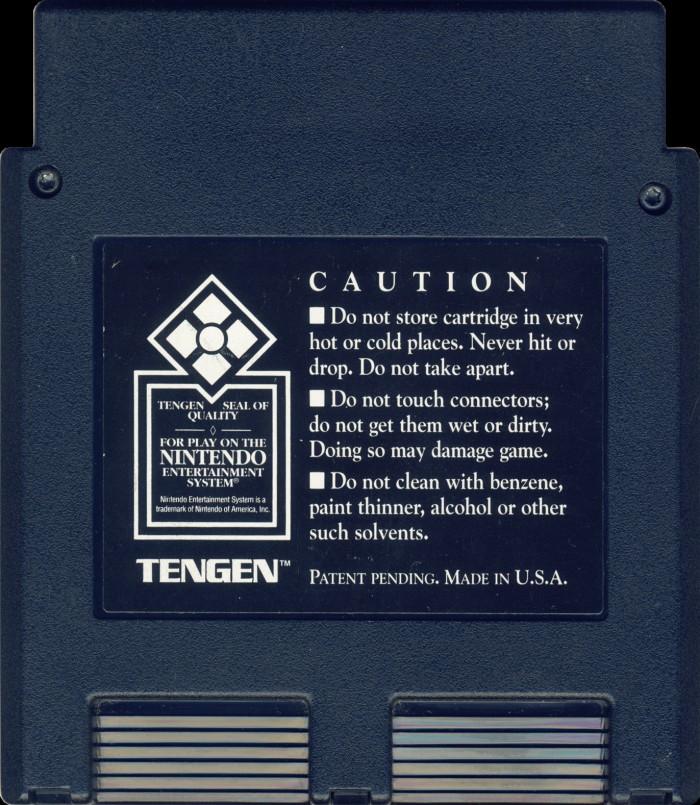

Cart Properties
| Cart Producer | Tengen |
|---|---|
| Color | Black |
| Form Factor | Original |
| Embossed Text | |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

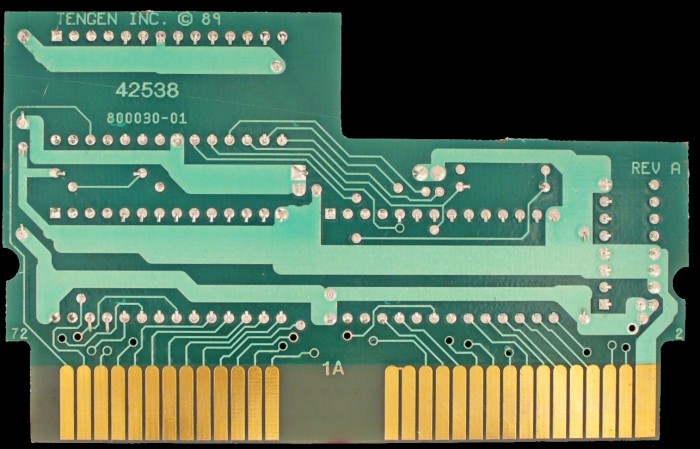

PCB Properties
| Name | 800030-01 REV A |
|---|---|
| PCB Producer | Tengen |
| Manufacturer | Key Tronic |
| Mfg Range | 9135 |
| Est First Run | September 1991 |
| PCB Class | TENGEN-800030 |
| iNES Mapper | 206 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 337002 |
| Hardware | 337001 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | 335024-1011 RB3PR | 128 KB | BAB897FE | 3 |
| CHR0 | 335024-1012 RB3CH | 64 KB | E7D4D434 | 3 |
| N/A | ROMs Combined | 192 KB | FD63E7AC | 3 |

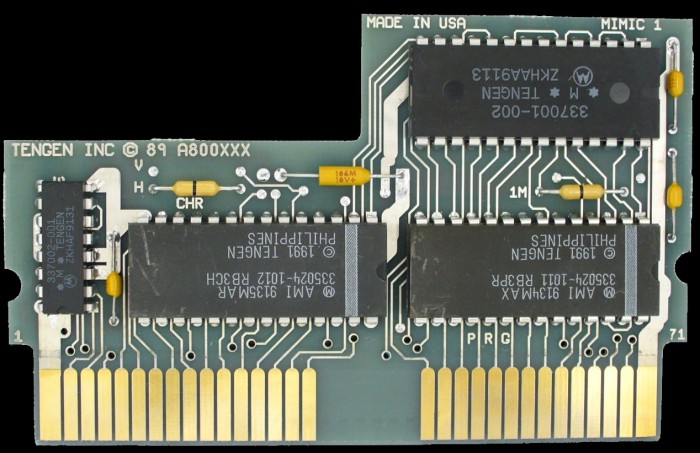

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | AMI | AM231002 | Mask ROM 128 KB | DIP-28 | 9134 MAX | 9134 | |
| CHR | AMI | AM23512 | Mask ROM 64 KB | DIP-28 | 9135 MAR | 9135 | |
| 337002 | Motorola | 337002-001 | Tengen CIC | DIP-16 | 9131 ZKHAF | 9131 | |
| MIMIC 1 | Motorola | 337001-002 | Tengen MIMIC-1 | DIP-28 | 9113 ZKHAA | 9113 |
