Release Info
| Catalog ID |
CAP-DW |
| Region |
Japan (NTSC) |
| Class |
Licensed |
| Release Date |
April 23, 1993 |
| Publisher |
Capcom |
| Developer |
Capcom |
| Players |
1 |
| Peripherals |
Famicom Controller |

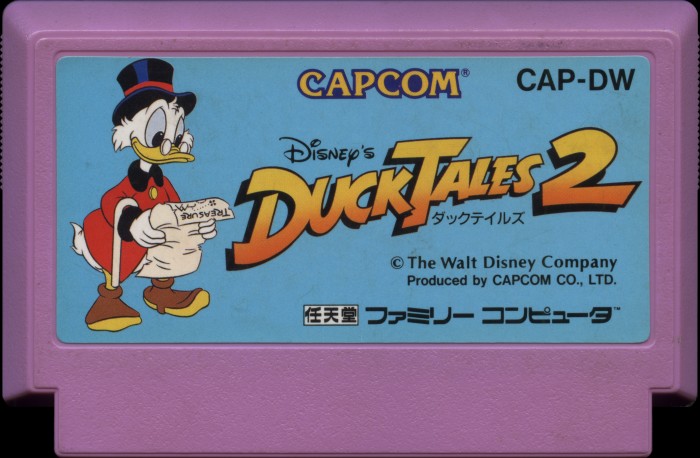

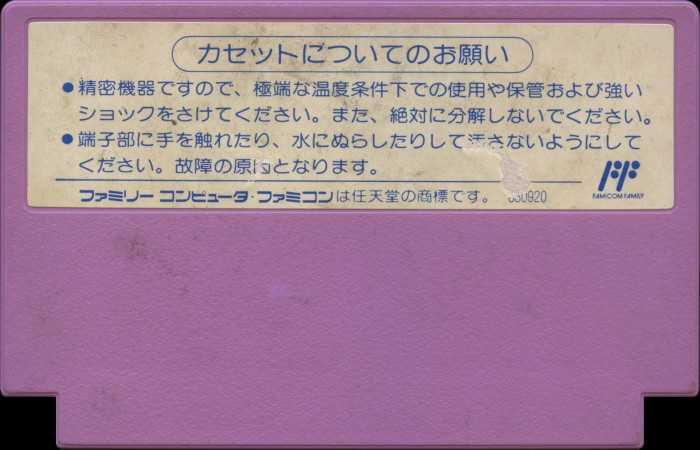

Cart Properties
| Cart Producer |
Nintendo (Famicom) |
| Color |
Plum |
| Form Factor |
Small |
| Embossed Text |
|
| Front Label ID |
CAP-DW |
| Seal of Quality |
|
| MfgString Present |
|
| 2-digit Code |
00 |
PCB Properties
| Name |
HVC-UNROM-10 |
| PCB Producer |
Nintendo |
| Manufacturer |
Not Specified |
| Mfg Range |
9309 |
| Est First Run |
March 1993 |
| PCB Class |
HVC-UNROM |
| iNES Mapper |
2 |
| Mirroring |
Horizontal |
| Battery present |
No |
| WRAM |
0 KB |
| VRAM |
8 KB |
| CIC Type |
None |
| Hardware |
74xx161, 74xx32 |
ROM Details
| Type |
Label |
Size |
CRC32 |
x ! |
| PRG0 |
CAP-DW-0 PRG |
128 KB |
EDDCC468 |
0 |
Detailed Chip Info
| Designation |
Maker |
Part # |
Type |
Package |
Date Code |
Std |
Misc |
| U1 PRG |
Ricoh |
RP231027D
6721
|
Mask ROM
128 KB
|
DIP-28 |
3CC
1G
|
9309 |
|
| U2 CHR RAM |
Motorola |
MCM6064P12
|
SRAM
8 KB
|
DIP-28 |
9245
HCK
|
9245 |
|
| U3 HC161 |
GoldStar |
GD74HC161
|
74-161 Series
|
DIP-16 |
9249
|
9249 |
|
| U4 HC32 |
GoldStar |
GD74HC32
|
74-32 Series
|
DIP-14 |
9248
|
9248 |
|
