Release Info
| Catalog ID | HVC-SC |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | April 9, 1985 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | Famicom Controller |

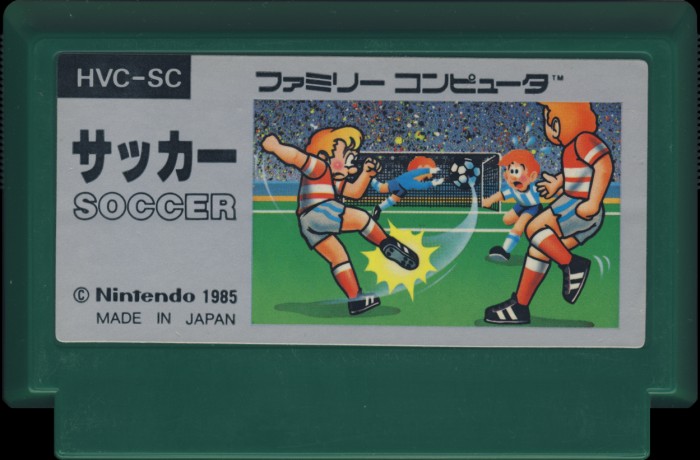

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Dark Green |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-SC |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

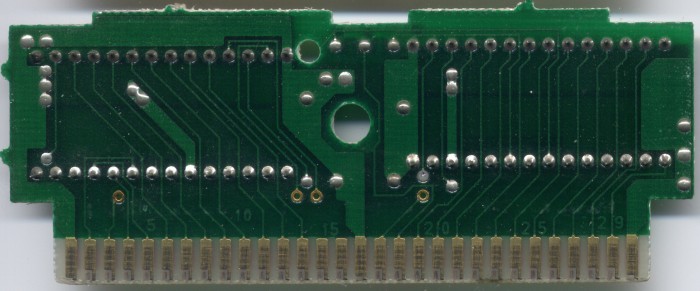

PCB Properties
| Name | HVC-NROM-256K-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8515 - 8542 (5) |
| Est First Run | April 1985 |
| PCB Class | HVC-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-SC-0 PRG | 32 KB | 32E37DCB | 13 |
| CHR0 | HVC-SC-0 CHR | 8 KB | 307B19AB | 19 |
| N/A | ROMs Combined | 40 KB | 657F7875 | 14 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Sharp | LH2357 04 | Mask ROM 32 KB | DIP-28 | 8542 E | 8542 | |
| CHR | Sharp | LH2367 02 | Mask ROM 8 KB | DIP-28 | 8541 3 D | 8541 |
