Release Info
| Catalog ID | HVC-PP |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | July 15, 1983 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | Famicom Controller |

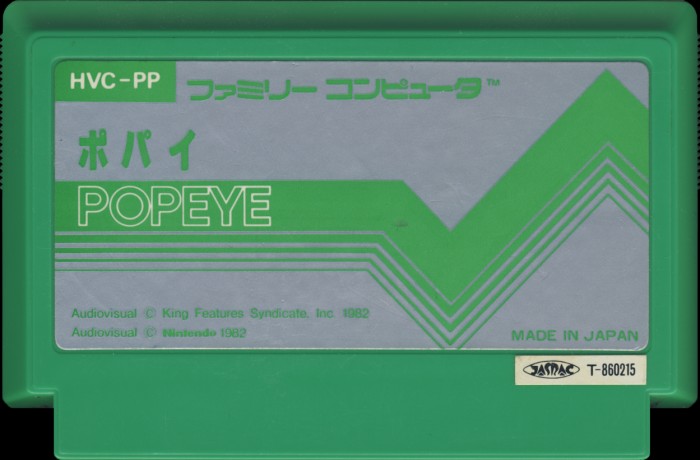

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Lime Green |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-PP |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

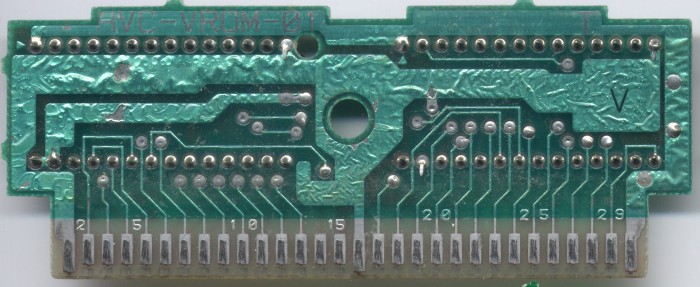

PCB Properties
| Name | HVC-VROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8347 - 8429 (3) |
| Est First Run | November 1983 |
| PCB Class | HVC-VROM |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-PP-0 PRG | 16 KB | F1FFD9F8 | 5 |
| CHR0 | HVC-PP-0 CHR | 8 KB | A5FD8D98 | 11 |
| N/A | ROMs Combined | 24 KB | 5581E835 | 6 |

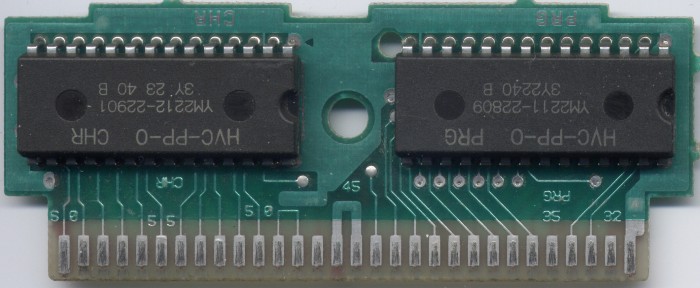

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG | Yamaha | YM2211 22809 | Mask ROM 16 KB | DIP-28 | 3Y 22 40 B | 8347 | |
| CHR | Yamaha | YM2212 22901 | Mask ROM 8 KB | DIP-28 | 3Y 23 40 B | 8347 |
