Release Info
| Catalog ID | SUN-AFB-6200 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | March 30, 1989 |
| Publisher | Sunsoft |
| Developer | Sega |
| Players | 1 |
| Peripherals | Famicom Controller |

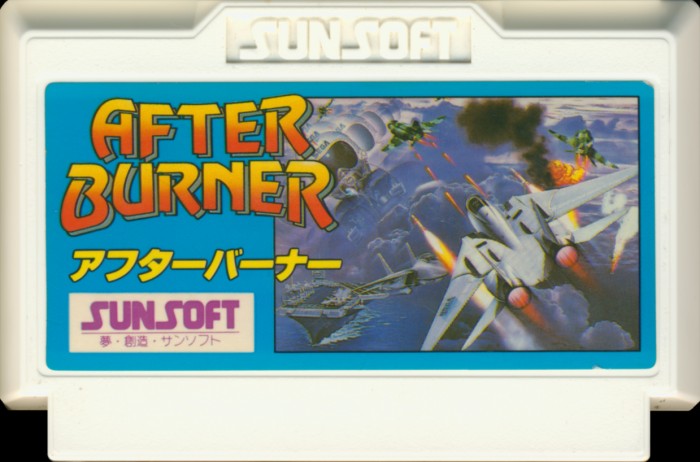

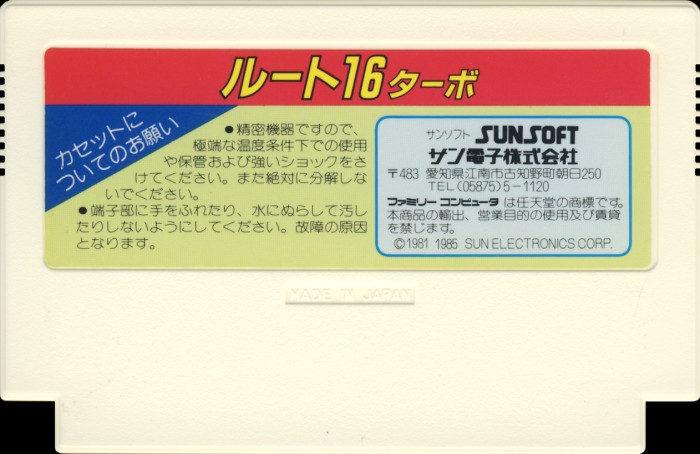

Cart Properties
| Cart Producer | Sunsoft |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

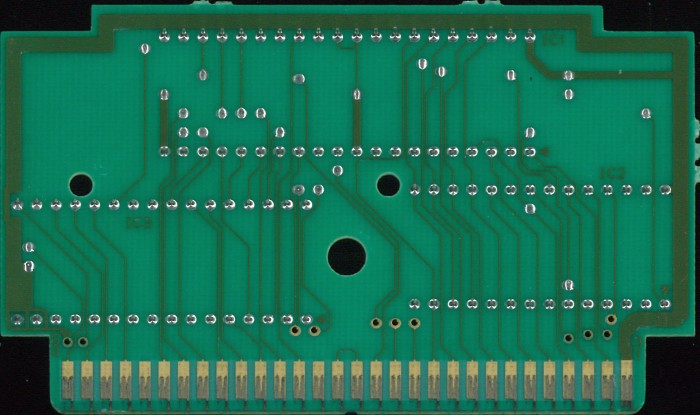

PCB Properties
| Name | SUNSOFT-6A |
|---|---|
| PCB Producer | Sunsoft |
| Manufacturer | Not Specified |
| Mfg Range | 8907 - 8911 (2) |
| Est First Run | February 1989 |
| PCB Class | SUNSOFT-4 |
| iNES Mapper | 68 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | Sunsoft-4 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | MPR-12363 | 128 KB | 88F202F0 | 2 |
| CHR0 | SUNSOFT-C | 256 KB | A75CB06D | 1 |
| N/A | ROMs Combined | 384 KB | F2CE3641 | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 | NEC | SUNSOFT-4 | Sunsoft-4 | DIP-40 | 8851 KP | 8851 | |
| IC2 | Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8911 D | 8911 | |
| IC3 | Fujitsu | MB832000 | Mask ROM 256 KB | DIP-32 | 8908 R00 | 8908 |
