Release Info
| Catalog ID | CAP-IM |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | September 24, 1987 |
| Publisher | Capcom |
| Developer | Capcom |
| Players | 1 |
| Peripherals | Mahjong Controller,Famicom Controller |

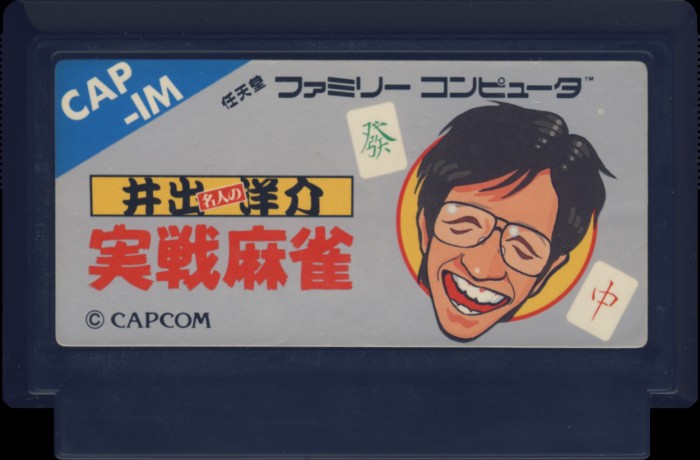

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | CAP-IM |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |
PCB Properties
| Name | HVC-UNROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8737 - 8943 (4) |
| Est First Run | September 1987 |
| PCB Class | HVC-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | CAP-IM-0 PRG | 128 KB | 8E066CCB | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG-ROM | Ricoh | RP231024D 0220 | Mask ROM 128 KB | DIP-28 | 7J1 A6 | 8737 | |
| CHR RAM | Hitachi | HM6264LFP-15 | SRAM 8 KB | SOP-28 | 8607 | 8607 | U0202WW0 |
| LS161 | Sharp | LR74HC161 | 74-161 Series | DIP-16 | 8711 CA | 8711 | |
| LS32 | Panasonic | MN74HC32 | 74-32 Series | DIP-14 | 7? | 8735 |
