Release Info
| Catalog ID | NES-YX-ESP |
|---|---|
| Region | Spain (PAL-B) |
| Class | Licensed |
| Release Date | 1990 |
| Publisher | Jaleco |
| Developer | Aicom |
| Players | 1 |
| Peripherals | NES Controller |

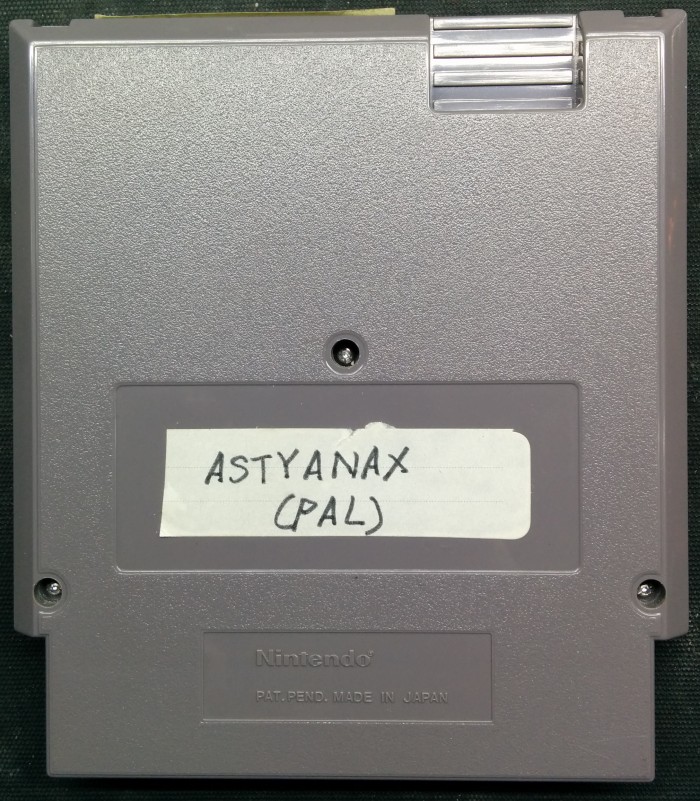

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

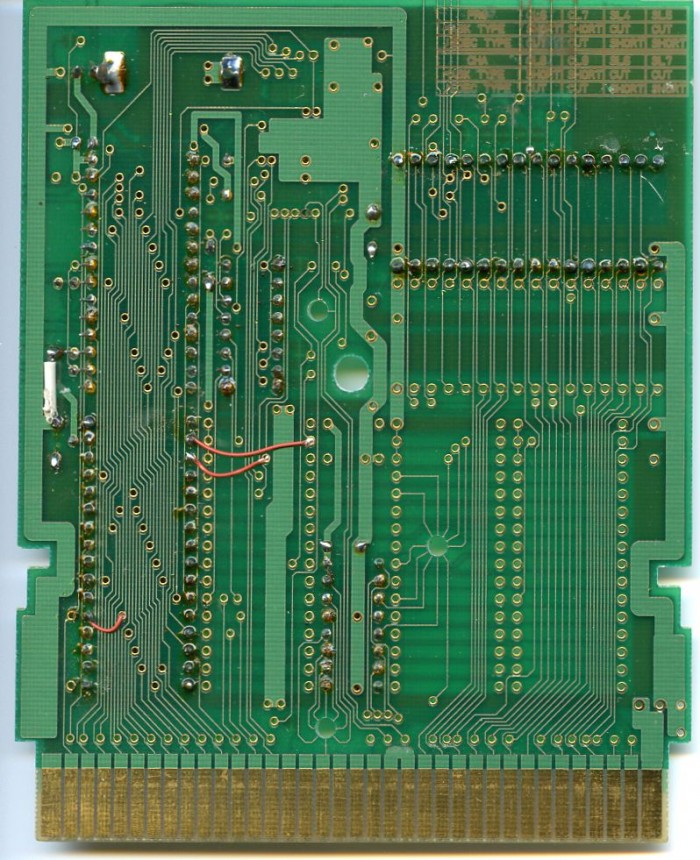

PCB Properties
| Name | NES-TKEPROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9135 |
| Est First Run | September 1991 |
| PCB Class | NES-TKEPROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3195A |
| Hardware | 74xx139, MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | ASTYANAX PRG | 128 KB | EC6D545A | 1 |
| CHR0 | ASTYANAX CHR | 128 KB | 545C1B47 | 1 |
| N/A | ROMs Combined | 256 KB | F27D4017 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG-ROM | Hitachi | HN27C301AG-20 | UV EPROM 128 KB | DIP-32 | 9024 | 9024 | |
| U10 | Motorola | MC74HC139 | 74-139 Series | DIP-16 | 8447 N J | 8447 | |
| U5 CHR-ROM | Hitachi | HN27C301AG-20 | UV EPROM 128 KB | DIP-32 | 9046 | 9046 | |
| U8 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9017 3 EA | 9017 | |
| U9 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 8836 A | 8836 |
