Release Info
| Catalog ID | NES-5C-ESP |
|---|---|
| Region | Spain (PAL-B) |
| Class | Licensed |
| Release Date | August 20, 1992 |
| Publisher | Mindscape |
| Developer | Gray Matter |
| Players | 1 |
| Peripherals | NES Controller |
Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

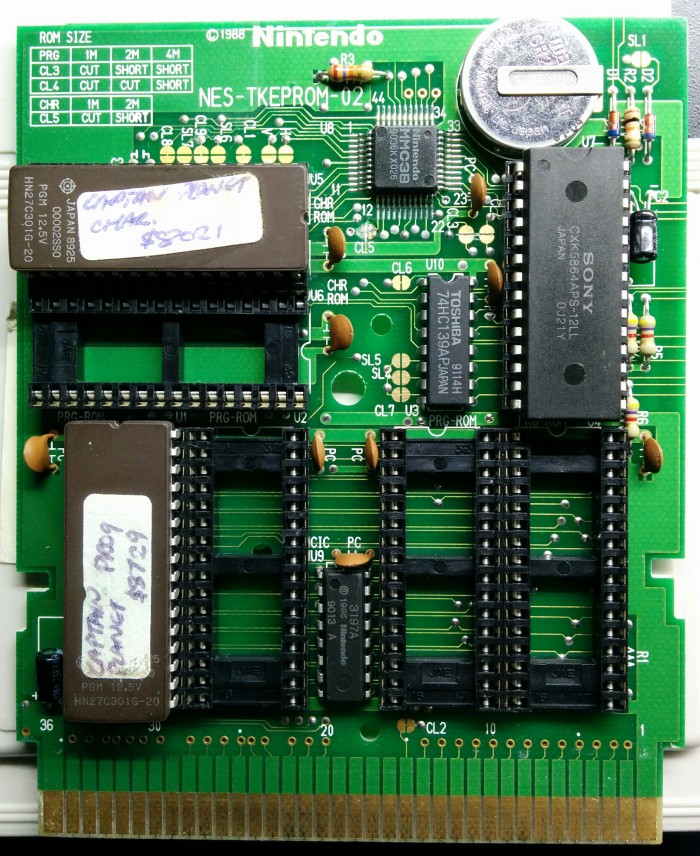

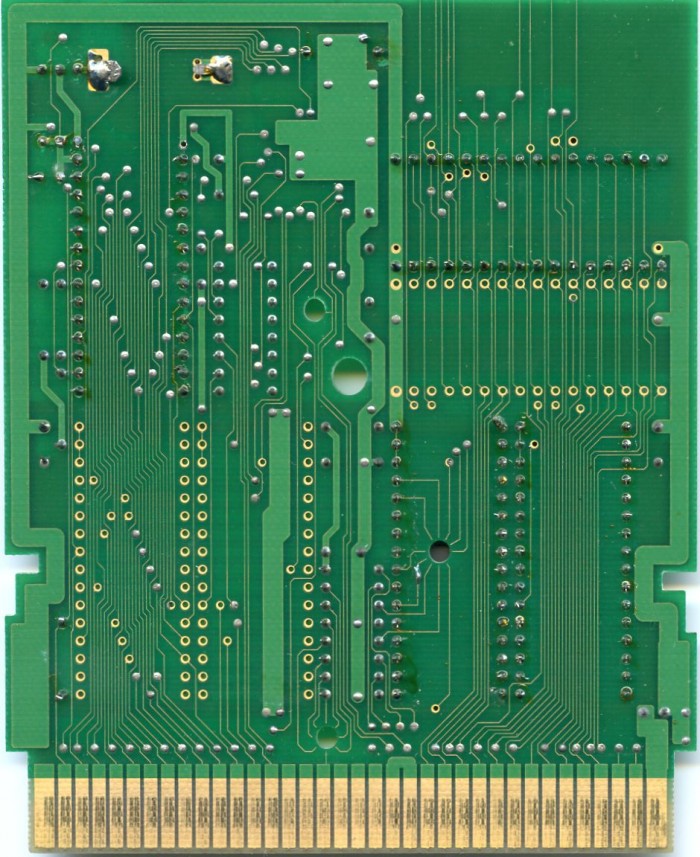

PCB Properties
| Name | NES-TKEPROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | |
| Est First Run | |
| PCB Class | NES-TKEPROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 3197A |
| Hardware | 74xx139, MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | CAPTAIN PLANET PROG $8729 | 128 KB | B1A064B8 | 1 |
| CHR0 | CAPTAIN PLANET CHAR $8021 | 128 KB | 8D92550D | 5 |
| N/A | ROMs Combined | 256 KB | 58A74747 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG-ROM | Hitachi | HN27C301G-20 | UV EPROM 128 KB | DIP-32 | 8925 | 8925 | |
| U10 | Toshiba | 74HC139AP | 74-139 Series | DIP-16 | 9114 H | 9114 | |
| U5 CHR-ROM | Hitachi | HN27C301G-20 | UV EPROM 128 KB | DIP-32 | 8925 | 8925 | |
| U7 W-RAM | Sony | CXK5864APS-12LL | SRAM 8 KB | DIP-28 | 0J 21Y | 9040 | |
| U8 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9036 K X 026 | 9036 | |
| U9 CIC | Sharp | 3197A | Nintendo CIC | DIP-16 | 9013 A | 9013 |
