Release Info
| Catalog ID | NES-RR-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | September 27, 1989 |
| Publisher | Jaleco |
| Developer | Hudson Soft |
| Players | 1 |
| Peripherals | NES Controller |

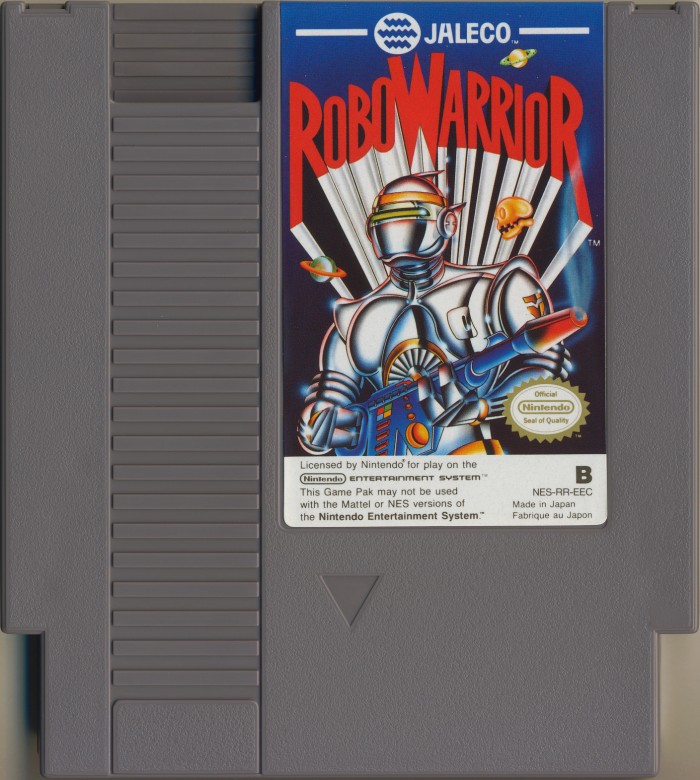

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-RR-EEC |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 23 |
PCB Properties
| Name | NES-UNROM-08 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8931 - 8934 (3) |
| Est First Run | August 1989 |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-RR-0 PRG | 128 KB | 99A28276 | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2307 8Y | Mask ROM 128 KB | DIP-28 | 8934 E | 8934 | |
| U2 CHR RAM | Sony | CXK5864PS-15L | SRAM 8 KB | DIP-28 | 9R 113Y | 8922 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 8919 A | 8919 | |
| U4 HC161 | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 922 EN | 8922 | |
| U5 HC32 | Toshiba | 74HC32AP | 74-32 Series | DIP-14 | 8823 H | 8823 |
