Release Info
| Catalog ID | NAM-NPM-4500-02 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | November 2, 1984 |
| Publisher | Namco |
| Developer | Namco |
| Players | 2 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

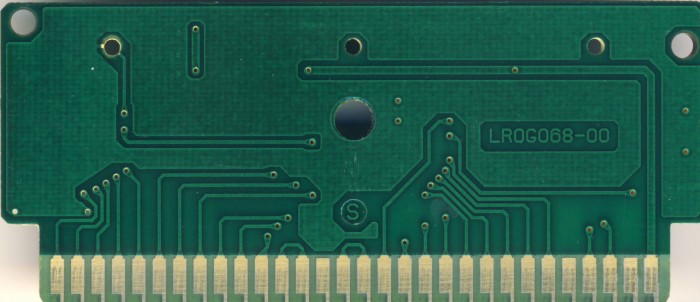

PCB Properties
| Name | LROG068-00 |
|---|---|
| PCB Producer | |
| Manufacturer | Sharp |
| Mfg Range | 8442 - 9122 (4) |
| Est First Run | October 1984 |
| PCB Class | NAMCOT-NROM-128 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 16 KB | B6214FA9 | 1 |
| CHR0 | Not Present | 8 KB | 49ABEEE6 | 7 |
| N/A | ROMs Combined | 24 KB | 2C7D68F3 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PCB | Sharp | LROG071 PM | Chip-on-Board PCB | PCB | 9122 7 | 9122 | |
| __Unknown | EP128 | Bonded ROM 16 KB | EPOXY | ||||
| __Unknown | EP64 | Bonded ROM 8 KB | EPOXY |
