Release Info
| Catalog ID | NES-WW-EEC |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed |
| Release Date | January 17, 1990 |
| Publisher | Acclaim |
| Developer | Rare |
| Players | 1 |
| Peripherals | NES Controller |

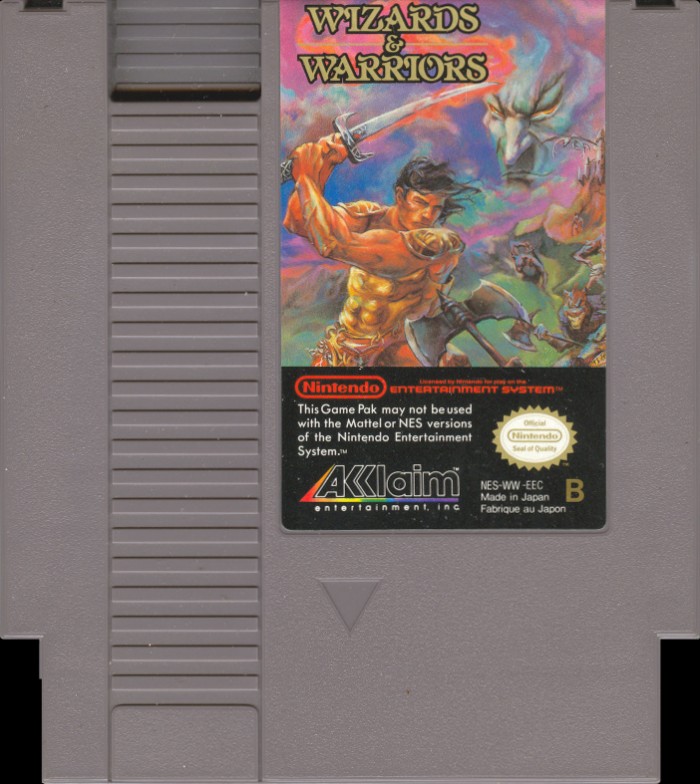

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-WW-EEC |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 08 |
PCB Properties
| Name | NES-ANROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8942 - 8942 (6) |
| Est First Run | October 1989 |
| PCB Class | NES-ANROM |
| iNES Mapper | 7 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx02, 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-WW-0 PRG | 128 KB | 5E6D9975 | 6 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP231024D 1832 | Mask ROM 128 KB | DIP-28 | 9K2 53 | 8941 | |
| U2 CHR RAM | Hitachi | HM6264LP-10 | SRAM 8 KB | DIP-28 | 8911 | 8911 | |
| U3 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 8942 A | 8942 | |
| U4 HC161 | GoldStar | GD74HC161 | 74-161 Series | DIP-16 | I23 | 8923 | |
| U5 HC02 | Texas Instruments | SN74HC02N | 74-02 Series | DIP-14 | 926 GN | 8926 |
