Release Info
| Catalog ID | NES-VU-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | October 1990 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller |

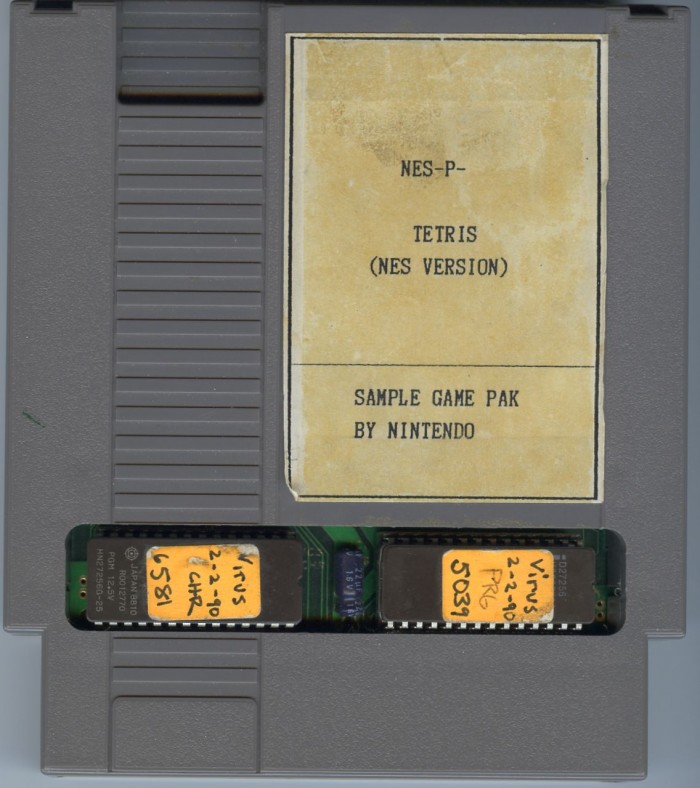

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |

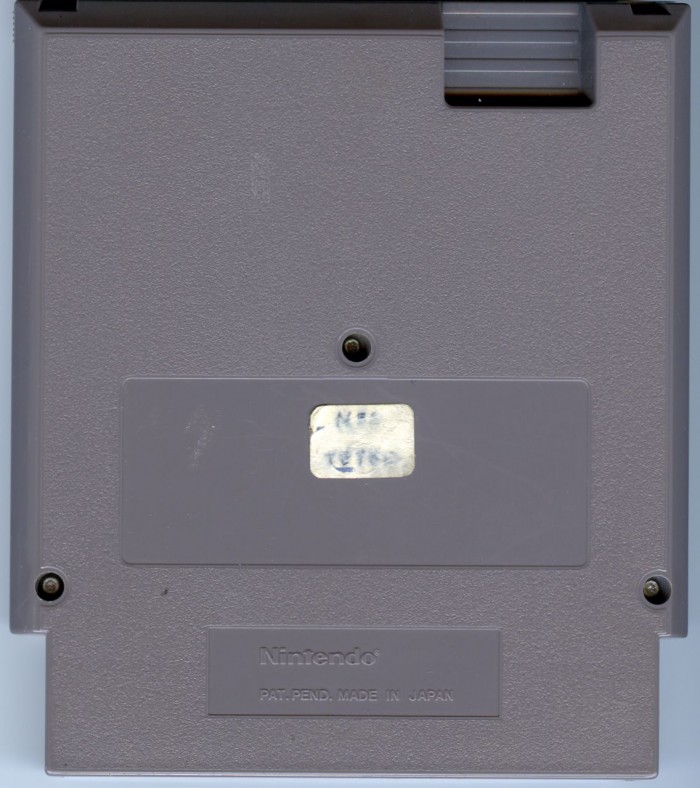

| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

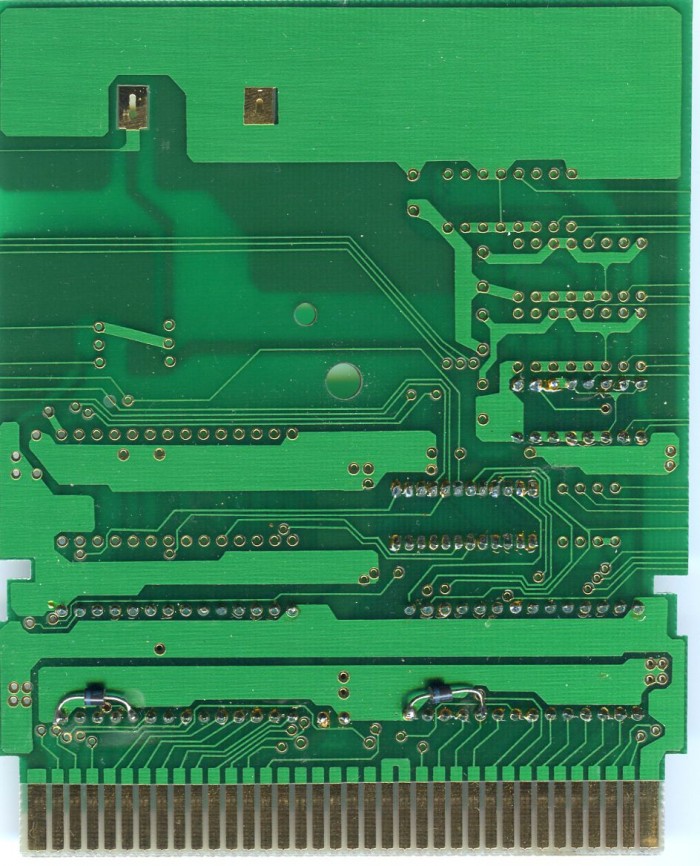

PCB Properties
| Name | NES-SIEPROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | |
| Est First Run | |
| PCB Class | NES-SIEPROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | VIRUS 2-2-90 PRG 5039 | 32 KB | 14F7B86C | 1 |
| CHR0 | VIRUS 2-2-90 CHR 6581 | 16 KB | D06589FE | 1 |
| N/A | ROMs Combined | 48 KB | 5EDEC8CD | 1 |

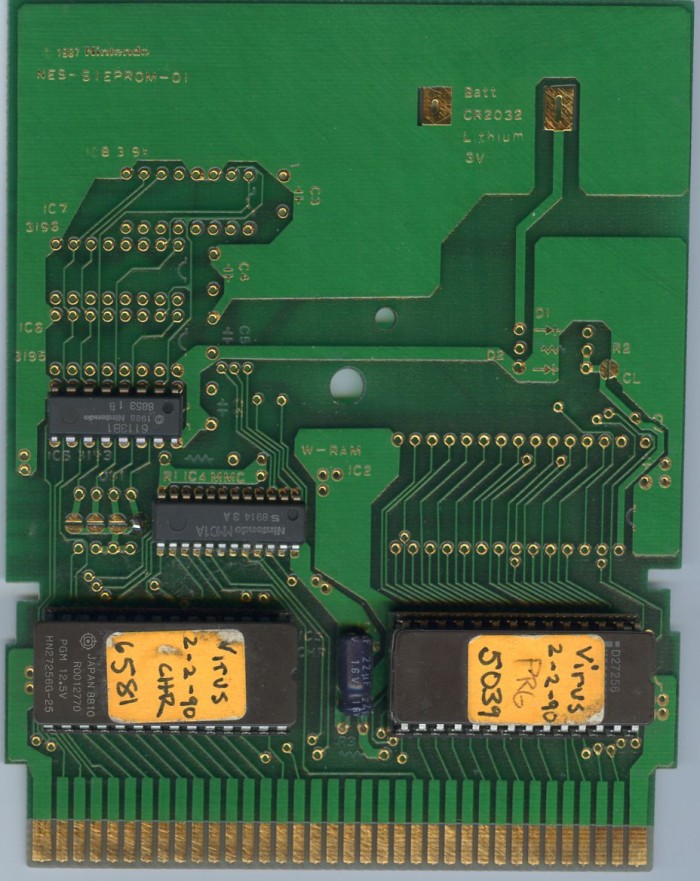

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 PRG | Intel | D27256 | UV EPROM 32 KB | DIP-28 | |||
| IC3 CHR | Hitachi | HN27256G-25 | UV EPROM 32 KB | DIP-28 | 8810 | 8810 | |
| IC4 MMC | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8914 3 A | 8914 | |
| IC5 3193 | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8853 1 B | 8853 |
