Release Info
| Catalog ID | WAV-Q6-11 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | February 15, 1991 |
| Publisher | A Wave |
| Developer | Artech |
| Players | 1 |
| Peripherals | Famicom Controller |

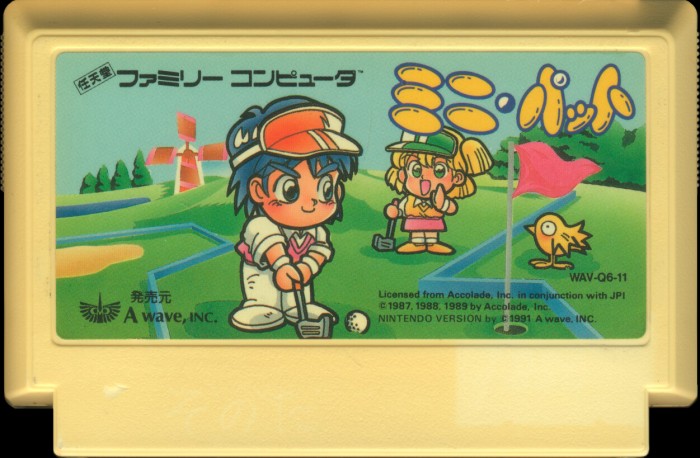

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | WAV-Q6-11 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

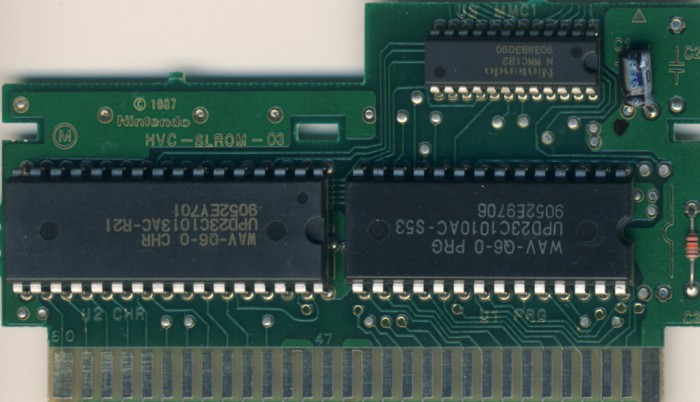

PCB Properties
| Name | HVC-SLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9052 |
| Est First Run | December 1990 |
| PCB Class | HVC-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | WAV-Q6-0 PRG | 128 KB | 06E97649 | 1 |
| CHR0 | WAV-Q6-0 CHR | 128 KB | 2922FBC4 | 1 |
| N/A | ROMs Combined | 256 KB | 6439F53A | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1010AC S53 | Mask ROM 128 KB | DIP-28 | 9052 E9706 | 9052 | |
| U2 CHR | NEC | UPD23C1013AC R21 | Mask ROM 128 KB | DIP-32 | 9052 EY701 | 9052 | |
| U3 MMC1 | NEC | MMC1B2 | Nintendo MMC1 | DIP-24 | 9038 B3090 | 9038 |
