Release Info
| Catalog ID | TFC-FP-3900-29 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 15, 1989 |
| Publisher | Taito |
| Developer | Taito |
| Players | 1 |
| Peripherals | Famicom Controller |

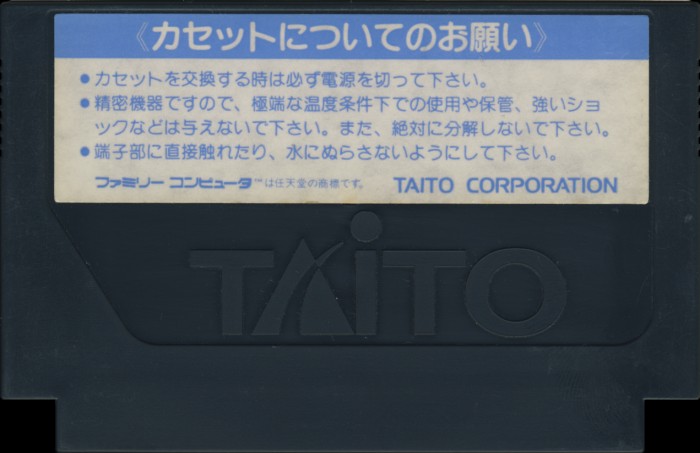

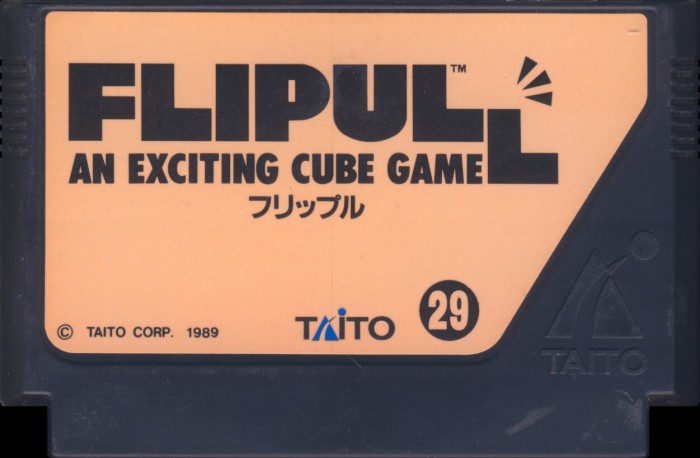

Cart Properties
| Cart Producer | Taito |
|---|---|
| Color | Black |
| Form Factor | Beveled Label / Logo 3 |
| Embossed Text | |
| Front Label ID | Yellow Version |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

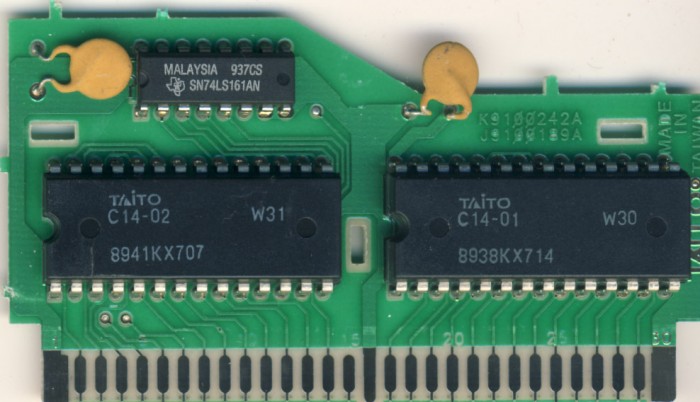

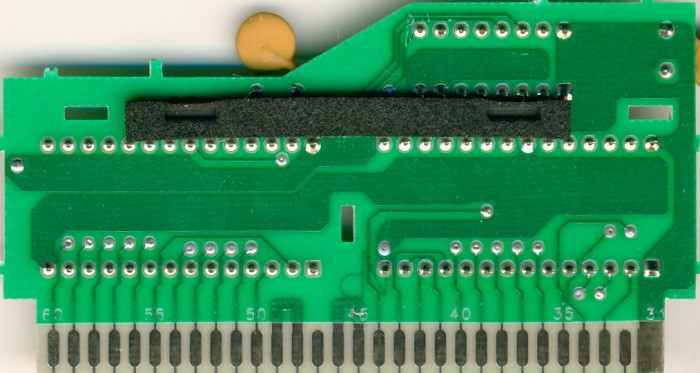

PCB Properties
| Name | J9100189A |
|---|---|
| PCB Producer | Taito |
| Manufacturer | Not Specified |
| Mfg Range | 8939 - 8941 (3) |
| Est First Run | September 1989 |
| PCB Class | TAITO-CNROM |
| iNES Mapper | 3 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | C14-02 | 32 KB | 3DE19B75 | 1 |
| CHR0 | C14-01 | 32 KB | E90ED472 | 3 |
| N/A | ROMs Combined | 64 KB | 69FEECB2 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 | Texas Instruments | SN74LS161AN | 74-161 Series | DIP-16 | 937 CS | 8937 | |
| IC2 | NEC | UPD23C256 | Mask ROM 32 KB | DIP-28 | 8941 KX707 | 8941 | |
| IC3 | NEC | UPD23C256 | Mask ROM 32 KB | DIP-28 | 8938 KX714 | 8938 |
