Release Info
| Catalog ID | KON-RC800LE |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | June 21, 1985 |
| Publisher | Konami |
| Developer | Konami |
| Players | 2 |
| Peripherals | Konami HyperShot,Famicom Controller |

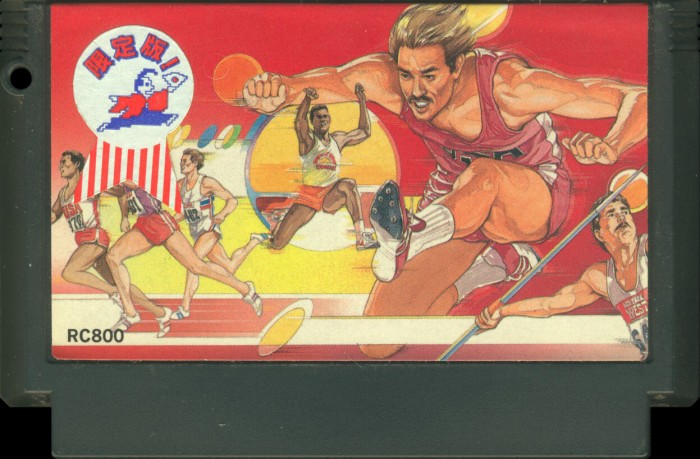

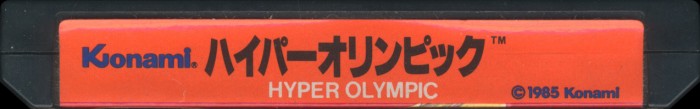

Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | RC800 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

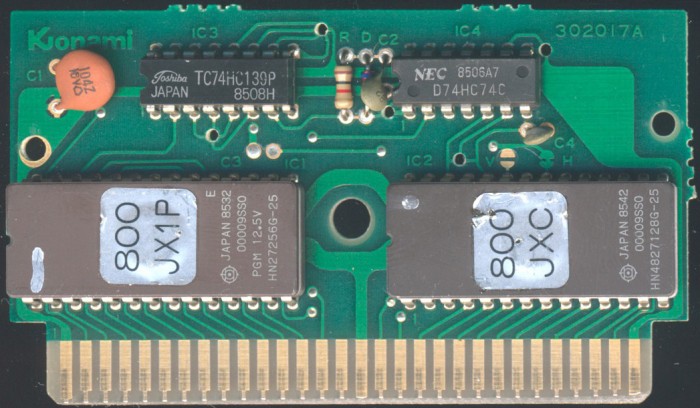

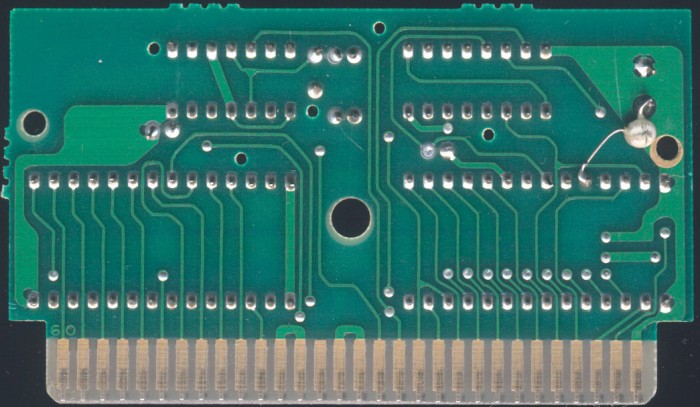

PCB Properties
| Name | 302017A |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 8542 |
| Est First Run | October 1985 |
| PCB Class | KONAMI-74*139/74 |
| iNES Mapper | 87 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx139, 74xx74 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | 800JX1P | 32 KB | DB9418E8 | 1 |
| CHR0 | 800JXC | 16 KB | FFC4EEDE | 1 |
| N/A | ROMs Combined | 48 KB | 21F85681 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 | Hitachi | HN27256G-25 | UV EPROM 32 KB | DIP-28 | 8532 | 8532 | 00009SS0 |
| IC2 | Hitachi | HN4827128G-25 | UV EPROM 16 KB | DIP-28 | 8542 | 8542 | 00009SS0 |
| IC3 | Toshiba | TC74HC139P | 74-139 Series | DIP-16 | 8508 H | 8508 | |
| IC4 | NEC | D74HC74C | 74-74 Series | DIP-14 | 8506 A7 | 8506 |
