Release Info
| Catalog ID | NES-W2-UKV |
|---|---|
| Region | United Kingdom (PAL-A) |
| Class | Licensed |
| Release Date | 1990 |
| Publisher | Acclaim |
| Developer | Technos |
| Players | 2 |
| Peripherals | NES Controller |

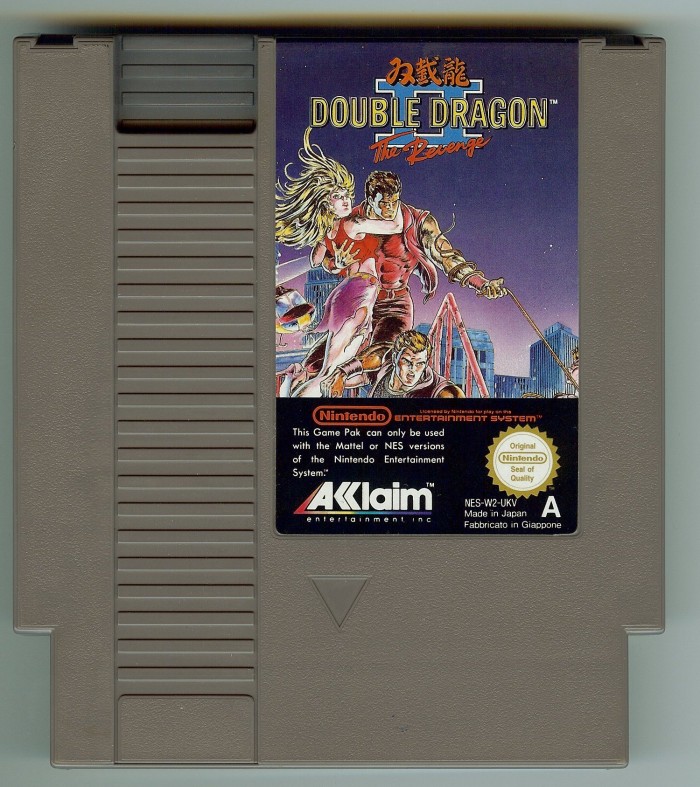

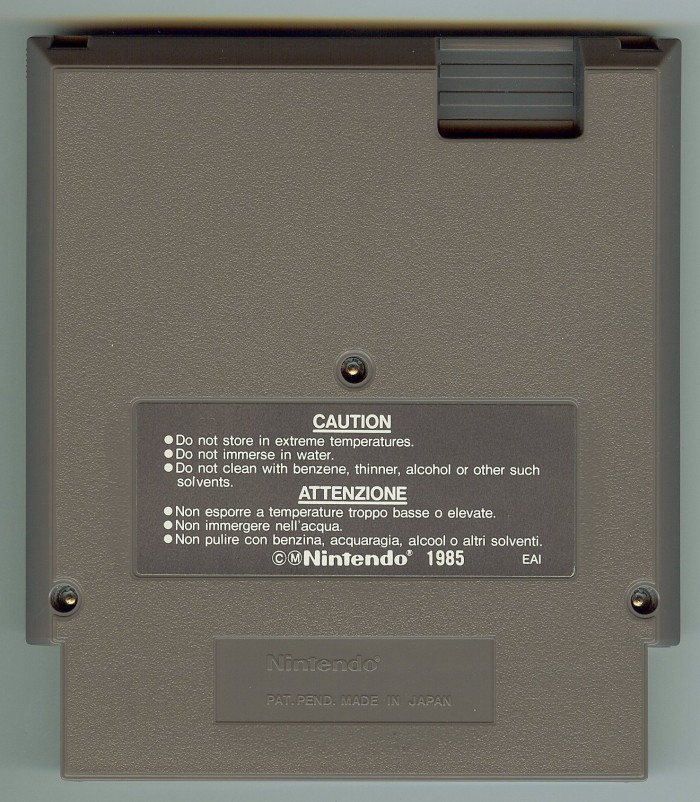

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-W2-UKV |
| Seal of Quality | PAL: Round (Original) |
| MfgString Present | Yes |
| 2-digit Code | 20 |

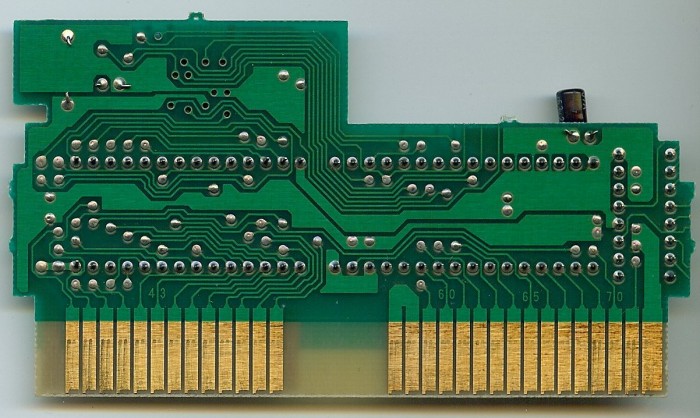

PCB Properties
| Name | NES-TLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9034 |
| Est First Run | August 1990 |
| PCB Class | NES-TLROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3197A |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-W2-0 PRG | 128 KB | 9ED831E7 | 5 |
| CHR0 | NES-W2-0 CHR | 128 KB | E0B9A5FF | 8 |
| N/A | ROMs Combined | 256 KB | AEB2D754 | 5 |

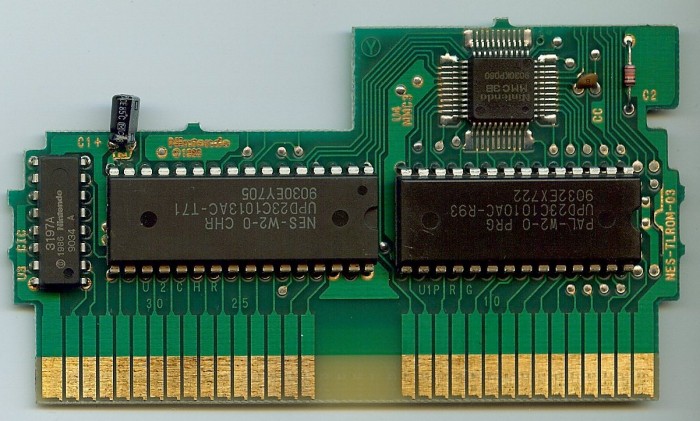

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1010AC R93 | Mask ROM 128 KB | DIP-28 | 9032 EX722 | 9032 | |
| U2 CHR | NEC | UPD23C1013AC T71 | Mask ROM 128 KB | DIP-32 | 9030 EY705 | 9030 | |
| U3 CIC | Sharp | 3197A | Nintendo CIC | DIP-16 | 9034 A | 9034 | |
| U4 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9030 KP060 | 9030 |
