Release Info
| Catalog ID | UNR-8M-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed » Unreleased |
| Release Date | |
| Publisher | Sunsoft |
| Developer | Sunsoft |
| Players | 1 |
| Peripherals | NES Controller |

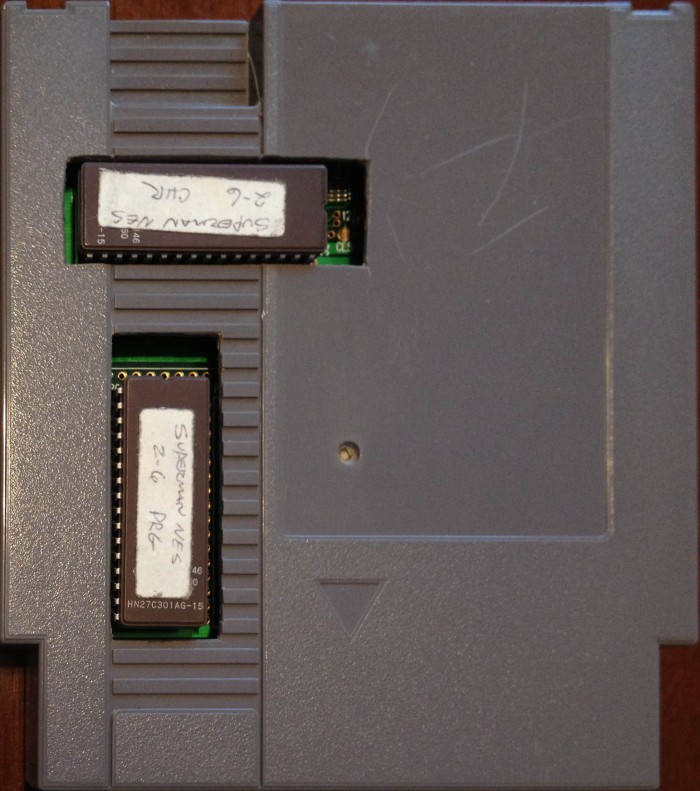

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

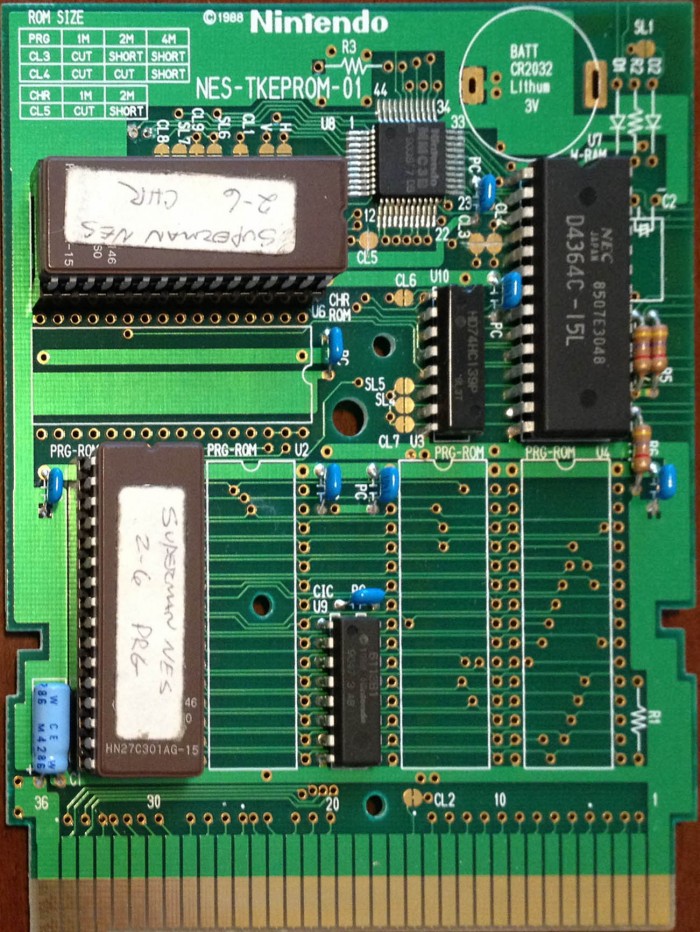

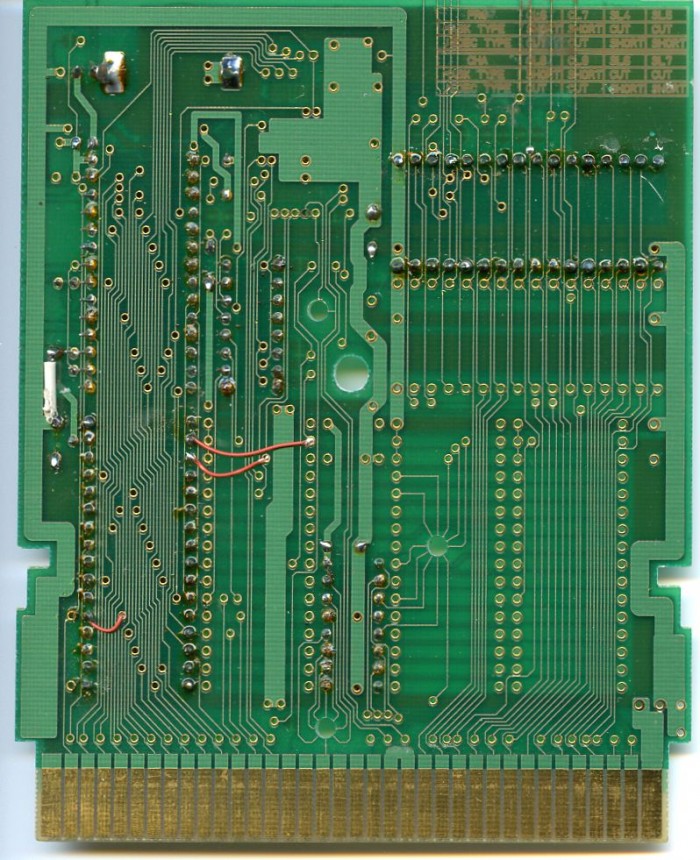

PCB Properties
| Name | NES-TKEPROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | |
| Est First Run | |
| PCB Class | NES-TKEPROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx139, MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SUPERMAN NES 2-6 PRG | 128 KB | EF9D9C0C | 1 |
| CHR0 | SUPERMAN NES 2-6 CHR | 128 KB | 7A00D195 | 1 |
| N/A | ROMs Combined | 256 KB | 47F7F860 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG-ROM | Hitachi | HN27C301AG-15 | UV EPROM 128 KB | DIP-32 | |||
| U10 | Hitachi | HD74HC139P | 74-139 Series | DIP-16 | 9L3 T | 8947 | |
| U5 CHR-ROM | Hitachi | HN27C301AG-15 | UV EPROM 128 KB | DIP-32 | |||
| U7 W-RAM | NEC | D4364C-15L | SRAM 8 KB | DIP-28 | 8507 E3048 | 8507 | |
| U8 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9008 7 DB | 9008 | |
| U9 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9047 3 AB | 9047 |
