Release Info
| Catalog ID | UNR-FY-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed » Unreleased |
| Release Date | |
| Publisher | Square |
| Developer | Square |
| Players | 1 |
| Peripherals | NES Controller |

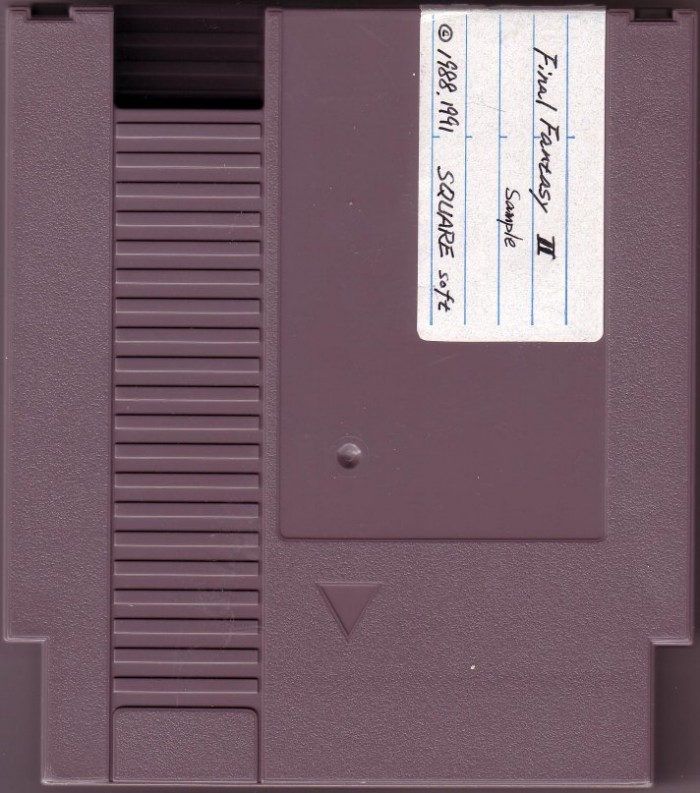

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

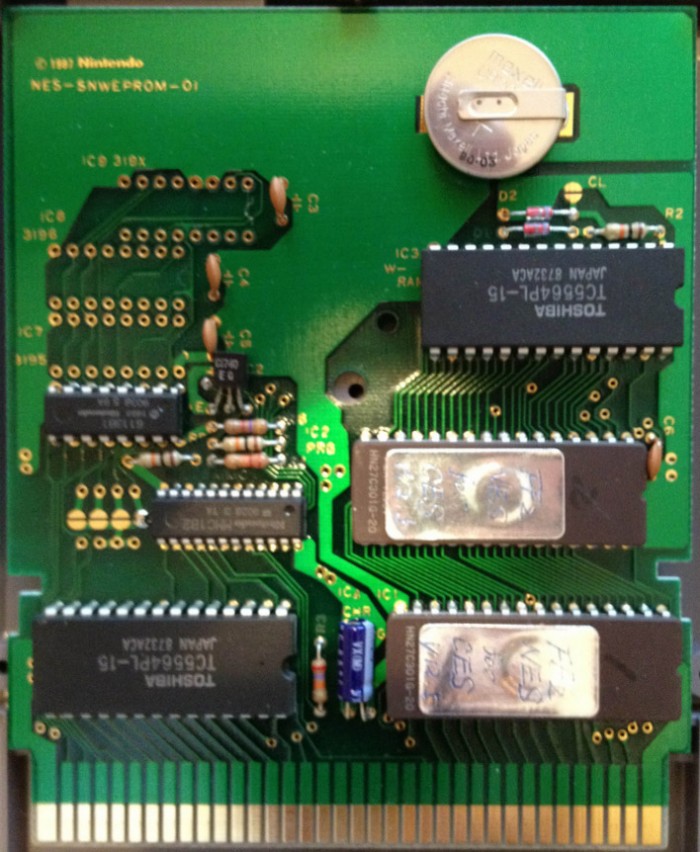

PCB Properties
| Name | NES-SNWEPROM |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | |
| Est First Run | |
| PCB Class | NES-SNWEPROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | FF2 NES FOR CES V12.5 (1) | 128 KB | BDF606C3 | 1 |
| PRG1 | FF2 NES FOR CES V12.5 (2) | 128 KB | F12C6CBB | 1 |
| N/A | ROMs Combined | 256 KB | 93A2EEFB | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 PRG | Hitachi | HN27C301G-20 | UV EPROM 128 KB | DIP-32 | |||
| IC2 PRG | Hitachi | HN27C301G-20 | UV EPROM 128 KB | DIP-32 | |||
| IC3 W-RAM | Toshiba | TC5564PL-15 | SRAM 8 KB | DIP-28 | 8732 ACA | 8732 | |
| IC4 CHR | Toshiba | TC5564PL-15 | SRAM 8 KB | DIP-28 | 8732 ACA | 8732 | |
| IC5 MMC | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9028 3 TA | 9028 | |
| IC6 3193 | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9036 5 BA | 9036 |
