Release Info
| Catalog ID | EPO-EY |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 15, 1989 |
| Publisher | Epoch |
| Developer | Sakata SAS |
| Players | 2 |
| Peripherals | Famicom Controller |

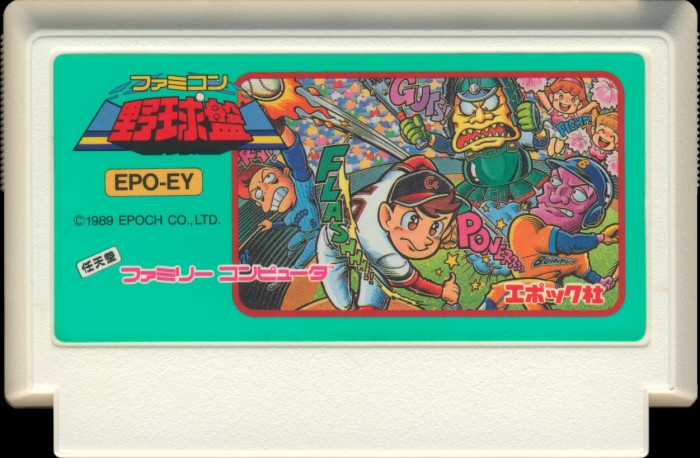

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | EPO-EY |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

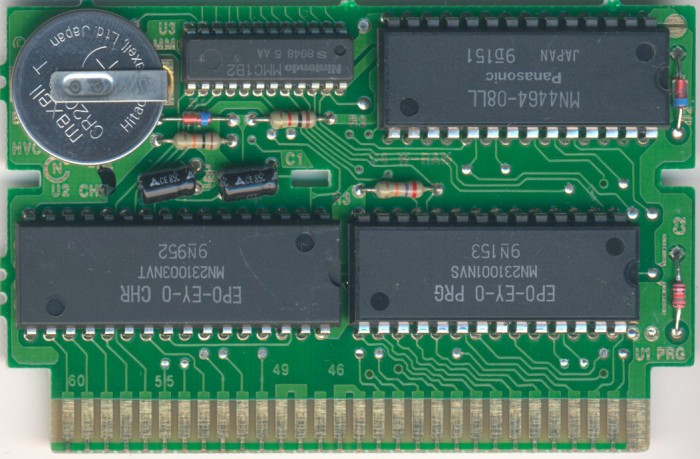

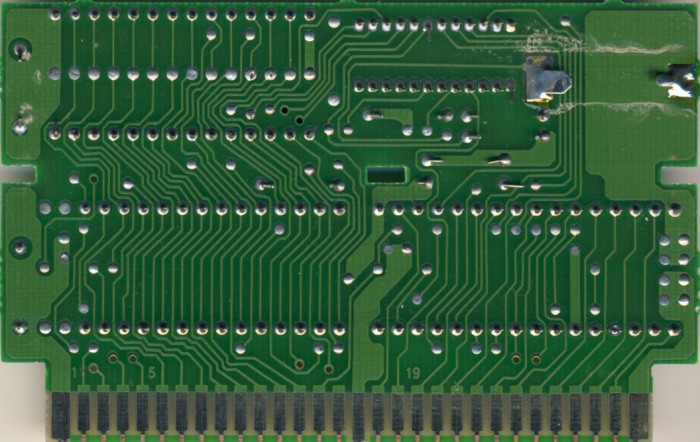

PCB Properties
| Name | HVC-SKROM-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8948 |
| Est First Run | December 1989 |
| PCB Class | HVC-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | EPO-EY-0 PRG | 128 KB | B6DC9AA7 | 1 |
| CHR0 | EPO-EY-0 CHR | 128 KB | 1B7E629E | 1 |
| N/A | ROMs Combined | 256 KB | D0A9F4E1 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Panasonic | MN231001 NVS | Mask ROM 128 KB | DIP-28 | 9 53 | 8947 | |
| U2 CHR | Panasonic | MN231003 NVT | Mask ROM 128 KB | DIP-32 | 9 52 | 8948 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 8948 5 AA | 8948 | |
| U4 W-RAM | Panasonic | MN4464-08LL | SRAM 8 KB | DIP-28 | 9 51 | 8948 |
