Release Info
| Catalog ID | SHI-LT |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | November 10, 1990 |
| Publisher | Yutaka |
| Developer | Brain Grey |
| Players | 1 |
| Peripherals | Famicom Controller |

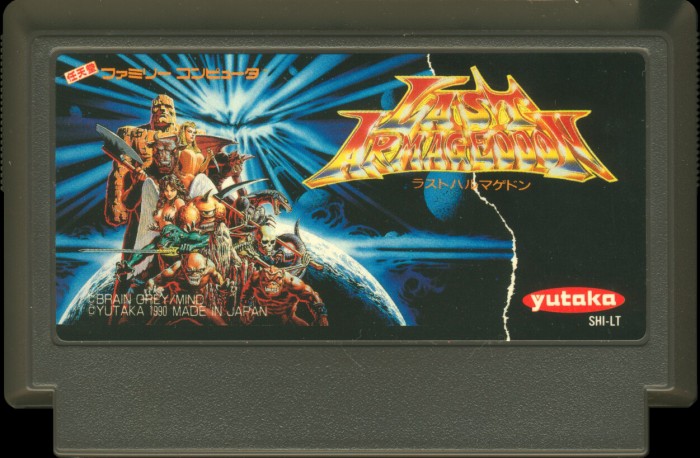

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Dark Brown |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | SHI-LT |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |
PCB Properties
| Name | HVC-TNROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9038 |
| Est First Run | September 1990 |
| PCB Class | HVC-TNROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 8 KB |
| CIC Type | None |
| Hardware | MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SHI-LT-0 PRG | 512 KB | 8EEF8B76 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C4013C W07 | Mask ROM 512 KB | DIP-32 | 9038 EY001 | 9038 | |
| U2 CHR-RAM | NEC | 64S20 | SRAM 8 KB | DIP-28 | 9034 M5 | 9034 | |
| U3 MMC3 | NEC | MMC3B | Nintendo MMC3 | TQFP-44 | 9017 KP014 | 9017 | |
| U4 W-RAM | Panasonic | MN4464-08LL | SRAM 8 KB | DIP-28 | 090 B1 | 9037 |
