Release Info
| Catalog ID | KSC-3S |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | March 31, 1989 |
| Publisher | Kemco |
| Developer | Icom Simulations |
| Players | 1 |
| Peripherals | Famicom Controller |

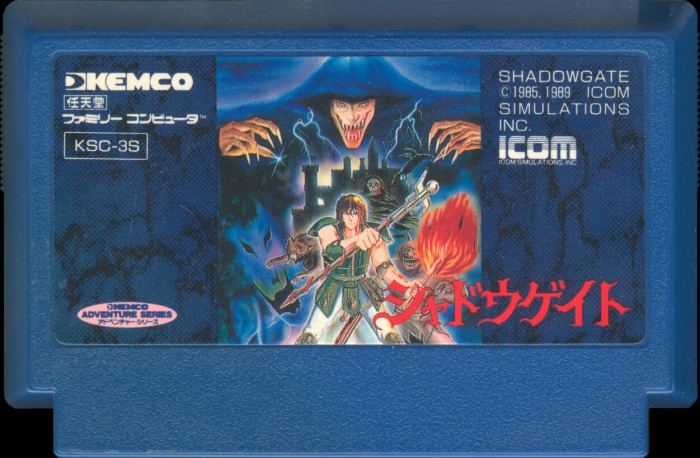

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Dark Blue |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | KSC-3S |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 05 |

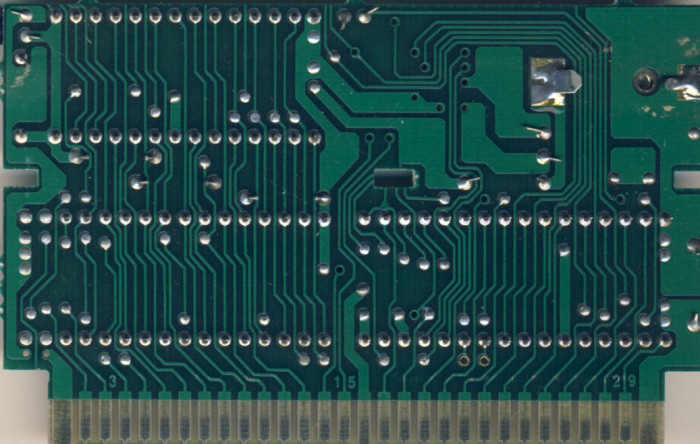

PCB Properties
| Name | HVC-TKROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8912 |
| Est First Run | March 1989 |
| PCB Class | HVC-TKROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KSC-3S-0 PRG | 128 KB | 6B403C04 | 1 |
| CHR0 | KSC-3S-0 CHR | 128 KB | 761E8444 | 1 |
| N/A | ROMs Combined | 256 KB | CF40B1C5 | 1 |

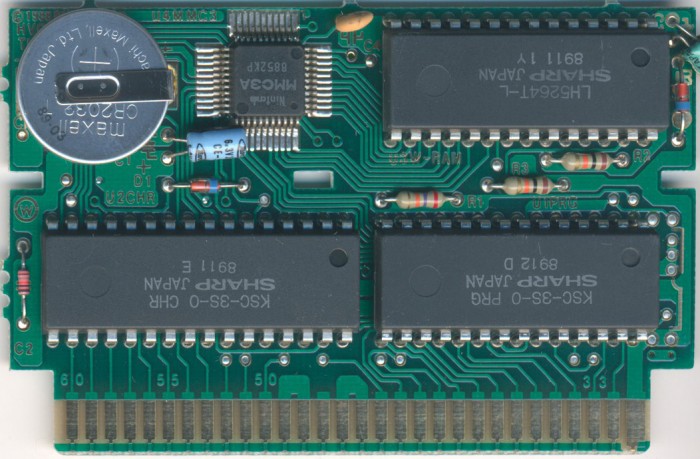

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8912 D | 8912 | |
| U2 CHR | Sharp | LH2310 | Mask ROM 128 KB | DIP-28 | 8911 E | 8911 | |
| U3 W-RAM | Sharp | LH5264T-L | SRAM 8 KB | DIP-28 | 8911 1 Y | 8911 | |
| U4 MMC3 | NEC | MMC3A | Nintendo MMC3 | TQFP-44 | 8852 KP | 8852 |
