Release Info
| Catalog ID | KSC-WE |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | July 14, 1989 |
| Publisher | Kemco |
| Developer | Kemco |
| Players | 1 |
| Peripherals | Famicom Controller |

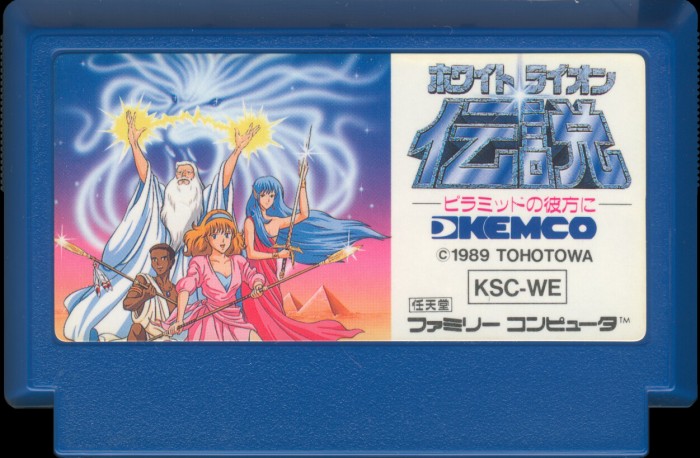

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Dark Blue |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | KSC-WE |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

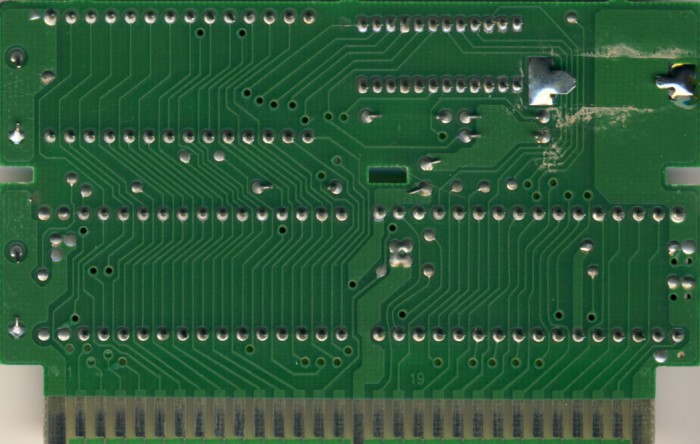

PCB Properties
| Name | HVC-SKROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8923 |
| Est First Run | June 1989 |
| PCB Class | HVC-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | KSC-WE-0 PRG | 128 KB | 0CB8D92D | 1 |
| CHR0 | KSC-WE-0 CHR | 128 KB | 0859BFDB | 1 |
| N/A | ROMs Combined | 256 KB | 850090BC | 1 |

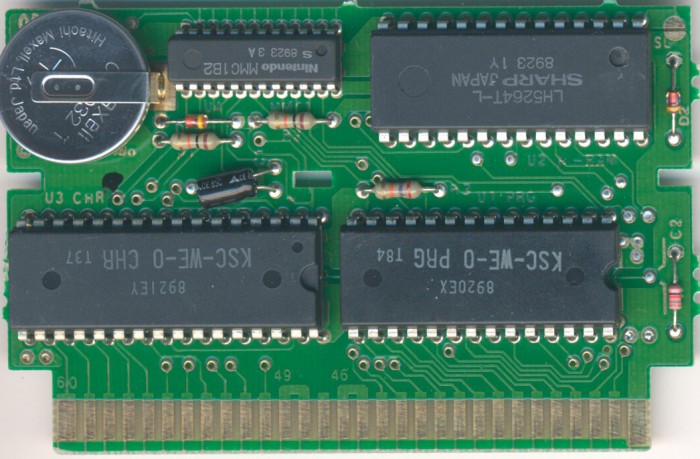

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8920 EX | 8920 | |
| U2 W-RAM | Sharp | LH5264T-L | SRAM 8 KB | DIP-28 | 8923 1 Y | 8923 | |
| U3 CHR | NEC | UPD23C1013 | Mask ROM 128 KB | DIP-32 | 8921 EY | 8921 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 8923 3 A | 8923 |
