Release Info
| Catalog ID | CTS-SY |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 1, 1993 |
| Publisher | Character Soft |
| Developer | |
| Players | 1 |
| Peripherals | Famicom Controller |
Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Light Cyan |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | CTS-SY |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 11 |

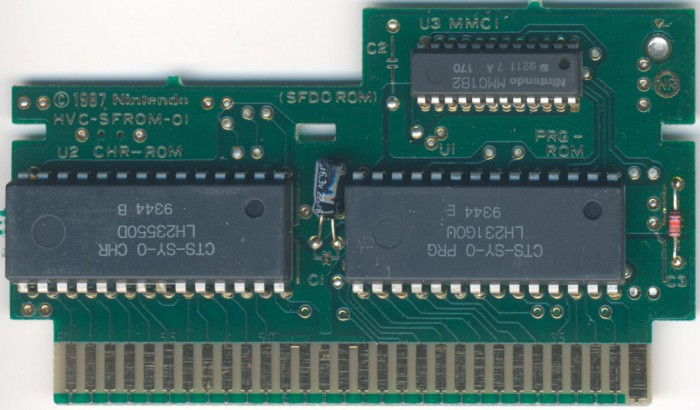

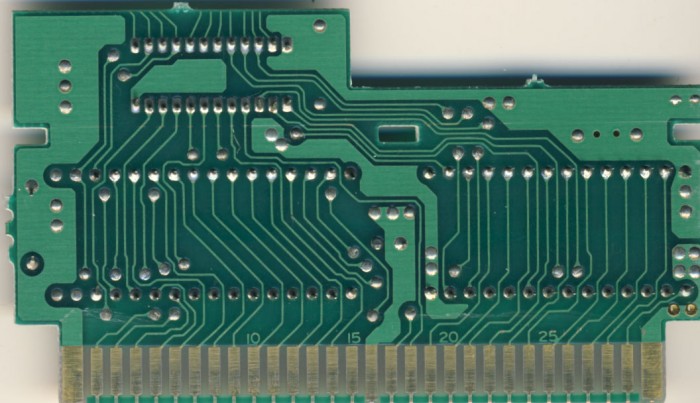

PCB Properties
| Name | HVC-SFROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9344 |
| Est First Run | November 1993 |
| PCB Class | HVC-SFROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | CTS-SY-0 PRG | 128 KB | 0C198D4F | 1 |
| CHR0 | CTS-SY-0 CHR | 32 KB | AC00A55F | 1 |
| N/A | ROMs Combined | 160 KB | 4156A3CD | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG-ROM | Sharp | LH231G 0U | Mask ROM 128 KB | DIP-28 | 9344 E | 9344 | |
| U2 CHR-ROM | Sharp | LH2355 0D | Mask ROM 32 KB | DIP-28 | 9344 B | 9344 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9211 7 A 170 | 9211 |
