Release Info
| Catalog ID | SAC-7W |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | June 28, 1991 |
| Publisher | Sammy |
| Developer | |
| Players | 2 |
| Peripherals | Famicom Controller |

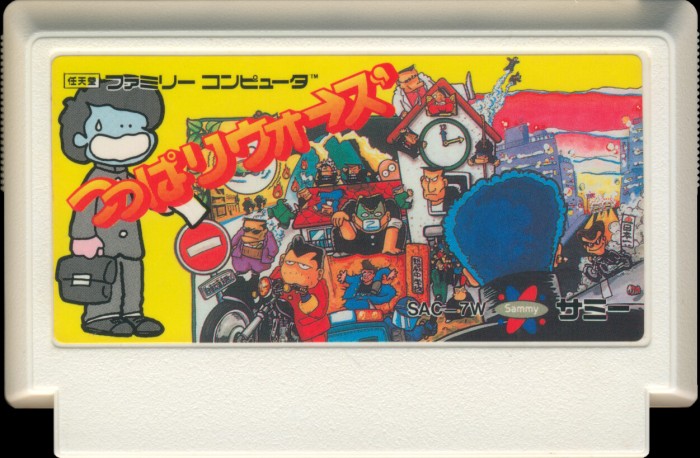

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | White |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | SAC-7W |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 19 |

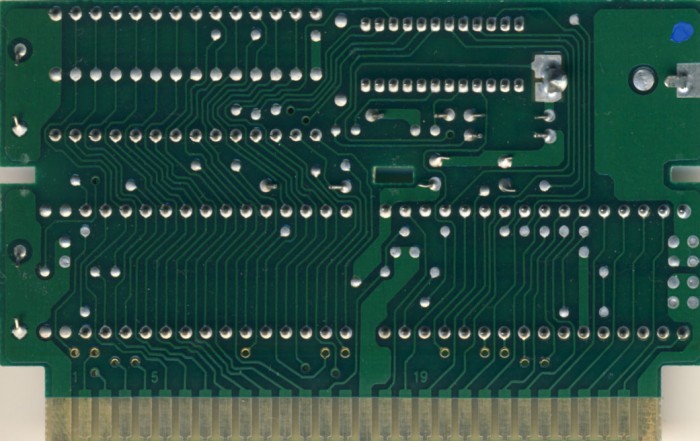

PCB Properties
| Name | HVC-SKROM-06 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9122 |
| Est First Run | June 1991 |
| PCB Class | HVC-SKROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SAC-7W-0 PRG | 128 KB | D54F5DA9 | 1 |
| CHR0 | SAC-7W-0 CHR | 128 KB | C9BAC5D2 | 1 |
| N/A | ROMs Combined | 256 KB | 972D08C5 | 1 |

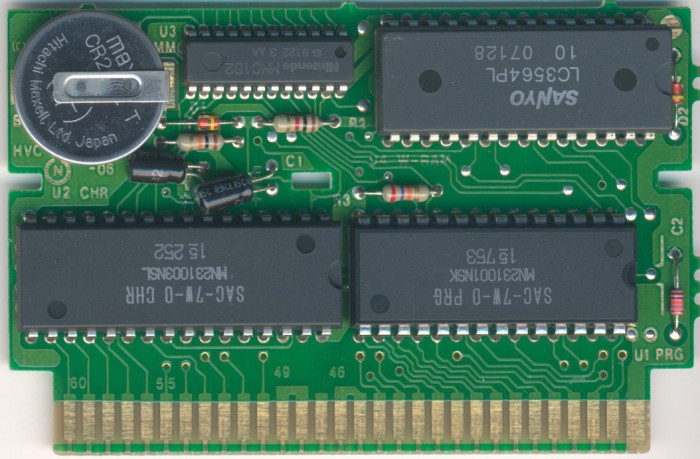

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Panasonic | MN231001 NSK | Mask ROM 128 KB | DIP-28 | 1 53 | 9122 | |
| U2 CHR | Panasonic | MN231003 NSL | Mask ROM 128 KB | DIP-32 | 1 52 | 9121 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9122 3 AA | 9122 | |
| U4 W-RAM | Sanyo | LC3564PL-10 | SRAM 8 KB | DIP-28 | 07 128 | 9027 |
