Release Info
| Catalog ID | SHI-HV |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | April 25, 1992 |
| Publisher | Yutaka |
| Developer | |
| Players | 1 |
| Peripherals | Famicom Controller |

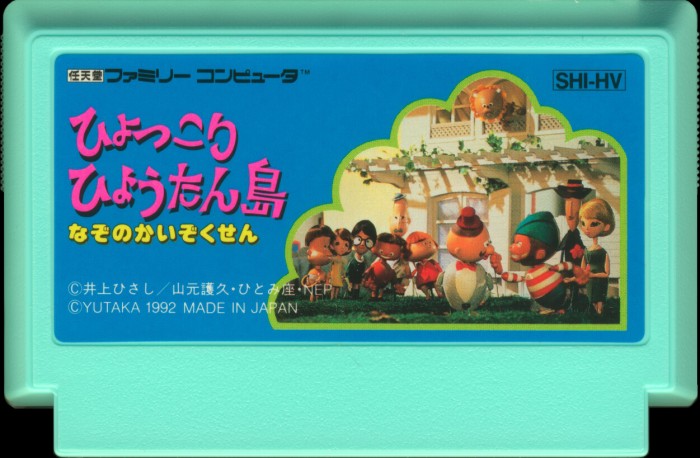

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Light Cyan |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | SHI-HV |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

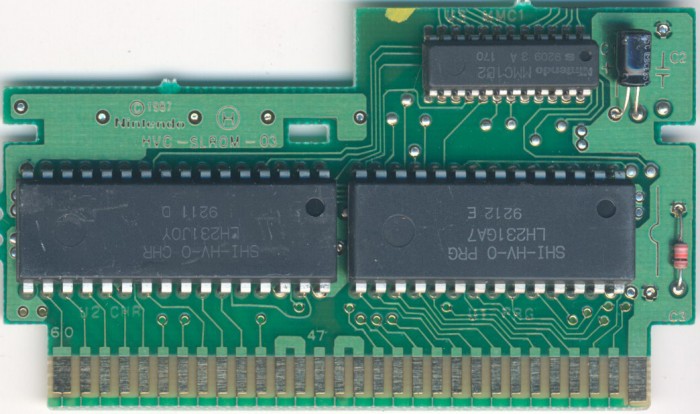

PCB Properties
| Name | HVC-SLROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9212 |
| Est First Run | March 1992 |
| PCB Class | HVC-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | SHI-HV-0 PRG | 128 KB | AF16EE39 | 1 |
| CHR0 | SHI-HV-0 CHR | 128 KB | D0599FC8 | 1 |
| N/A | ROMs Combined | 256 KB | 0B13658B | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH231G A7 | Mask ROM 128 KB | DIP-28 | 9212 E | 9212 | |
| U2 CHR | Sharp | LH231J 0Y | Mask ROM 128 KB | DIP-32 | 9211 D | 9211 | |
| U3 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9209 3 A 170 | 9209 |
