Release Info
| Catalog ID | NTC-NTF2-SYS |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed » Test Cart |
| Release Date | |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller,Zapper Light Gun,R. O. B.,Power Pad |

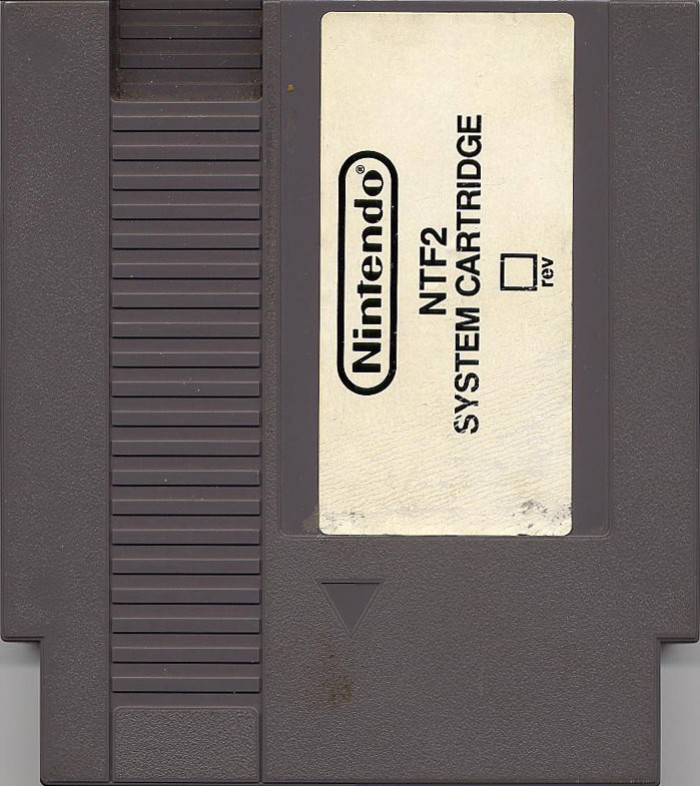

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 5-Screw |

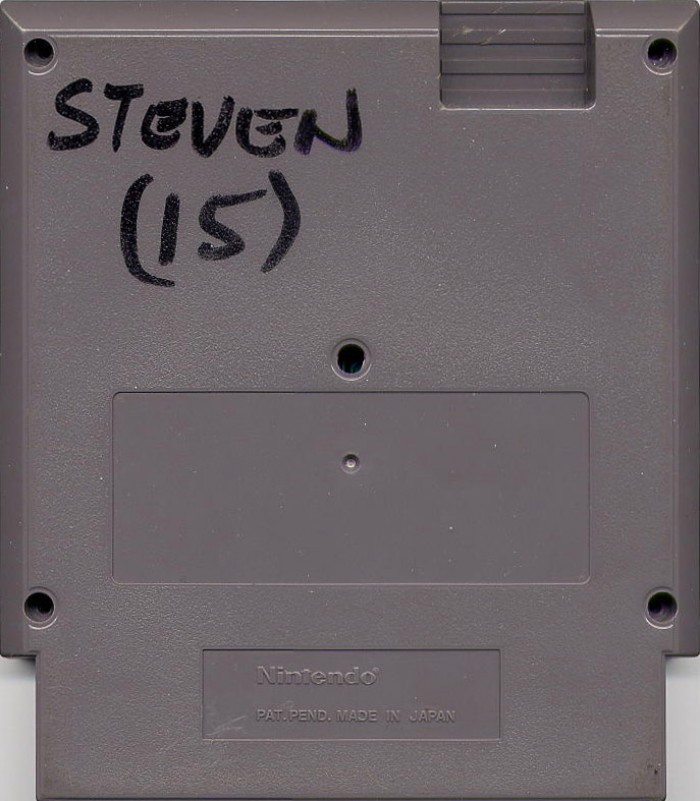

| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

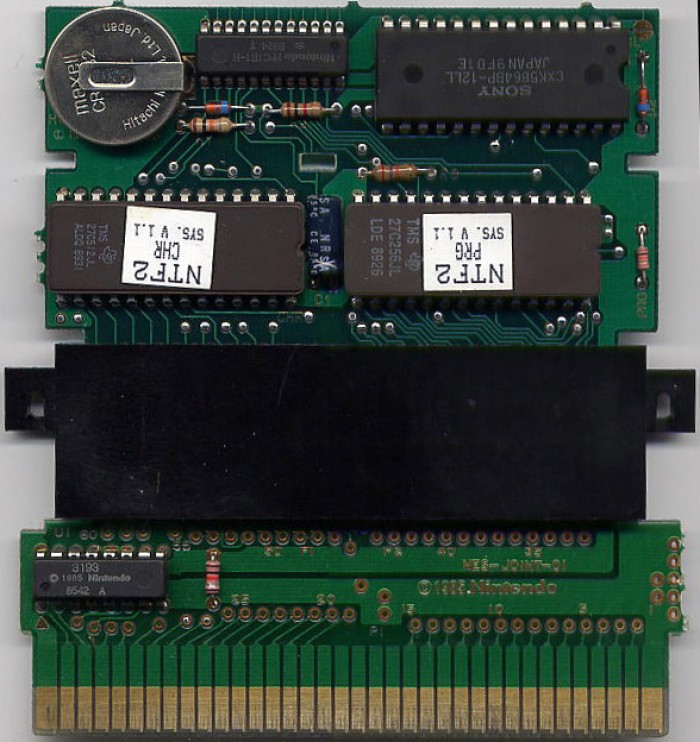

PCB Properties
| Name | HVC-SIROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8931 |
| Est First Run | August 1989 |
| PCB Class | HVC-SIROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 3193 |
| Hardware | MMC1B1-H |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NTF2 PRG SYS. V1.1 | 32 KB | AF8F7059 | 1 |
| CHR0 | NTF2 CHR SYS. V1.1 | 64 KB | 031F9622 | 1 |
| N/A | ROMs Combined | 96 KB | E149E0B2 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Texas Instruments | TMS27C256JL | UV EPROM 32 KB | DIP-28 | 8926 LDE | 8926 | |
| U1 | Sharp | 3193 | Nintendo CIC | DIP-16 | 8542 A | 8542 | |
| U2 CHR | Texas Instruments | TMS27C512JL | UV EPROM 64 KB | DIP-28 | 8931 ALDQ | 8931 | |
| U3 MMC1 | Sharp | MMC1B1-H | Nintendo MMC1 | DIP-24 | 8924 T | 8924 | |
| U4 W-RAM | Sony | CXK5864BP-12LL | SRAM 8 KB | DIP-28 | 9F 01E | 8922 |
