Release Info
| Catalog ID | NES-WB-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | December 1994 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller |
Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |

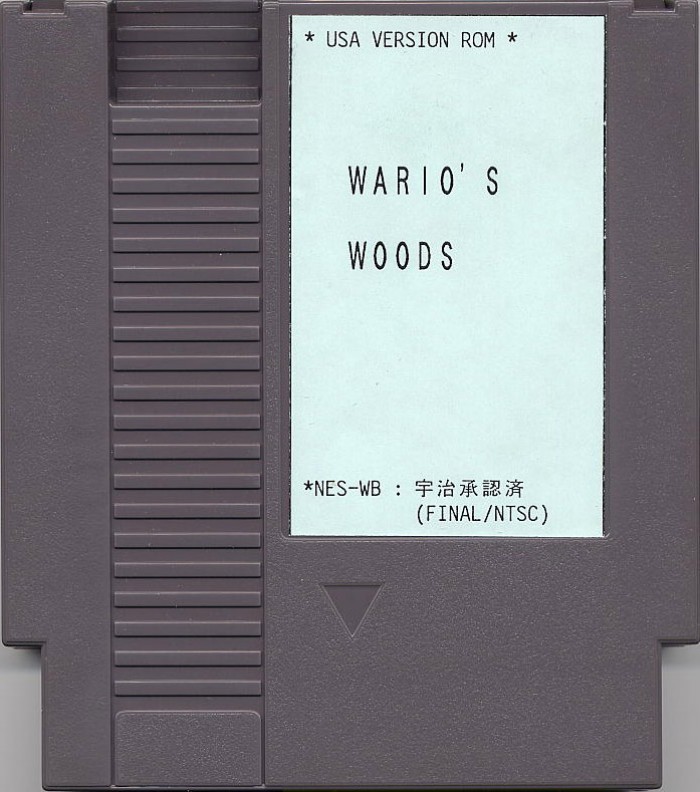

| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-WB |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |
PCB Properties
| Name | NES-TKEPROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9444 - 9444 (2) |
| Est First Run | November 1994 |
| PCB Class | NES-TKEPROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | Yes |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx139, MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-WB PRG 1 | 128 KB | F8FDE432 | 1 |
| PRG1 | NES-WB PRG 2 | 128 KB | B166F043 | 1 |
| CHR0 | NES-WB CHR 1 | 128 KB | C6CD95F9 | 1 |
| CHR1 | NES-WB CHR 2 | 128 KB | B25679E2 | 1 |
| N/A | ROMs Combined | 512 KB | F79A75D7 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG-ROM | Hitachi | HN27C301AG-12 | UV EPROM 128 KB | DIP-32 | 9436 | 9436 | 00017EE0 |
| U10 | Toshiba | 74HC139AP | 74-139 Series | DIP-16 | 9049 H | 9049 | |
| U2 PRG-ROM | Hitachi | HN27C301AG-12 | UV EPROM 128 KB | DIP-32 | 9436 | 9436 | 00017EE0 |
| U5 CHR-ROM | Hitachi | HN27C301AG-12 | UV EPROM 128 KB | DIP-32 | 9436 | 9436 | 00017EE0 |
| U6 CHR-ROM | Hitachi | HN27C301AG-12 | UV EPROM 128 KB | DIP-32 | 9436 | 9436 | 00017EE0 |
| U7 W-RAM | Sharp | LH5164D-10L | SRAM 8 KB | DIP-28 | 9122 3 DB | 9122 | |
| U8 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9206 7 T | 9206 | |
| U9 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9212 1 AB | 9212 |
