Release Info
| Catalog ID | NES-4C-UKV |
|---|---|
| Region | United Kingdom (PAL-A) |
| Class | Licensed |
| Release Date | 1992 |
| Publisher | Storm |
| Developer | Hewson |
| Players | 1 |
| Peripherals | NES Controller |
Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |
PCB Properties
| Name | NES-UNEPROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | |
| Est First Run | |
| PCB Class | NES-UNEPROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3197A |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|

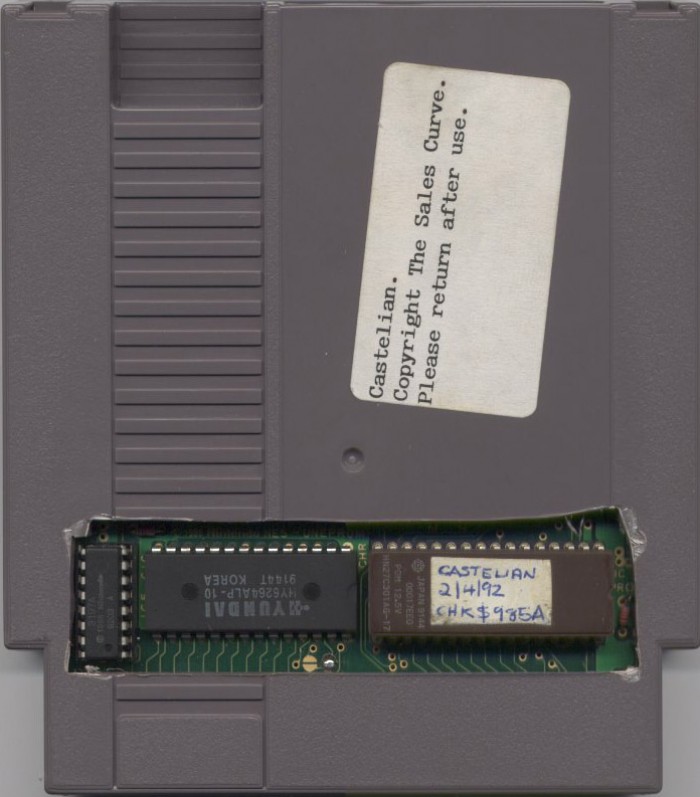

| PRG0 | CASTELIAN 2/4/92 CHK$985A | 128 KB | CF7CA9BD | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC3 LS161 | Harris | CD74HC161E | 74-161 Series | DIP-16 | 9043 H | 9043 | |
| IC5 CIC | Sharp | 3197A | Nintendo CIC | DIP-16 | 9223 A | 9223 | |
| Hitachi | HN27C301AG-17 | UV EPROM 128 KB | DIP-32 | 9144 | 9144 | 00017EE0 | |
| Hyundai | HY6264ALP-10 | SRAM 8 KB | DIP-28 | 9144 T | 9144 | ||
| LS32 | Texas Instruments | SN74HC32N | 74-32 Series | DIP-14 |
