Release Info
| Catalog ID | UNR-5Q-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed » Unreleased |
| Release Date | |
| Publisher | Jaleco |
| Developer | NMK |
| Players | 1 |
| Peripherals | NES Controller |

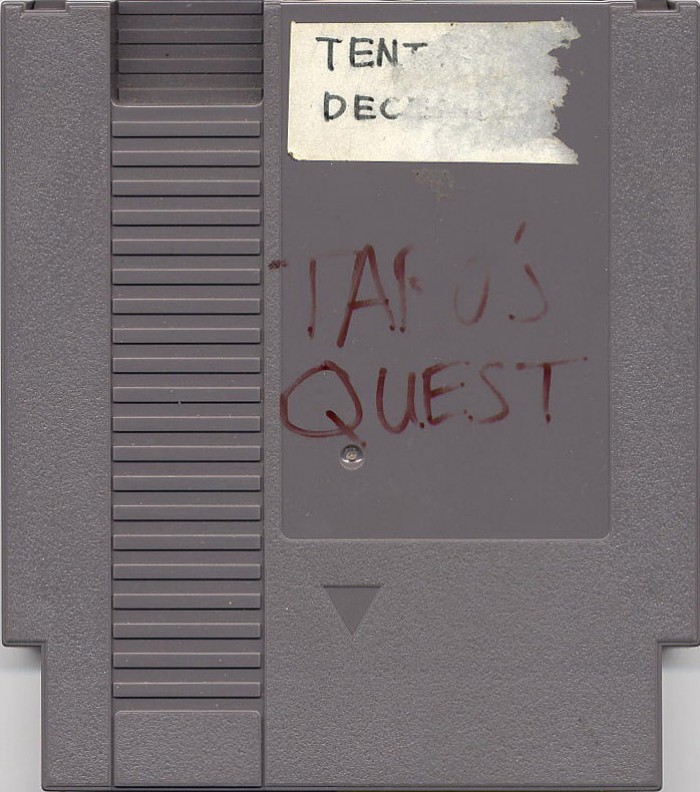

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

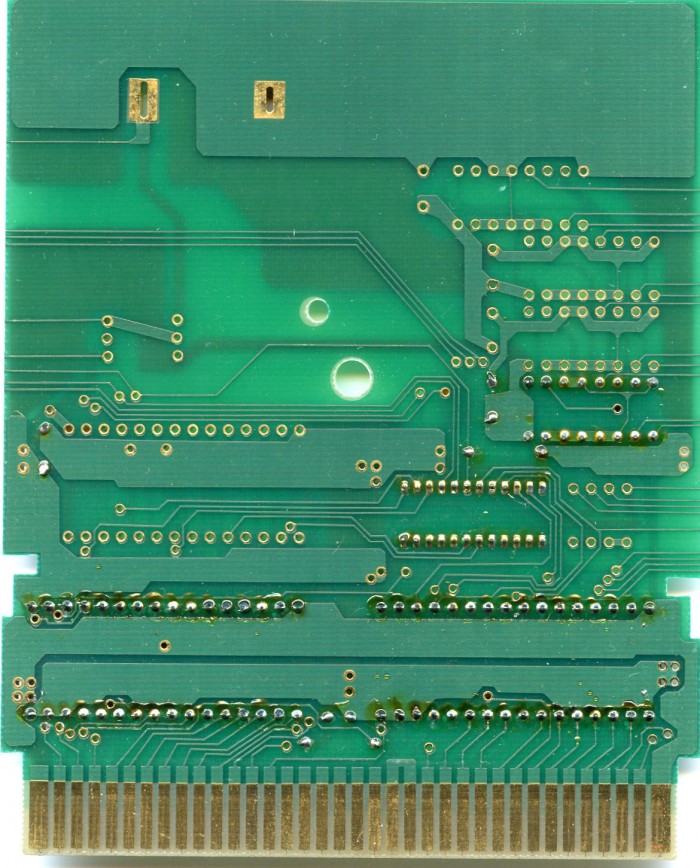

PCB Properties
| Name | NES-SKEPROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | |
| Est First Run | |
| PCB Class | NES-SKEPROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | TA.Q PRG | 128 KB | 5CC2571F | 1 |
| CHR0 | TA.Q.CHR | 128 KB | E71A0D27 | 1 |
| N/A | ROMs Combined | 256 KB | A058219D | 1 |

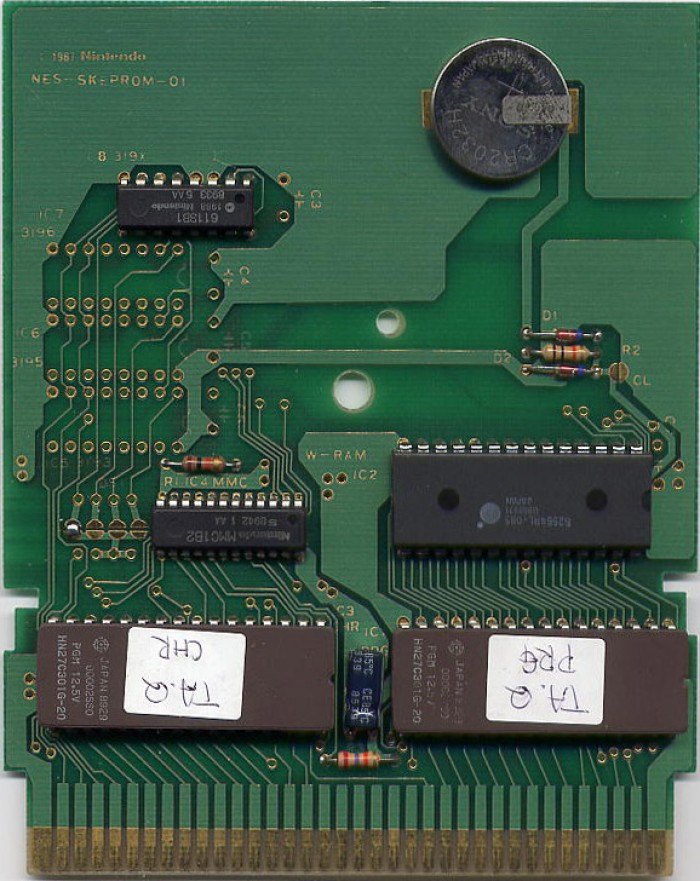

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 PRG | Hitachi | HN27C301G-20 | UV EPROM 128 KB | DIP-32 | |||
| IC2 W-RAM | Seiko Instruments | S2564RL-045 | SRAM 8 KB | DIP-28 | |||
| IC3 CHR | Hitachi | HN27C301G-20 | UV EPROM 128 KB | DIP-32 | 8928 | 8928 | 00002SS0 |
| IC4 MMC | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 8942 1 AA | 8942 | |
| IC8 319X | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8933 5 AA | 8933 |
