Release Info
| Catalog ID | NES-JS-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed » Unreleased |
| Release Date | |
| Publisher | Jaleco |
| Developer | Jaleco |
| Players | 2 |
| Peripherals | NES Controller |

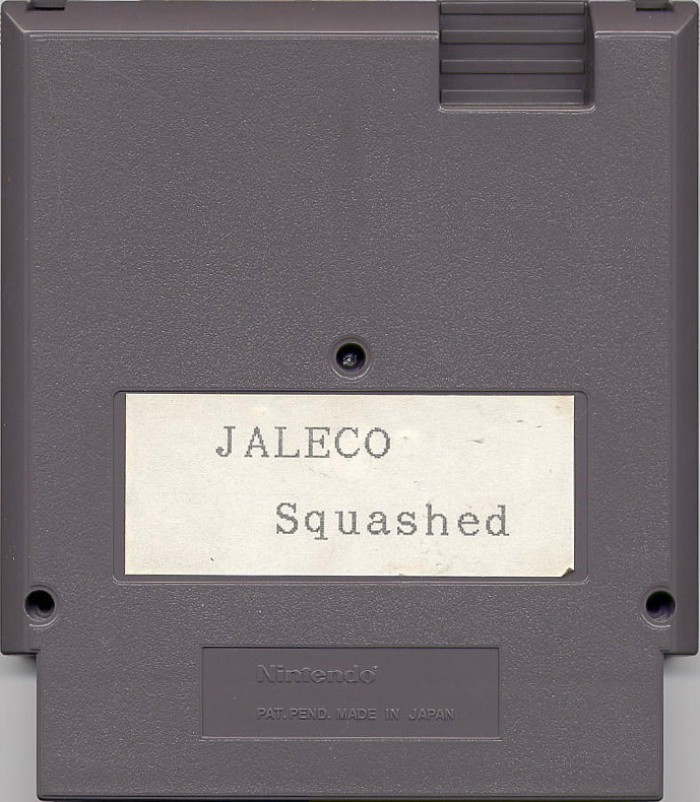

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

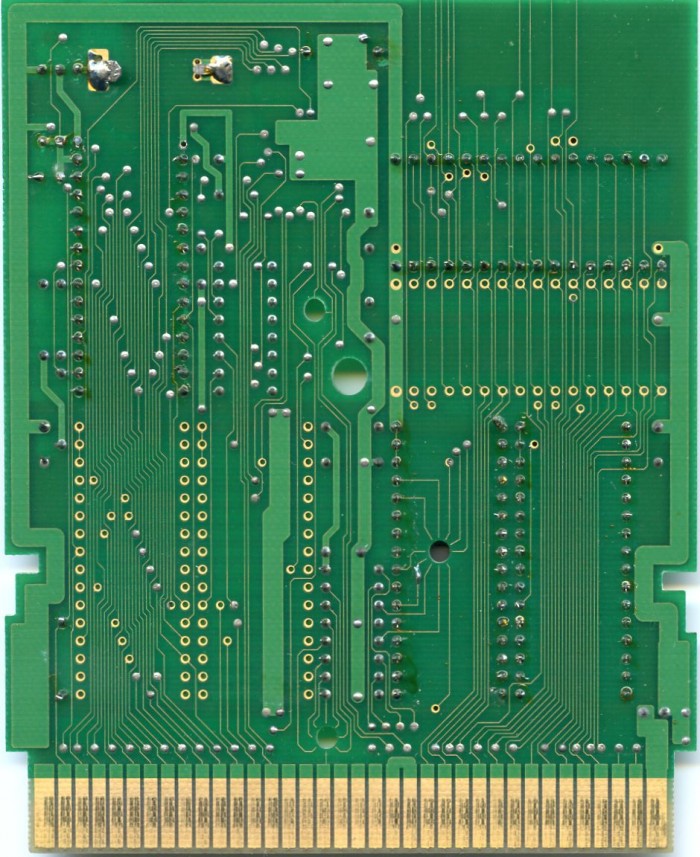

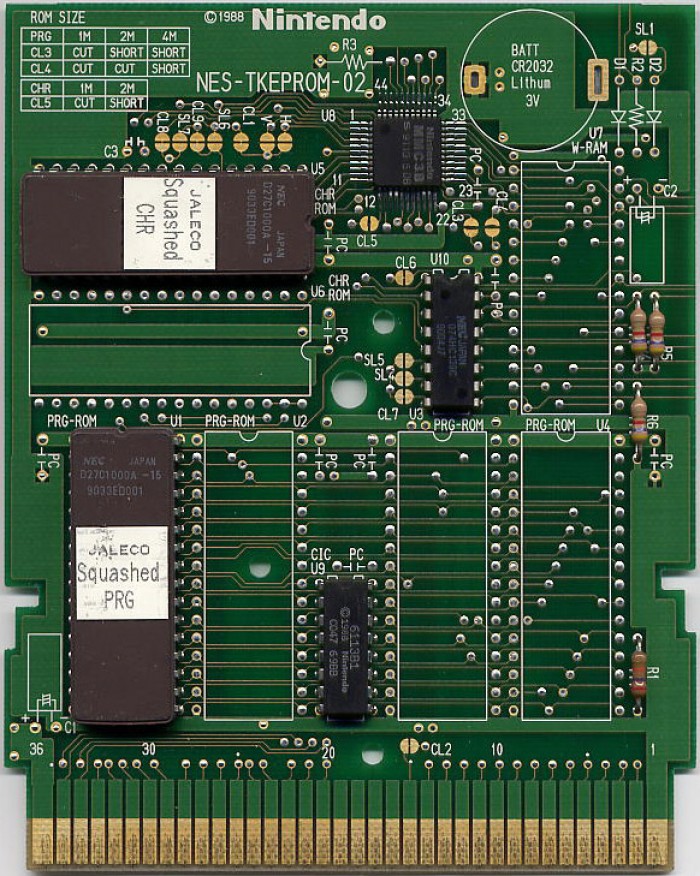

PCB Properties
| Name | NES-TKEPROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | |
| Est First Run | |
| PCB Class | NES-TKEPROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx139, MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | JALECO SQUASHED PRG | 128 KB | BF9A28E1 | 1 |
| CHR0 | JALECO SQUASHED CHR | 128 KB | 522C8C7F | 1 |
| N/A | ROMs Combined | 256 KB | F03E6D72 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG-ROM | NEC | D27C1000A-15 | UV EPROM 128 KB | DIP-32 | 9033 ED001 | 9033 | |
| U10 | NEC | D74HC139C | 74-139 Series | DIP-16 | 9004 J7 | 9004 | |
| U5 CHR-ROM | NEC | D27C1000A-15 | UV EPROM 128 KB | DIP-32 | 9033 ED001 | 9033 | |
| U8 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9113 5 DB | 9113 | |
| U9 CIC | LSI Logic | 6113B1 | Nintendo CIC | DIP-16 | 047 C | 9047 |
