Release Info
| Catalog ID | NES-LX-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | June 1990 |
| Publisher | Sony (CSG) Imagesoft |
| Developer | Software Creations |
| Players | 1 |
| Peripherals | NES Controller |

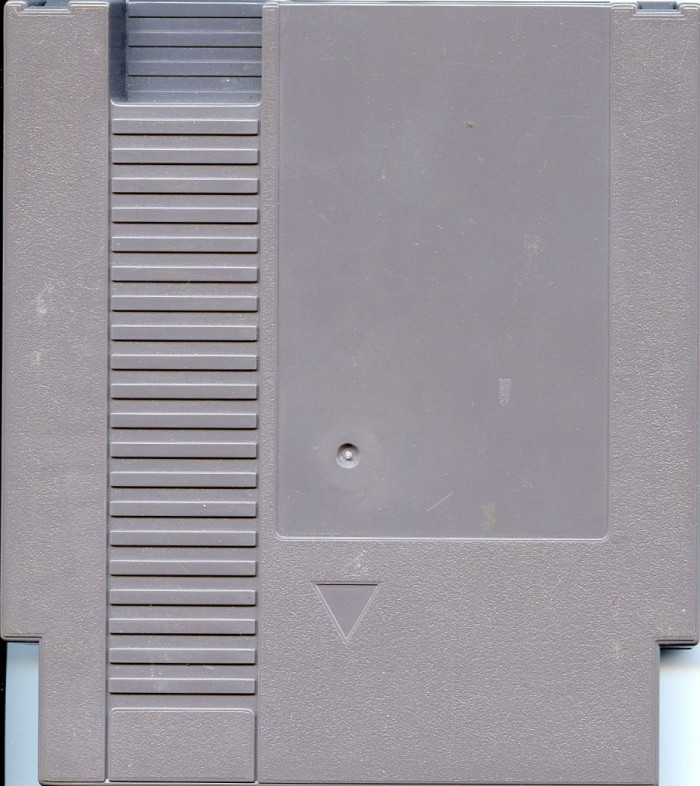

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |

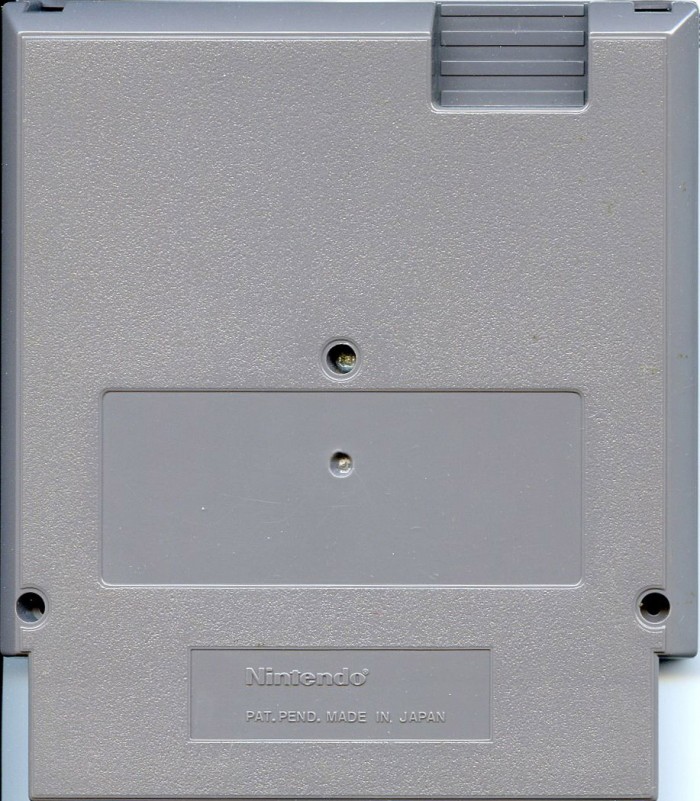

| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |
PCB Properties
| Name | NES-ANROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9019 - 9022 (3) |
| Est First Run | May 1990 |
| PCB Class | NES-ANROM |
| iNES Mapper | 7 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx02, 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 128 KB | EDCF1B71 | 5 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| AMD | AM27C010-155DC | UV EPROM 128 KB | DIP-32 | 008 XZAN | 9008 | ||
| CHR-RAM | Sharp | LH5164L-15 | SRAM 8 KB | DIP-28 | 8831 1 DA | 8831 | |
| Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8949 7 CA | 8949 | ||
| Signetics | 74LS161AN | 74-161 Series | DIP-16 | 8931 VC | 8931 | 098B568 | |
| Signetics | 74LS02N | 74-02 Series | DIP-14 | 8931 VI | 8931 | FFX0287 |
