Release Info
| Catalog ID | NES-NH-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed » Unreleased |
| Release Date | |
| Publisher | Konami |
| Developer | Source |
| Players | 1 |
| Peripherals | NES Controller |

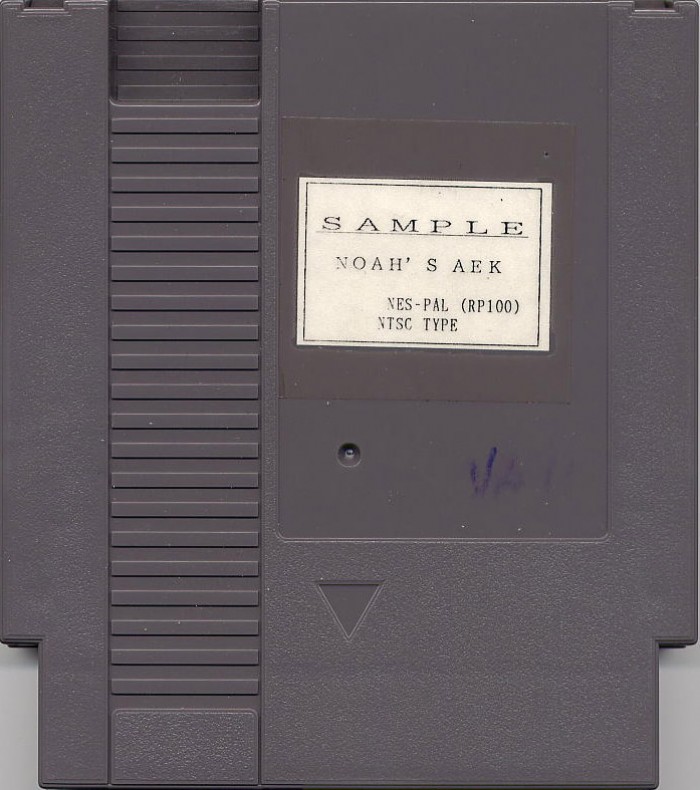

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | RP100 |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

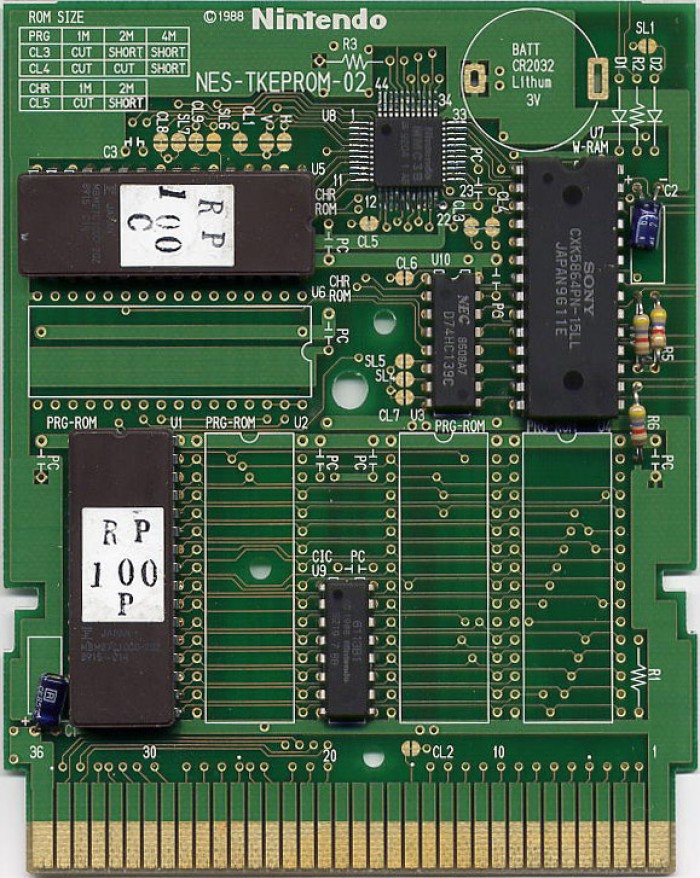

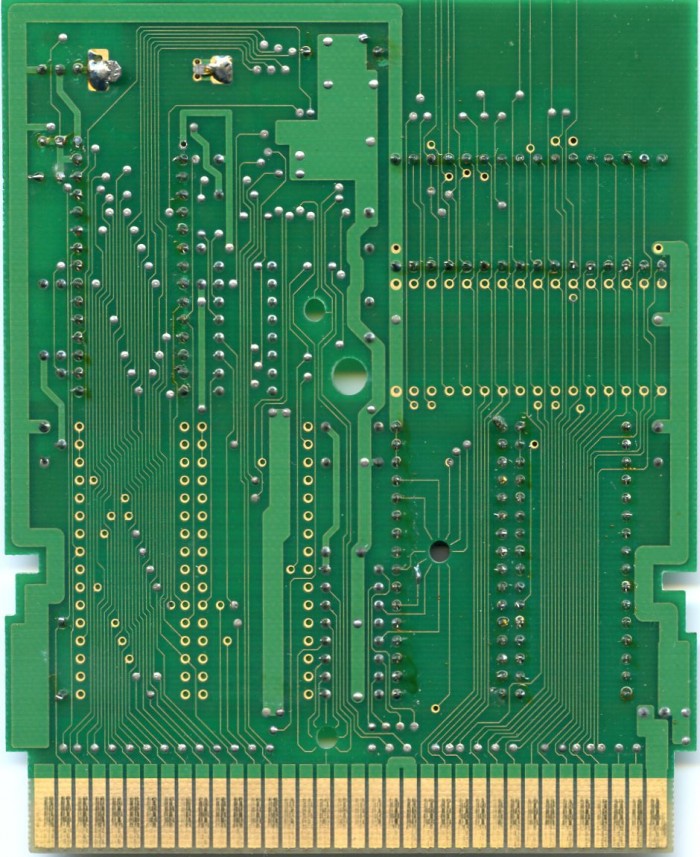

PCB Properties
| Name | NES-TKEPROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | |
| Est First Run | |
| PCB Class | NES-TKEPROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 8 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx139, MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RP100 P | 128 KB | B99085CE | 3 |
| CHR0 | RP100 C | 128 KB | 7836C636 | 3 |
| N/A | ROMs Combined | 256 KB | 81B2A3CD | 3 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG-ROM | Fujitsu | MBM27C1000-20Z | UV EPROM 128 KB | DIP-32 | 8915 Z15 | 8915 | |
| U10 | NEC | D74HC139C | 74-139 Series | DIP-16 | 8608 A7 | 8608 | |
| U5 CHR-ROM | Fujitsu | MBM27C1000-20Z | UV EPROM 128 KB | DIP-32 | 8915 Z14 | 8915 | |
| U7 W-RAM | Sony | CXK5864PN-15LL | SRAM 8 KB | DIP-28 | 9G 11E | 8927 | |
| U8 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | 9204 1 AB | 9204 | |
| U9 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9219 7 BB | 9219 |
