Release Info
| Catalog ID | NES-XU-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | November 1990 |
| Publisher | Capcom |
| Developer | Capcom |
| Players | 1 |
| Peripherals | NES Controller |

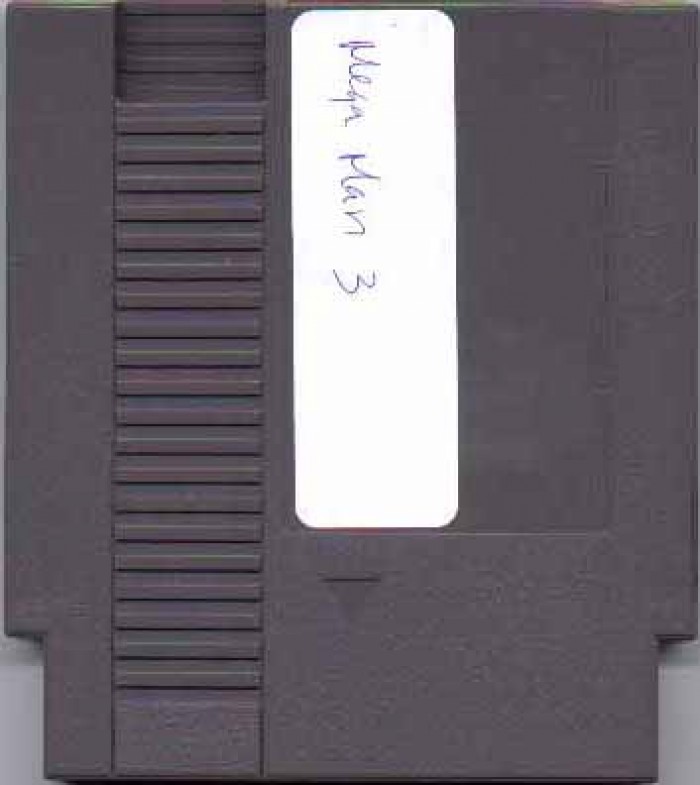

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 5-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |
PCB Properties
| Name | NES-TKEPROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9043 - 9046 (5) |
| Est First Run | October 1990 |
| PCB Class | NES-TKEPROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx139, MMC3B |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | MEGM3 PRG-0 20 CAPCOM | 128 KB | 93C4AFC6 | 1 |
| PRG1 | MEGM3 PRG-1 20 CAPCOM | 128 KB | B8ACA630 | 1 |
| CHR0 | MEGM3 CHR 20 CAPCOM | 128 KB | 4028916E | 14 |
| N/A | ROMs Combined | 384 KB | 12481CC0 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG-ROM | Hitachi | HN27C301G-20 | UV EPROM 128 KB | DIP-32 | |||
| U10 | Toshiba | 74HC139AP | 74-139 Series | DIP-16 | |||
| U2 PRG-ROM | Hitachi | HN27C301G-20 | UV EPROM 128 KB | DIP-32 | |||
| U5 CHR-ROM | Hitachi | HN27C301G-20 | UV EPROM 128 KB | DIP-32 | |||
| U8 MMC3 | Sharp | MMC3B | Nintendo MMC3 | TQFP-44 | |||
| U9 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 |
