Release Info
| Catalog ID | UNR-H5-UKV |
|---|---|
| Region | Europe (PAL-B) |
| Class | Licensed » Unreleased |
| Release Date | |
| Publisher | Gremlin |
| Developer | Gremlin |
| Players | 2 |
| Peripherals | NES Controller |

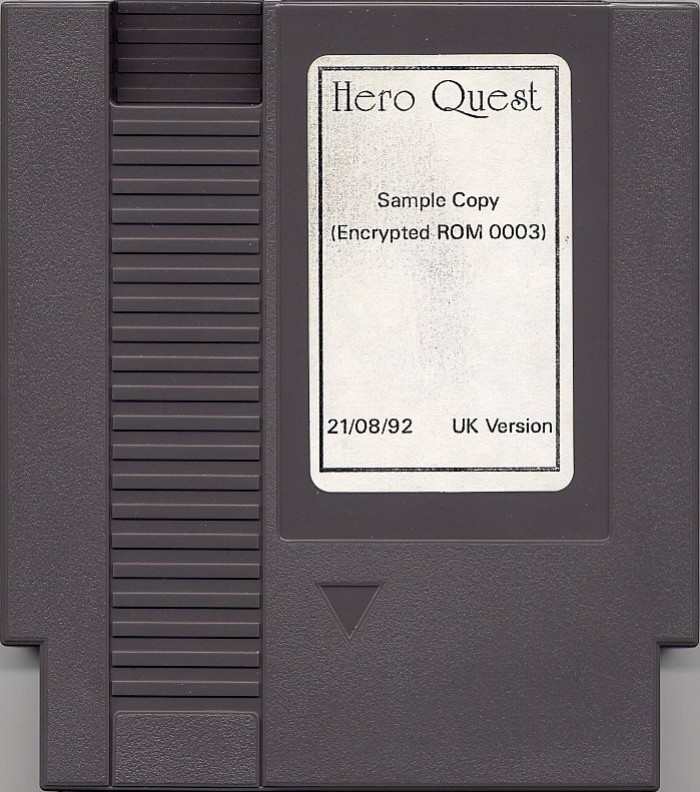

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 5-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |
PCB Properties
| Name | NES-UNEPROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | |
| Est First Run | |
| PCB Class | NES-UNEPROM |
| iNES Mapper | 2 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 3195A |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HEROQUEST NES 21/8 RN0003 | 128 KB | F9FC0700 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC3 LS161 | National Semiconductor | MM / MC74HC161N | 74-161 Series | DIP-16 | 9006 P | 9006 | |
| IC5 CIC | Sharp | 3195A | Nintendo CIC | DIP-16 | 9043 A | 9043 | |
| NEC | D27C1000D-15 | UV EPROM 128 KB | DIP-32 | 8734 KX753 | 8734 | ||
| Sharp | LH5164L-15 | SRAM 8 KB | DIP-28 | 8833 5 DA | 8833 | ||
| LS32 | National Semiconductor | MM / MC74HC32N | 74-32 Series | DIP-14 | 9006 P | 9006 |
