Release Info
| Catalog ID | NES-6F-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | February 1991 |
| Publisher | Culture Brain |
| Developer | Culture Brain |
| Players | 1 |
| Peripherals | NES Controller |

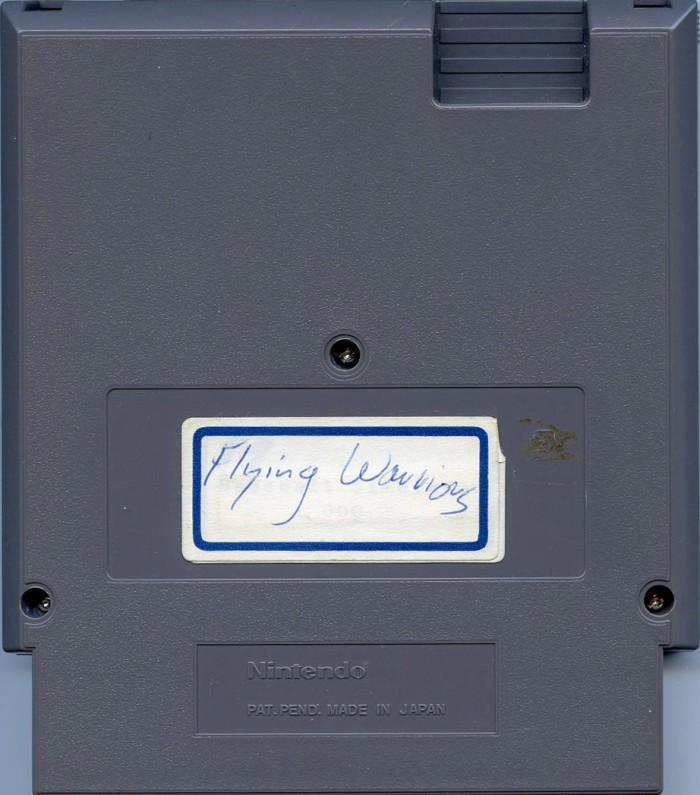

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

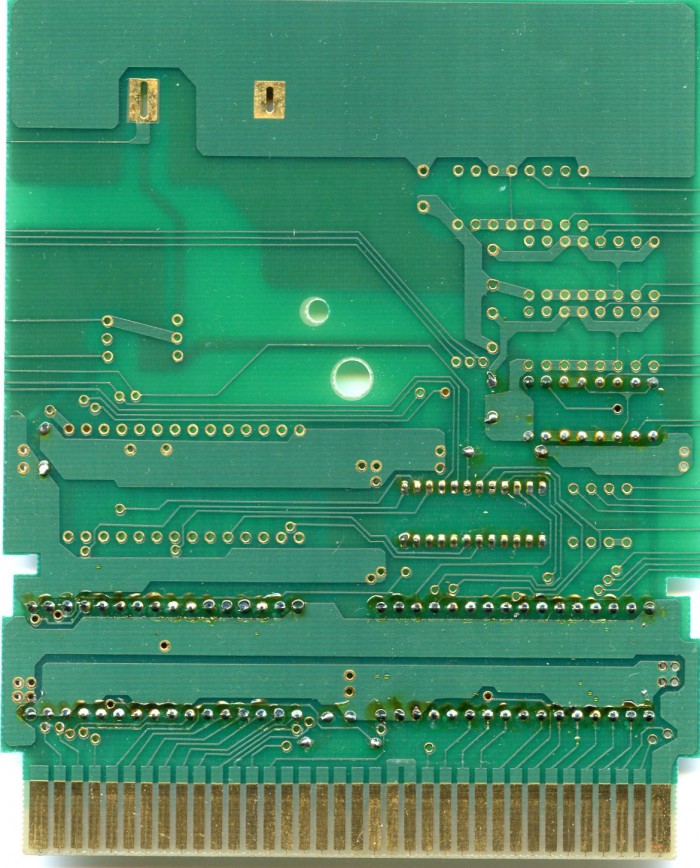

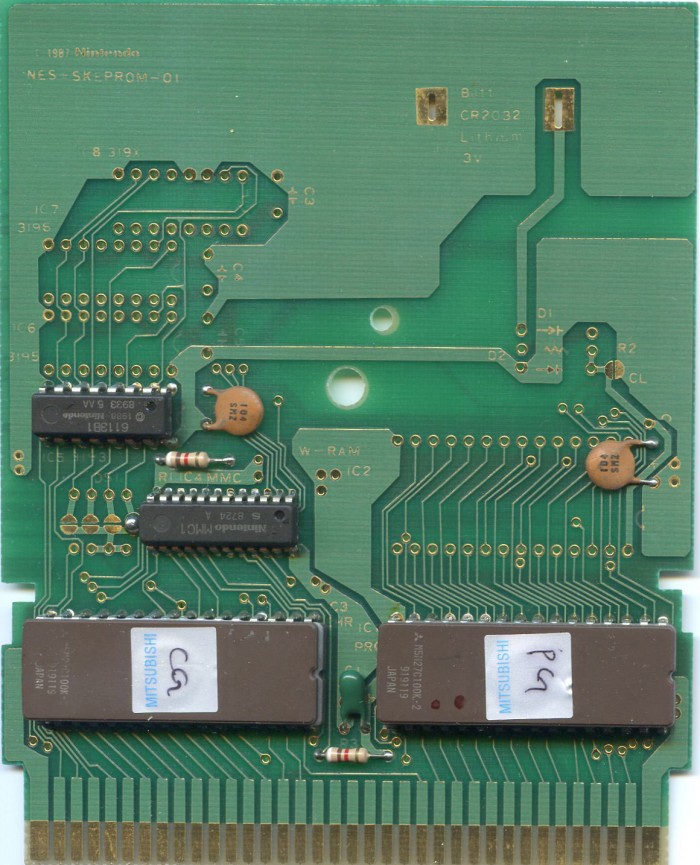

PCB Properties
| Name | NES-SKEPROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9047 |
| Est First Run | November 1990 |
| PCB Class | NES-SKEPROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | MMC1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PG | 128 KB | EEEE06F7 | 1 |
| CHR0 | CG | 128 KB | 4035B7FC | 1 |
| N/A | ROMs Combined | 256 KB | 92DD67EA | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 PRG | Mitsubishi | M5M27C100K-2 | UV EPROM 128 KB | DIP-32 | 919 119 | 8919 | |
| IC3 CHR | Mitsubishi | M5M27C100K-2 | UV EPROM 128 KB | DIP-32 | 919 119 | 8919 | |
| IC4 MMC | Sharp | MMC1 | Nintendo MMC1 | DIP-24 | 8724 A | 8724 | |
| IC5 3193 | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8933 5 AA | 8933 |
