Release Info
| Catalog ID | UNR-HVC-PB |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » Unreleased |
| Release Date | |
| Publisher | Sharp |
| Developer | Hudson Soft |
| Players | 1 |
| Peripherals | Family Keyboard,Famicom Controller |

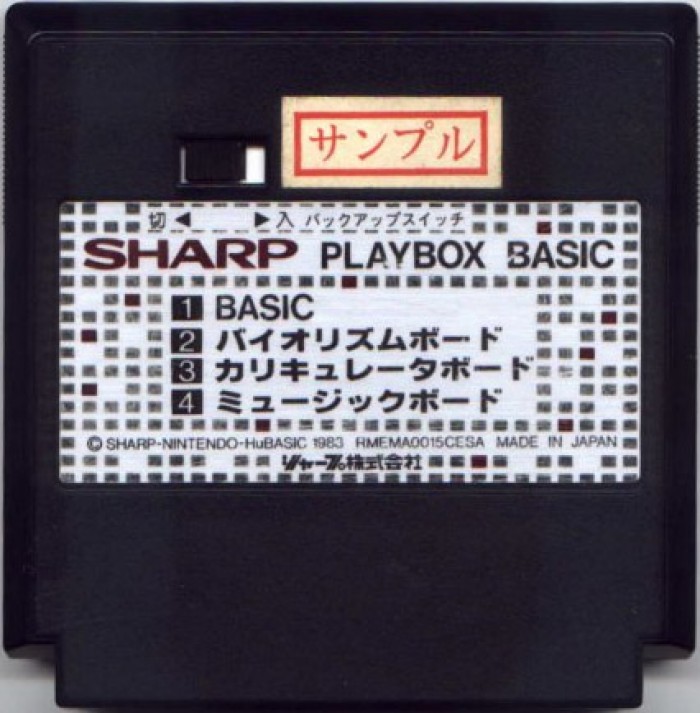

Cart Properties
| Cart Producer | |
|---|---|
| Color | Black |
| Form Factor | Family Basic |
| Embossed Text | |
| Front Label ID | Not Present |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |
PCB Properties
| Name | HVC-FB1-128 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | |
| Est First Run | |
| PCB Class | HVC-FAMILYBASIC |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | Yes |
| WRAM | 2 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx20 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | 2 | 16 KB | C8C15B11 | 1 |
| PRG1 | 1 | 16 KB | 2A5E0348 | 1 |
| CHR0 | 3 | 8 KB | C06BB289 | 1 |
| N/A | ROMs Combined | 40 KB | 912989DC | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 WORKING RAM | Fujitsu | MB8416A-15-SK | SRAM 2 KB | SDIP-24 | |||
| IC2 PROGRAM ROM-A 128K | Hitachi | HN4827128G-25 | UV EPROM 16 KB | DIP-28 | |||
| IC3 PROGRAM ROM-B 128K | Fujitsu | MBM27128-25 | UV EPROM 16 KB | DIP-28 | |||
| IC4 LS20 | Mitsubishi | M74LS20P | 74-20 Series | DIP-14 | |||
| IC5 CHARACTER ROM-C 64K | Hitachi | HN482764G-2 | UV EPROM 8 KB | DIP-28 |
