Release Info
| Catalog ID | UNR-37-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed » Unreleased |
| Release Date | |
| Publisher | Palcom |
| Developer | Konami |
| Players | 1 |
| Peripherals | NES Controller |
Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |

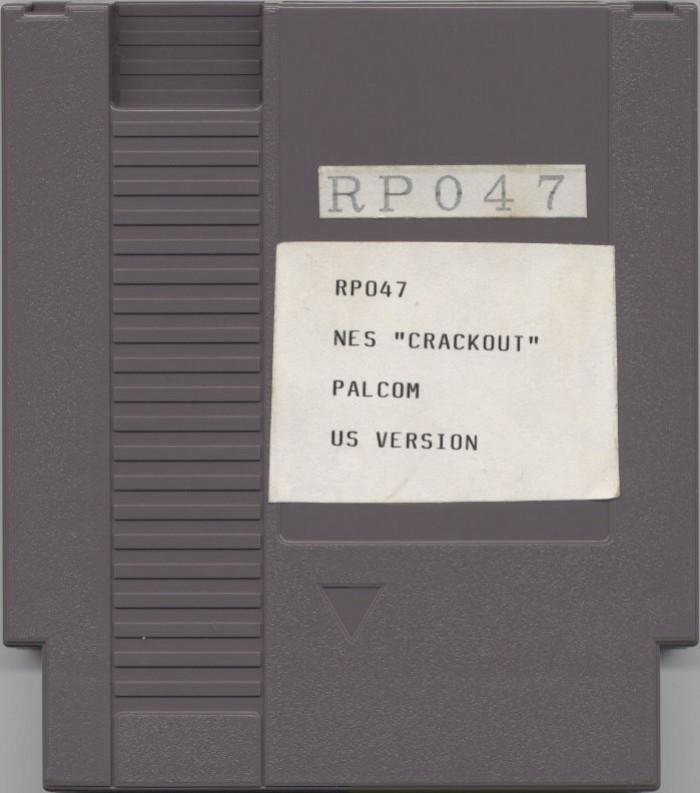

| Front Label ID | RP047 |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |
PCB Properties
| Name | 351258 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | |
| Est First Run | |
| PCB Class | KONAMI-UNROM |
| iNES Mapper | 2 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RP047 P0.1P | 128 KB | 7E9BCA05 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| Fujitsu | MBM27C1000-20Z | UV EPROM 128 KB | DIP-32 | ||||
| Fujitsu | MB8464A-15LL-SK | SRAM 8 KB | SDIP-28 | 9102 KT07 | 9102 | ||
| Sharp | 6113B1 | Nintendo CIC | DIP-16 | 9052 5 AB | 9052 | ||
| NEC | D74HC161C | 74-161 Series | DIP-16 | 8708 B7 | 8708 | ||
| NEC | D74HC32C | 74-32 Series | DIP-14 | 8545 C7 | 8545 |
