Release Info
| Catalog ID | UNR-X7-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed » Unreleased |
| Release Date | |
| Publisher | Capcom |
| Developer | Radiance Software |
| Players | 1 |
| Peripherals | NES Controller |

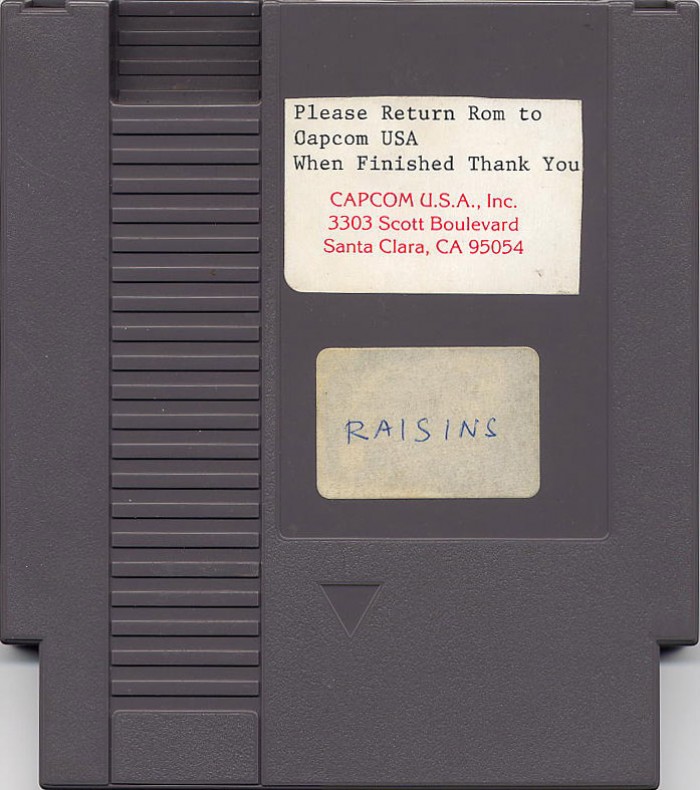

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |
PCB Properties
| Name | NES-UN-ROM-04 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | |
| Est First Run | |
| PCB Class | NES-UNROM |
| iNES Mapper | 2 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 8 KB |
| CIC Type | 6113A |
| Hardware | 74xx161, 74xx32 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RAISINS 03 CAPCOM | 128 KB | 8D97155C | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | Hitachi | HN27C301G-20 | UV EPROM 128 KB | DIP-32 | 8844 | 8844 | 00002SS0 |
| CHR RAM | Sony | CXK5864PN-15LL | SRAM 8 KB | DIP-28 | 9K 27E | 8944 | |
| CIC | Sharp | 6113A | Nintendo CIC | DIP-16 | 8829 1 AA | 8829 | |
| LS161N | Mitsubishi | M74LS161AP | 74-161 Series | DIP-16 | 648 4D3 | 8648 | |
| LS32 | Texas Instruments | SN74LS32N | 74-32 Series | DIP-14 | 8939 CS | 8939 |
