Release Info
| Catalog ID | NES-VM-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | November 1988 |
| Publisher | Sunsoft |
| Developer | Sunsoft |
| Players | 1 |
| Peripherals | NES Controller |

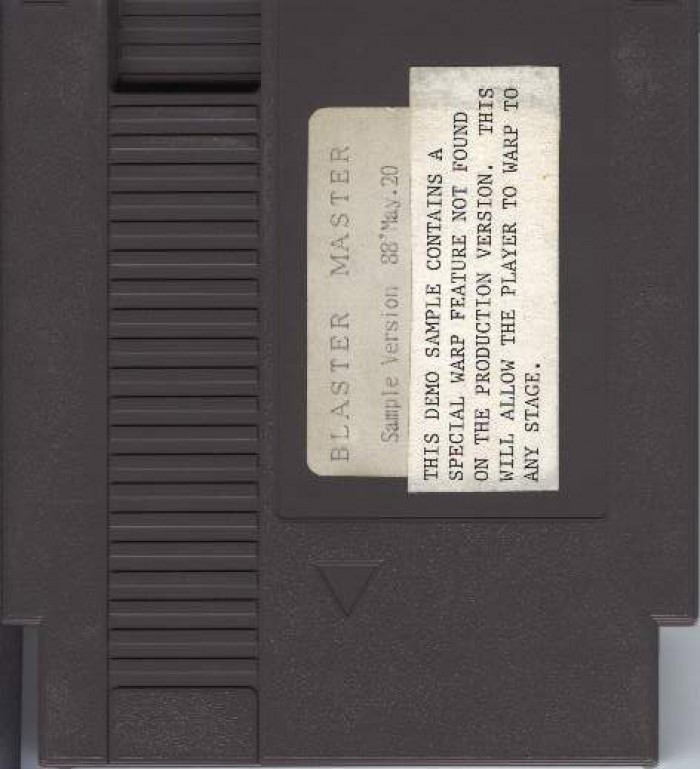

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

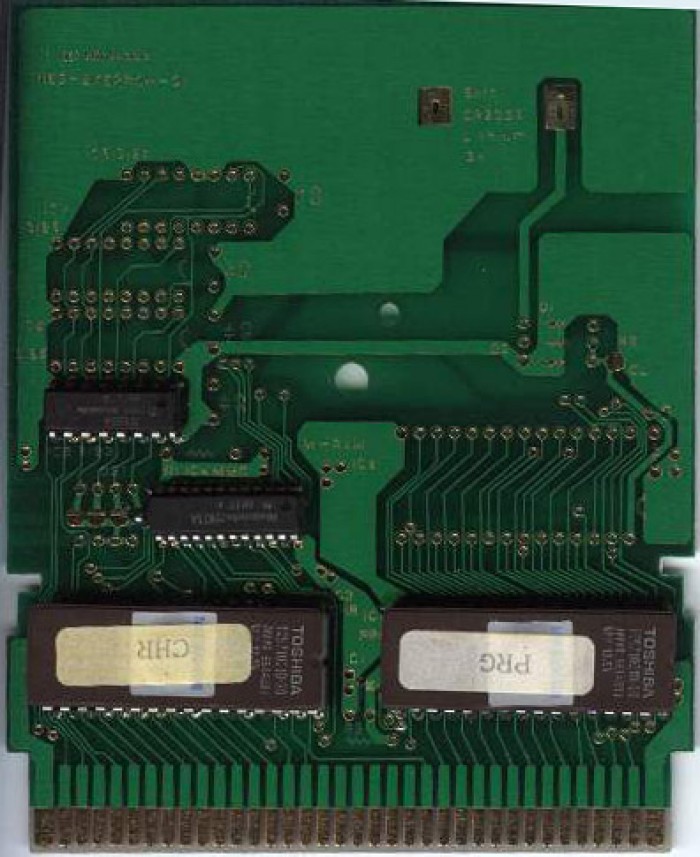

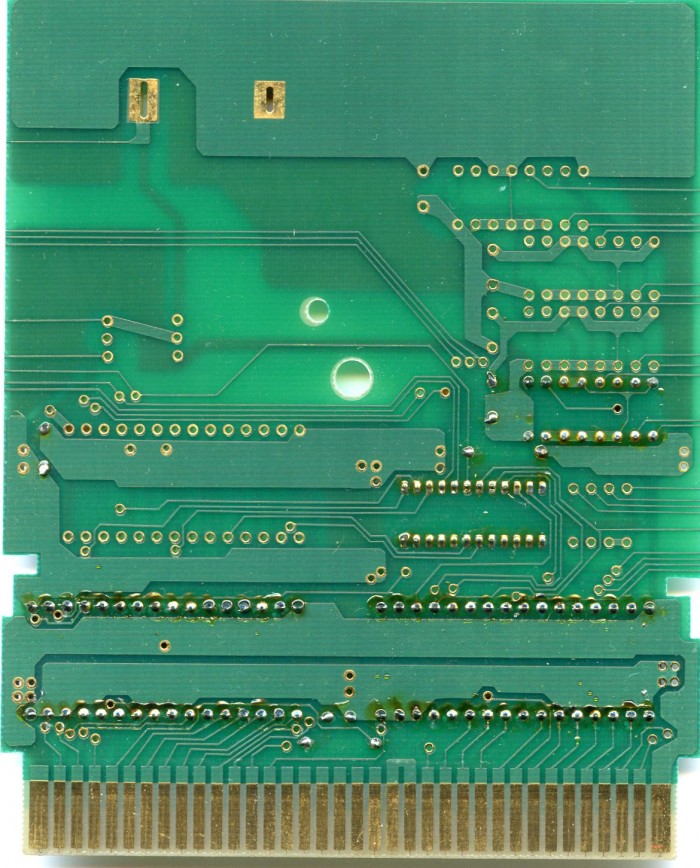

PCB Properties
| Name | NES-SKEPROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8919 - 8953 (3) |
| Est First Run | May 1989 |
| PCB Class | NES-SKEPROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3193A |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PRG | 128 KB | 7705CB0B | 1 |
| CHR0 | CHR | 128 KB | 0908CA25 | 1 |
| N/A | ROMs Combined | 256 KB | B683A856 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 PRG | Toshiba | TC571001D-20 | UV EPROM 128 KB | DIP-32 | |||
| IC3 CHR | Toshiba | TC571001D-20 | UV EPROM 128 KB | DIP-32 | |||
| IC4 MMC | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | |||
| IC5 3193 | Sharp | 3193A | Nintendo CIC | DIP-16 |
