Release Info
| Catalog ID | NES-B4-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed |
| Release Date | February 1990 |
| Publisher | Sunsoft |
| Developer | Sunsoft |
| Players | 1 |
| Peripherals | NES Controller |

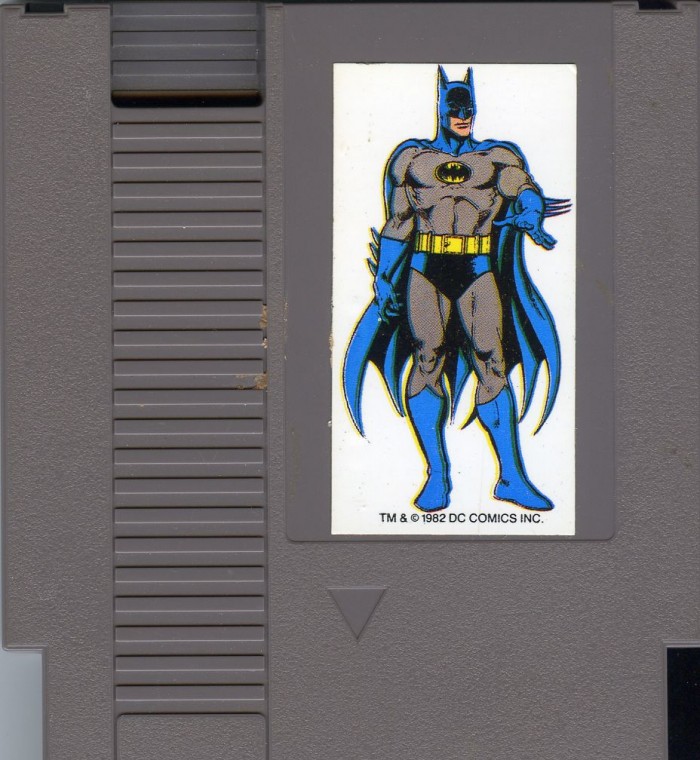

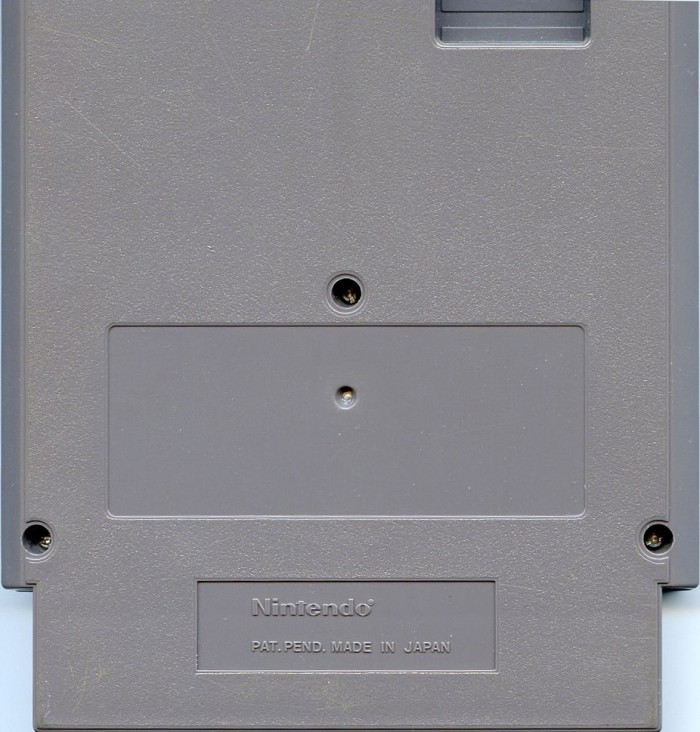

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

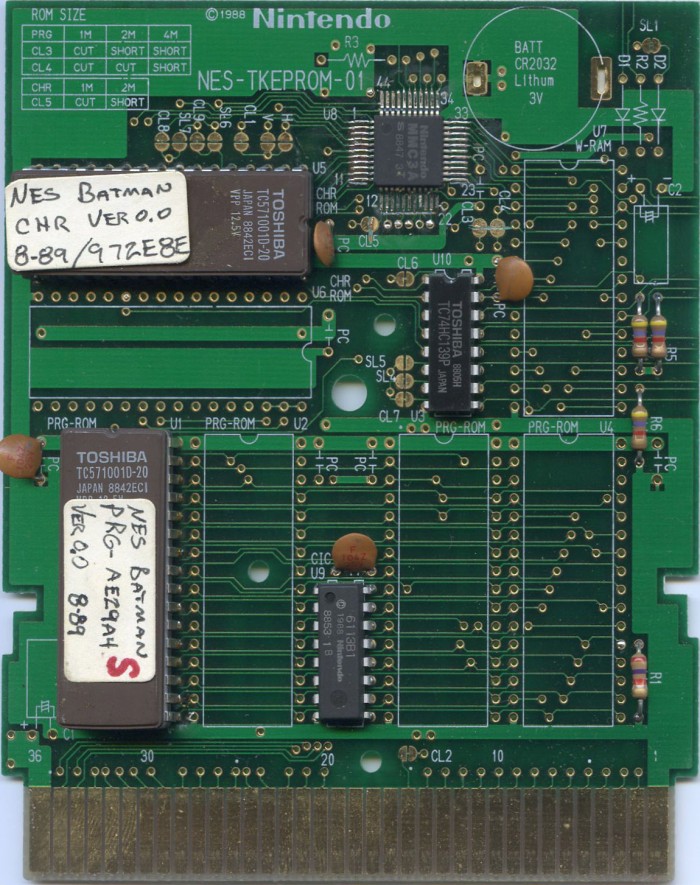

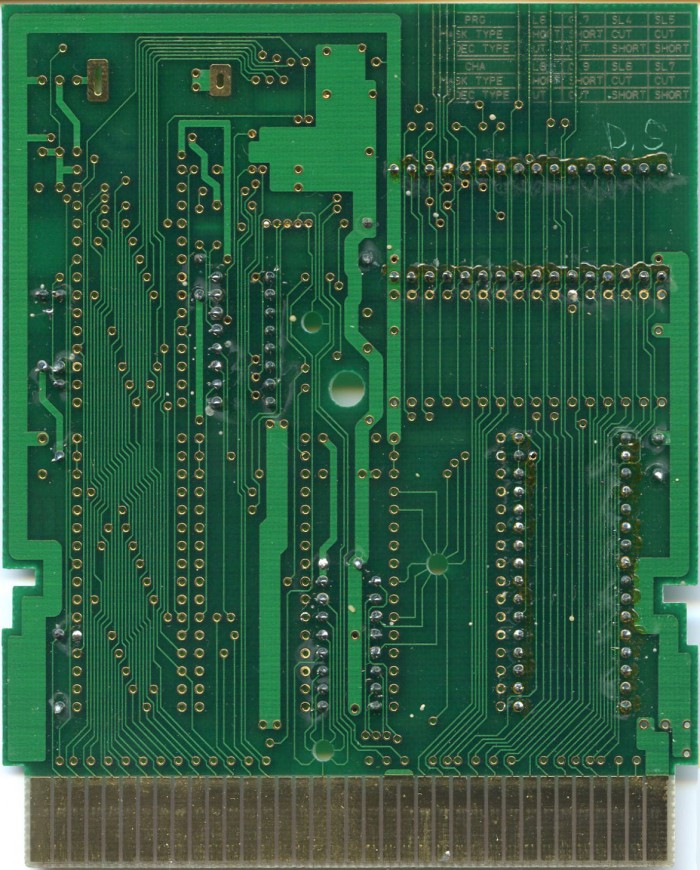

PCB Properties
| Name | NES-TKEPROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8949 - 9024 (4) |
| Est First Run | December 1989 |
| PCB Class | NES-TKEPROM |
| iNES Mapper | 4 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 6113B1 |
| Hardware | 74xx139, MMC3A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES BATMAN PRG-AE29A4 VER 0.0 8-89 | 128 KB | A8F5C8ED | 1 |
| CHR0 | NES BATMAN CHR VER 0.0 8-89 / 972E8E | 128 KB | 47C50822 | 1 |
| N/A | ROMs Combined | 256 KB | 816AD178 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG-ROM | Toshiba | TC571001D-20 | UV EPROM 128 KB | DIP-32 | 8842 ECI | 8842 | |
| U10 | Toshiba | TC74HC139P | 74-139 Series | DIP-16 | 8805 H | 8805 | |
| U5 CHR-ROM | Toshiba | TC571001D-20 | UV EPROM 128 KB | DIP-32 | 8842 ECI | 8842 | |
| U8 MMC3 | Sharp | MMC3A | Nintendo MMC3 | TQFP-44 | 8847 3 T | 8847 | |
| U9 CIC | Sharp | 6113B1 | Nintendo CIC | DIP-16 | 8853 1 B | 8853 |
