Release Info
| Catalog ID | UNR-14-USA |
|---|---|
| Region | USA (NTSC) |
| Class | Licensed » Unreleased |
| Release Date | |
| Publisher | Jaleco |
| Developer | Atlus |
| Players | 1 |
| Peripherals | NES Controller |

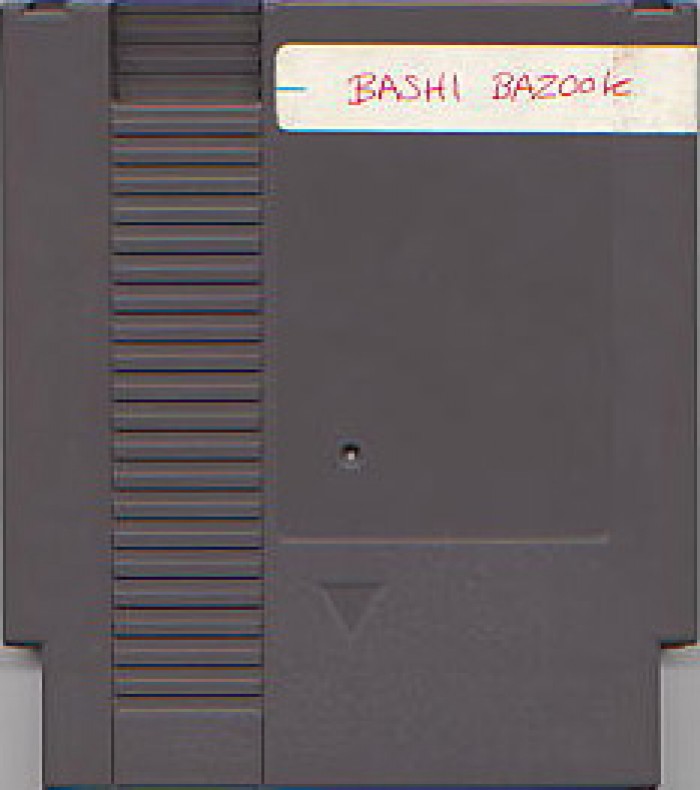

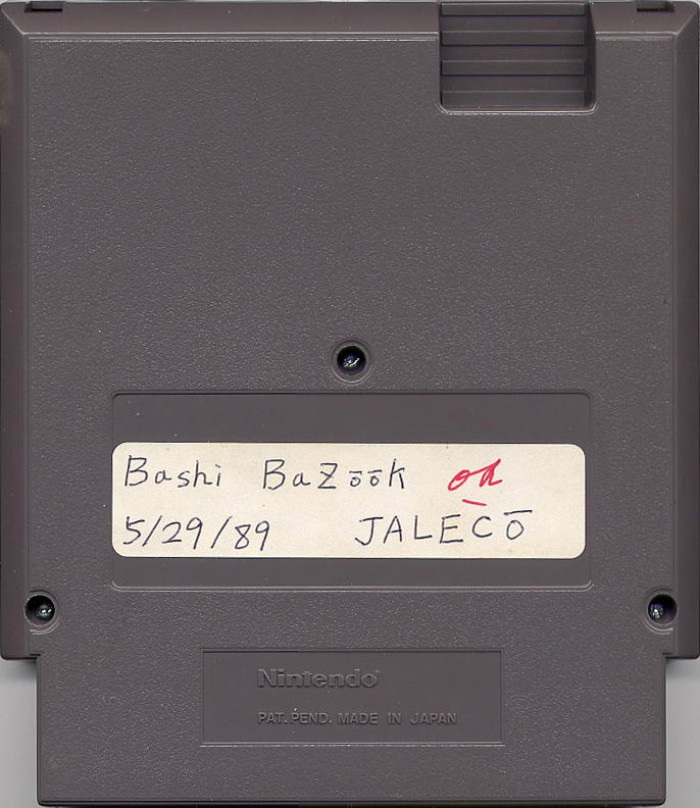

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

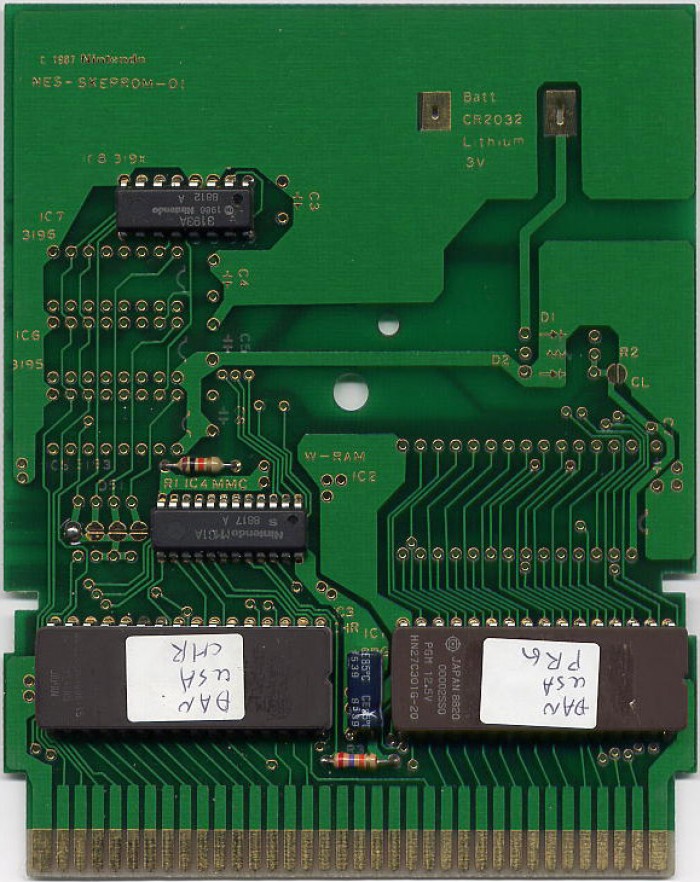

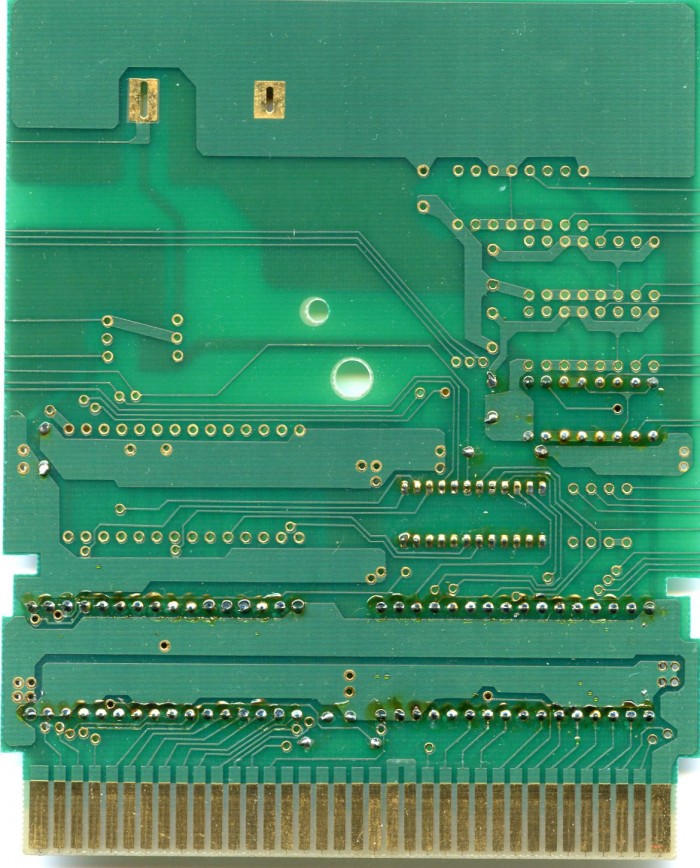

PCB Properties
| Name | NES-SKEPROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | |
| Est First Run | |
| PCB Class | NES-SKEPROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3193A |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | DAN USA PRG | 128 KB | C478AFD6 | 1 |
| CHR0 | DAN USA CHR | 128 KB | A04D270D | 1 |
| N/A | ROMs Combined | 256 KB | 7C7A0A73 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 PRG | Hitachi | HN27C301G-20 | UV EPROM 128 KB | DIP-32 | 8820 | 8820 | 00002SS0 |
| IC3 CHR | Mitsubishi | M5M27C100K-15 | UV EPROM 128 KB | DIP-32 | |||
| IC4 MMC | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8817 A | 8817 | |
| IC8 319X | Sharp | 3193A | Nintendo CIC | DIP-16 | 8812 A | 8812 |
