Release Info
| Catalog ID | HVC-PT |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | November 21, 1987 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | Famicom Controller |

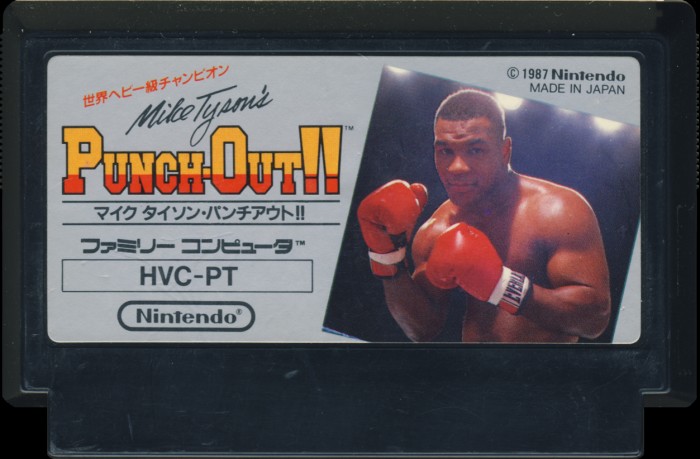

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | HVC-PT |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

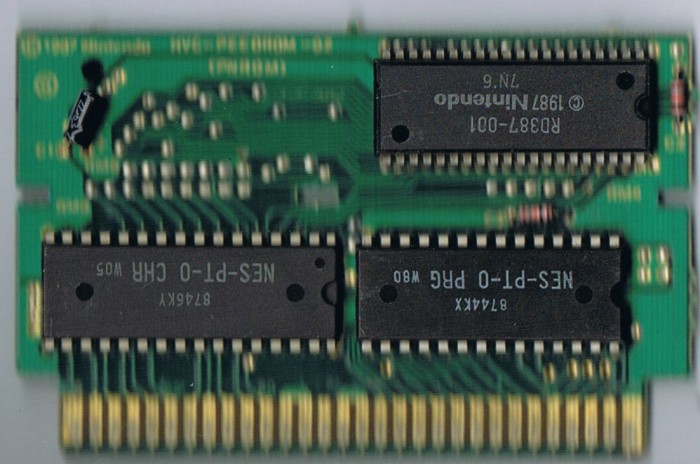

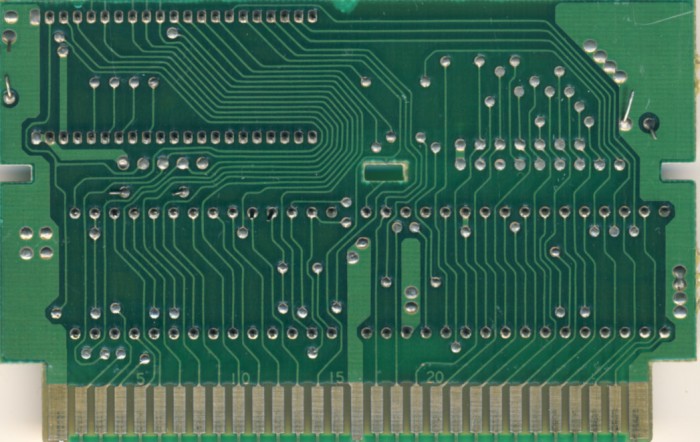

PCB Properties
| Name | HVC-PEEOROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8746 - 8747 (2) |
| Est First Run | November 1987 |
| PCB Class | HVC-PEEOROM |
| iNES Mapper | 9 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | RD387-001 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | NES-PT-0 PRG | 128 KB | 8DB6D11F | 4 |
| CHR0 | NES-PT-0 CHR | 128 KB | 570B48EA | 10 |
| N/A | ROMs Combined | 256 KB | 92A2185C | 4 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG ROM | NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8744 KX | 8744 | |
| U2 CHR ROM | NEC | UPD23C1013 | Mask ROM 128 KB | DIP-32 | 8746 KY | 8746 | |
| U3 MMC2 | Panasonic | RD387-001 | Nintendo MMC2 | DIP-42 | 7N?6 | 8747 |
