Release Info
| Catalog ID | KON-RC250 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | December 16, 1987 |
| Publisher | Konami |
| Developer | Human Entertainment |
| Players | 1 |
| Peripherals | Famicom Controller |

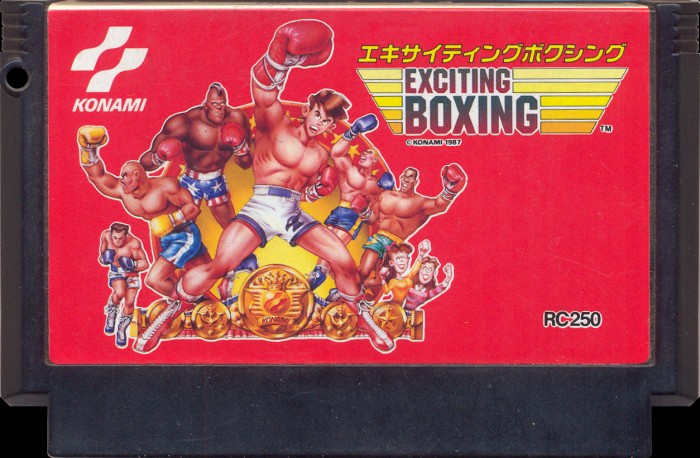

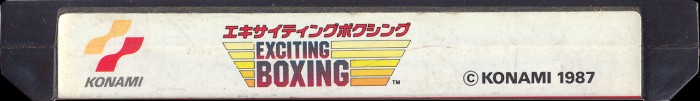

Cart Properties
| Cart Producer | Konami |
|---|---|
| Color | Black |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | RC250 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |

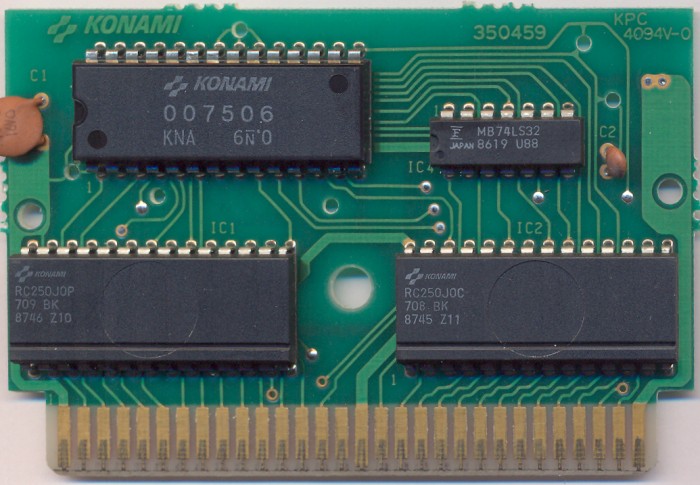

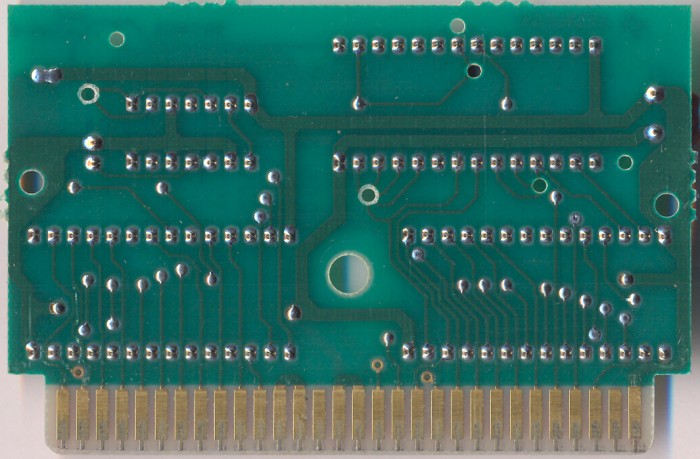

PCB Properties
| Name | 350459 |
|---|---|
| PCB Producer | Konami |
| Manufacturer | Not Specified |
| Mfg Range | 8746 |
| Est First Run | November 1987 |
| PCB Class | KONAMI-VRC-1 |
| iNES Mapper | 75 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx32, VRC1 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | RC250J0P | 128 KB | 786148B6 | 0 |
| CHR0 | RC250J0C | 128 KB | 18A005CF | 0 |
| N/A | ROMs Combined | 256 KB | AC4BF9DC | 0 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| IC1 | Fujitsu | MB831002 | Mask ROM 128 KB | DIP-28 | 8746 Z10 | 8746 | |
| IC2 | Fujitsu | MB831002 | Mask ROM 128 KB | DIP-28 | 8745 Z11 | 8745 | |
| IC3 | Panasonic | 007506 KNA | Konami VRC | DIP-28 | 6 | 8644 | |
| IC4 | Fujitsu | MB74LS32 | 74-32 Series | DIP-14 | 8619 U88 | 8619 |
