Release Info
| Catalog ID | GTS-4G |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | April 12, 1991 |
| Publisher | Tokuma Shoten |
| Developer | Compile |
| Players | 1 |
| Peripherals | Famicom Controller |

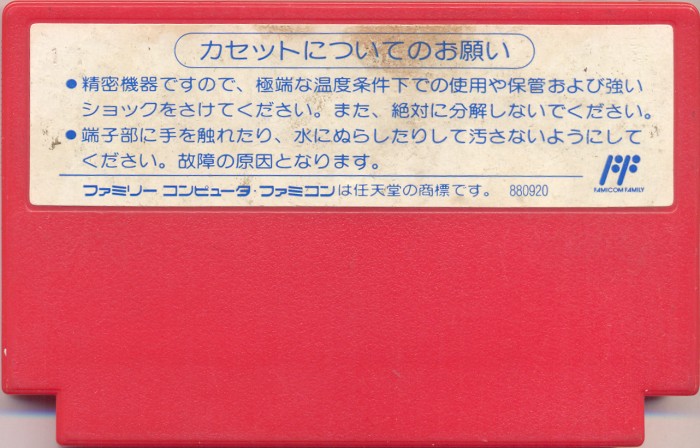

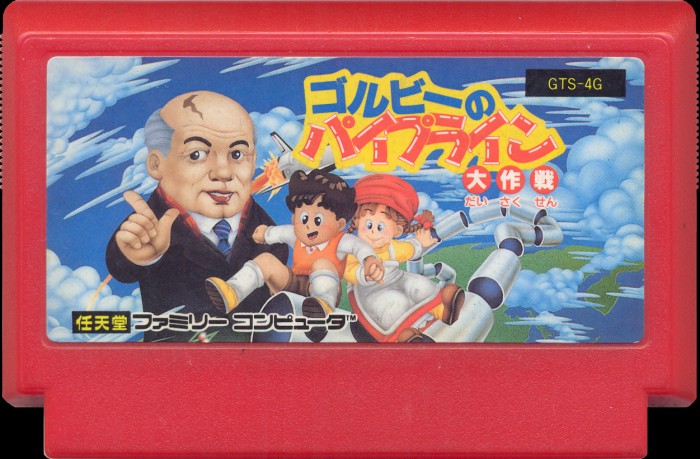

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Red |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | GTS-4G |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 11 |

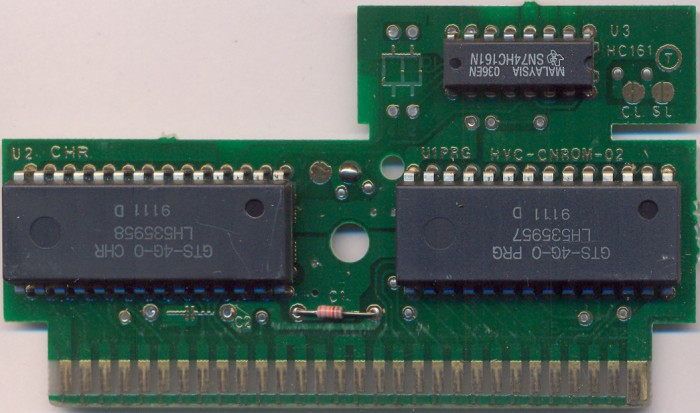

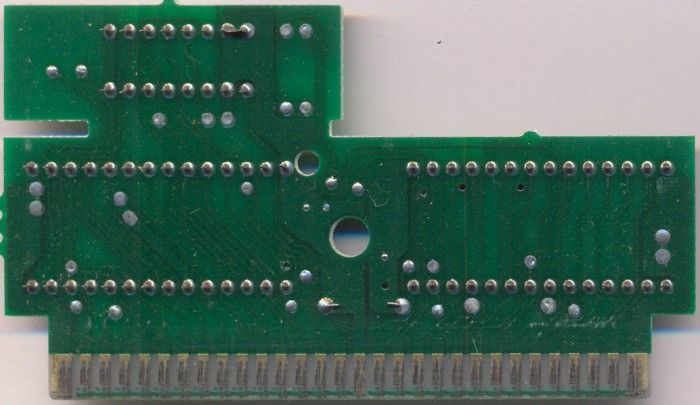

PCB Properties
| Name | HVC-CNROM-2 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9111 |
| Est First Run | March 1991 |
| PCB Class | HVC-CNROM |
| iNES Mapper | 3 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | GTS-4G-0 PRG | 32 KB | 196F05DD | 0 |
| CHR0 | GTS-4G-0 CHR | 32 KB | 941F8BDE | 0 |
| N/A | ROMs Combined | 64 KB | 1829616A | 0 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Sharp | LH5359 57 | Mask ROM 32 KB | DIP-28 | 9111 D | 9111 | |
| U2 CHR | Sharp | LH5359 58 | Mask ROM 32 KB | DIP-28 | 9111 D | 9111 | |
| U3 HC161 | Texas Instruments | SN74HC161N | 74-161 Series | DIP-16 | 036 EN | 9036 |
