Release Info
| Catalog ID | CBS-PD |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | February 1, 1988 |
| Publisher | CBS / Sony Group |
| Developer | ISCO |
| Players | 1 |
| Peripherals | Famicom Controller |

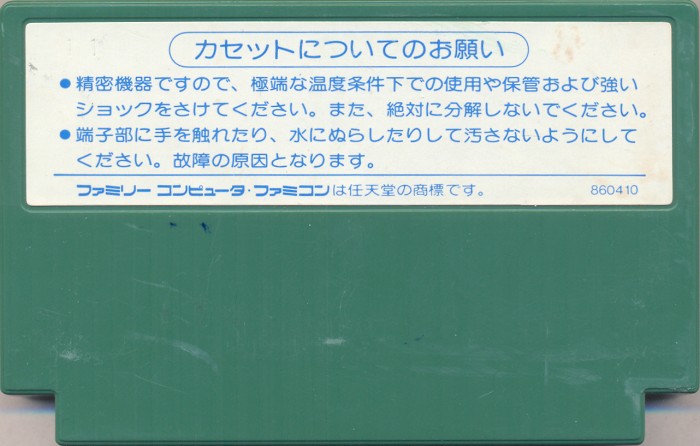

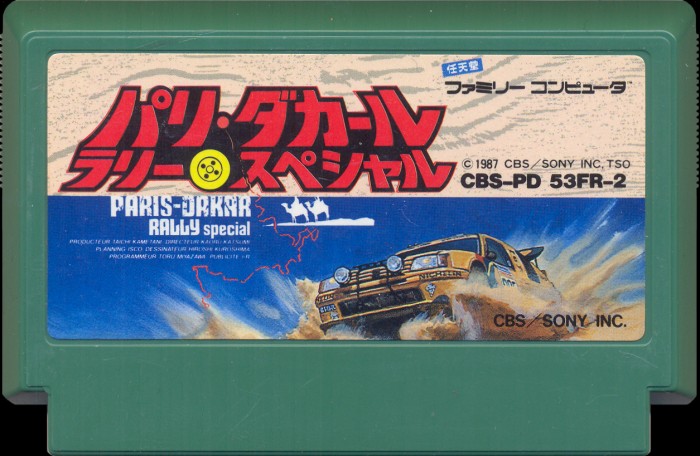

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Green |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | CBS-PD |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 11 |

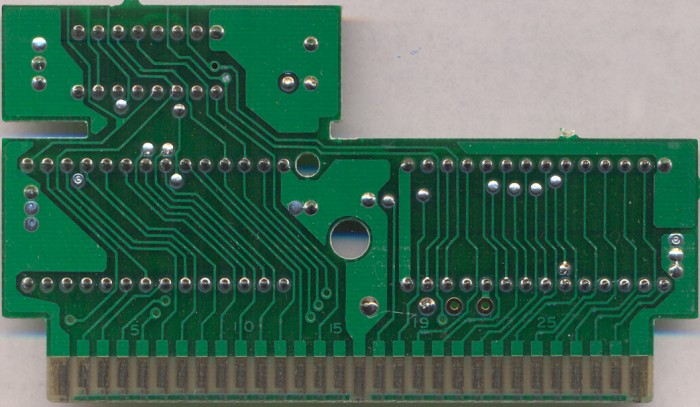

PCB Properties
| Name | HVC-GNROM-02 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8801 |
| Est First Run | January 1988 |
| PCB Class | HVC-GNROM |
| iNES Mapper | 66 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | 74xx161 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | CBS-PD-0 PRG | 128 KB | E30552DB | 0 |
| CHR0 | CBS-PD-0 CHR | 32 KB | D0630F77 | 0 |
| N/A | ROMs Combined | 160 KB | 5F6E8A07 | 0 |

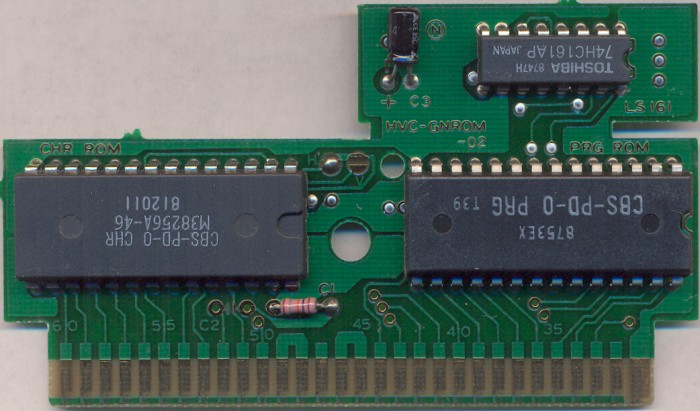

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PRG ROM | NEC | UPD23C1010 | Mask ROM 128 KB | DIP-28 | 8753 EX | 8753 | |
| CHR ROM | OKI | M38256A 46 | Mask ROM 32 KB | DIP-28 | 81 2011 | 8801 | |
| LS161 | Toshiba | 74HC161AP | 74-161 Series | DIP-16 | 8747 H | 8747 |
