Release Info
| Catalog ID | NES-CC-AUS |
|---|---|
| Region | Australia (PAL-A) |
| Class | Licensed |
| Release Date | 1992 |
| Publisher | Beam Software |
| Developer | Beam Software |
| Players | 2 |
| Peripherals | NES Controller |

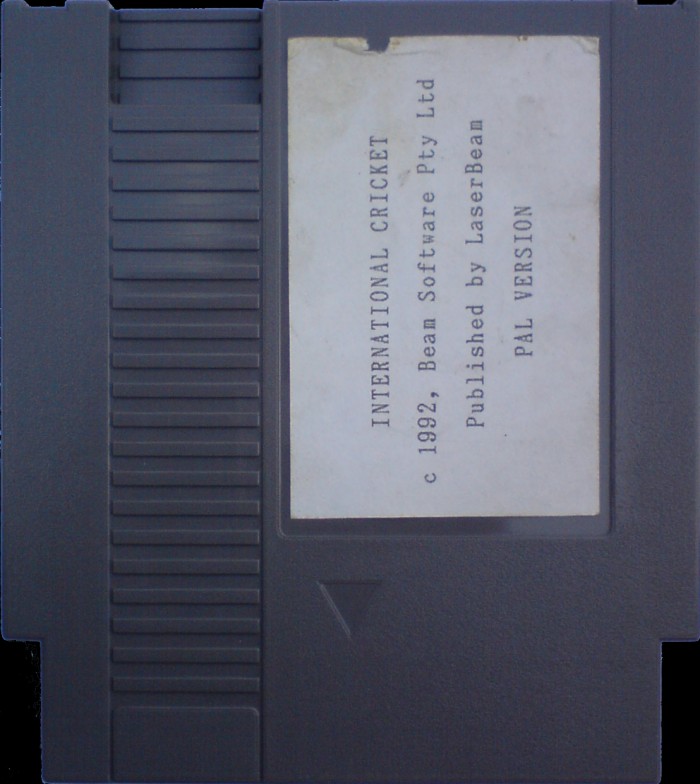

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | Not Present |
| Seal of Quality | None |
| MfgString Present | No |
| 2-digit Code |

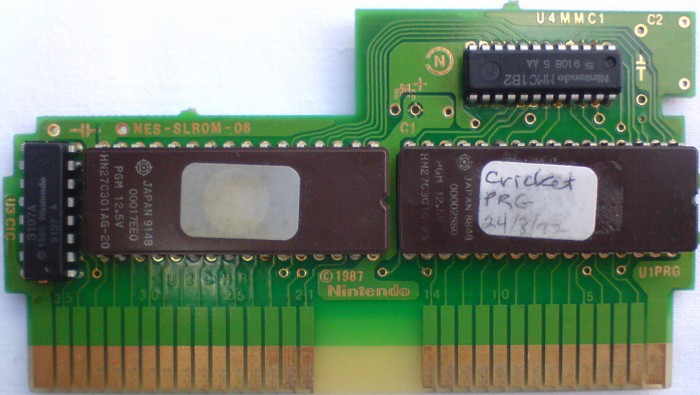

PCB Properties
| Name | NES-SLROM-06 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 9236 |
| Est First Run | September 1992 |
| PCB Class | NES-SLROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3197A |
| Hardware | MMC1B2 |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | CRICKET PRG 24/8/92 | 128 KB | 9DB6A3ED | 1 |
| CHR0 | Not Present | 128 KB | F8C1FB2B | 1 |
| N/A | ROMs Combined | 256 KB | 99C88648 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Hitachi | HN27C3010-25 | UV EPROM 128 KB | DIP-32 | 8848 | 8848 | 00002SS0 |
| U2 CHR | Hitachi | HN27C301AG-20 | UV EPROM 128 KB | DIP-32 | 9148 | 9148 | 000017EE0 |
| U3 CIC | Sharp | 3197A | Nintendo CIC | DIP-16 | 9137 A | 9137 | |
| U4 MMC1 | Sharp | MMC1B2 | Nintendo MMC1 | DIP-24 | 9108 5 AA | 9108 |
