Release Info
| Catalog ID | JF-04 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed » 3rd-Party |
| Release Date | July 9, 1985 |
| Publisher | Jaleco |
| Developer | Jaleco |
| Players | 2 |
| Peripherals | Famicom Controller |

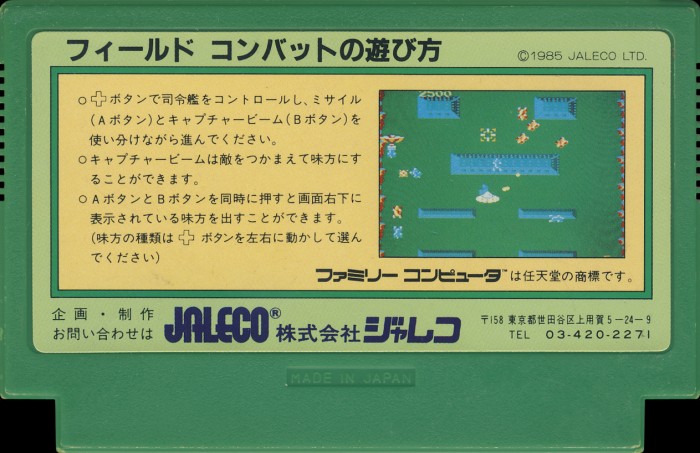

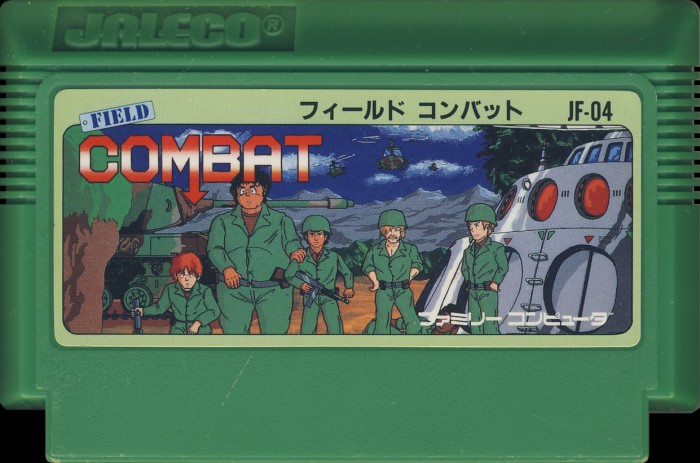

Cart Properties
| Cart Producer | Jaleco |
|---|---|
| Color | Green |
| Form Factor | Small |
| Embossed Text | Made in Japan |
| Front Label ID | JF-04 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code |
PCB Properties
| Name | JF |
|---|---|
| PCB Producer | Jaleco |
| Manufacturer | Not Specified |
| Mfg Range | 8524 - 8529 (4) |
| Est First Run | June 1985 |
| PCB Class | JALECO-JF-04 |
| iNES Mapper | 0 |
| Mirroring | Horizontal |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | Not Present | 16 KB | E90D4A9F | 3 |
| CHR0 | Not Present | 8 KB | 0E060C68 | 3 |
| N/A | ROMs Combined | 24 KB | 1B45A73E | 3 |

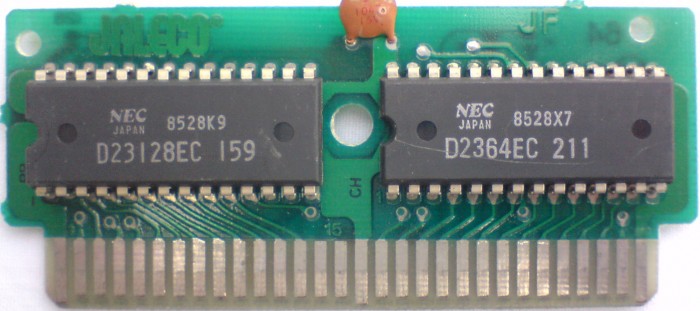

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| PR | NEC | D23128EC 159 | Mask ROM 16 KB | DIP-28 | 8528 K9 | 8528 | |
| CH | NEC | D2364EC 211 | Mask ROM 8 KB | DIP-28 | 8528 X7 | 8528 |
