Release Info
| Catalog ID | VRE-R1 |
|---|---|
| Region | Japan (NTSC) |
| Class | Licensed |
| Release Date | December 17, 1988 |
| Publisher | Varie |
| Developer | Varie |
| Players | 1 |
| Peripherals | Top Rider Bike,Famicom Controller |

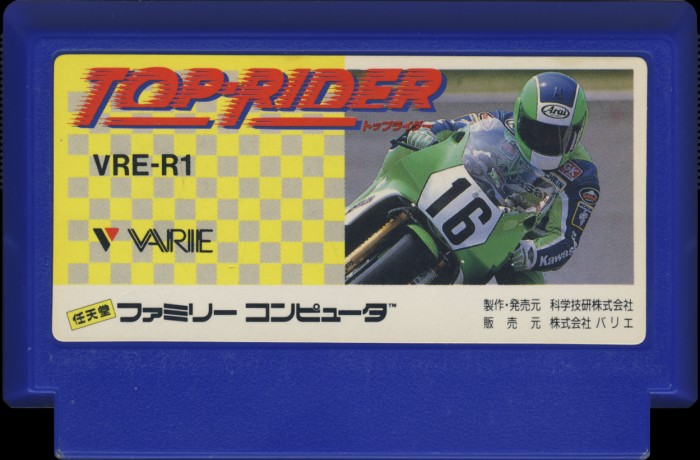

Cart Properties
| Cart Producer | Nintendo (Famicom) |
|---|---|
| Color | Midnight Blue |
| Form Factor | Small |
| Embossed Text | |
| Front Label ID | VRE-R1 |
| Seal of Quality | |
| MfgString Present | |
| 2-digit Code | 00 |

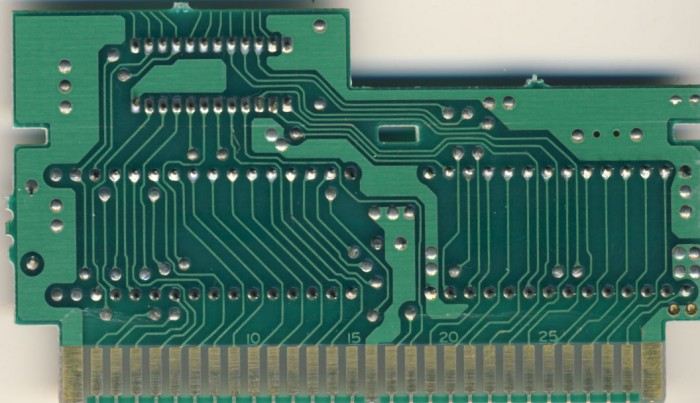

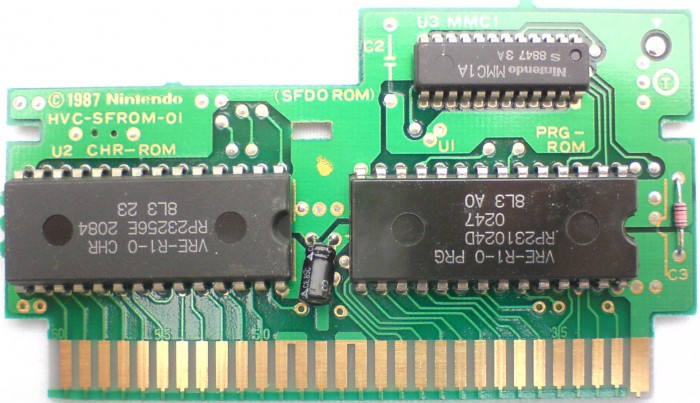

PCB Properties
| Name | HVC-SFROM-01 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8847 - 8848 (2) |
| Est First Run | November 1988 |
| PCB Class | HVC-SFROM |
| iNES Mapper | 1 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | None |
| Hardware | MMC1A |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | VRE-R1-0 PRG | 128 KB | 20D22251 | 1 |
| CHR0 | VRE-R1-0 CHR | 32 KB | 56C39CB2 | 1 |
| N/A | ROMs Combined | 160 KB | 47232739 | 1 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG-ROM | Ricoh | RP231024D 0247 | Mask ROM 128 KB | DIP-28 | 8L3 A0 | 8847 | |
| U2 CHR-ROM | Ricoh | RP23256E 2084 | Mask ROM 32 KB | DIP-28 | 8L3 23 | 8847 | |
| U3 MMC1 | Sharp | MMC1A | Nintendo MMC1 | DIP-24 | 8847 3 A | 8847 |
