Release Info
| Catalog ID | NES-PT-FRA |
|---|---|
| Region | France (PAL-B) |
| Class | Licensed |
| Release Date | December 15, 1987 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 1 |
| Peripherals | NES Controller |

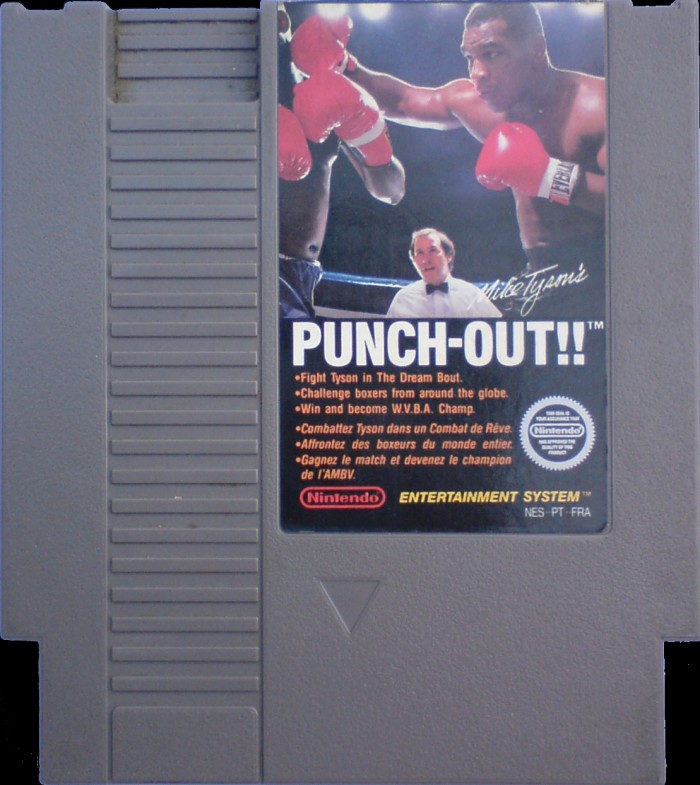

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-PT-FRA |
| Seal of Quality | Round |
| MfgString Present | No |
| 2-digit Code |

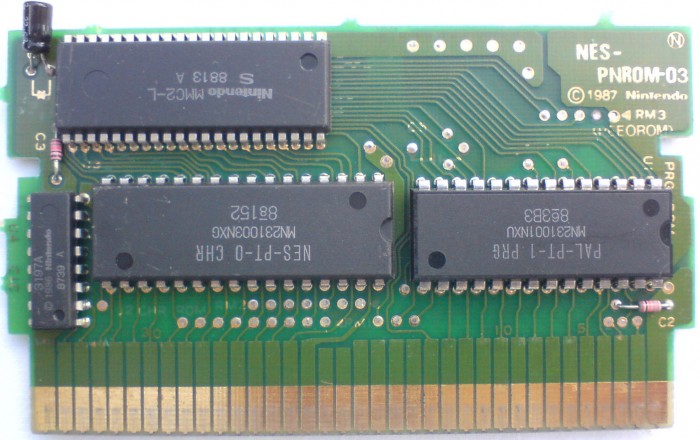

PCB Properties
| Name | NES-PNROM-03 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8831 |
| Est First Run | August 1988 |
| PCB Class | NES-PNROM |
| iNES Mapper | 9 |
| Mirroring | Mapper Ctrl |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3197A |
| Hardware | MMC2-L |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | PAL-PT-1 PRG | 128 KB | F2A43A8A | 2 |
| CHR0 | NES-PT-0 CHR | 128 KB | 570B48EA | 10 |
| N/A | ROMs Combined | 256 KB | 25551F3F | 2 |
Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG ROM | Panasonic | MN231001 NXU | Mask ROM 128 KB | DIP-28 | 8 B3 | 8825 | |
| U2 CHR ROM | Panasonic | MN231003 NXG | Mask ROM 128 KB | DIP-32 | 8 52 | 8831 | |
| U3 MMC2 | Sharp | MMC2-L | Nintendo MMC2 | DIP-42 | 8813 A | 8813 | |
| U4 CIC | Sharp | 3197A | Nintendo CIC | DIP-16 | 8739 A | 8739 |
