Release Info
| Catalog ID | NES-GY-FRA |
|---|---|
| Region | France (PAL-B) |
| Class | Licensed |
| Release Date | 1985 |
| Publisher | Nintendo |
| Developer | Nintendo |
| Players | 2 |
| Peripherals | NES Controller,R. O. B. |

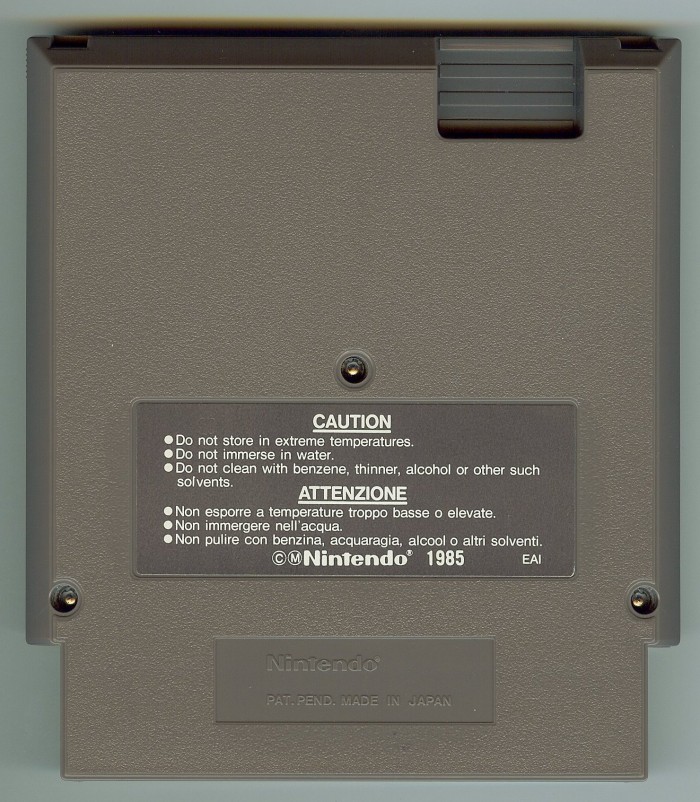

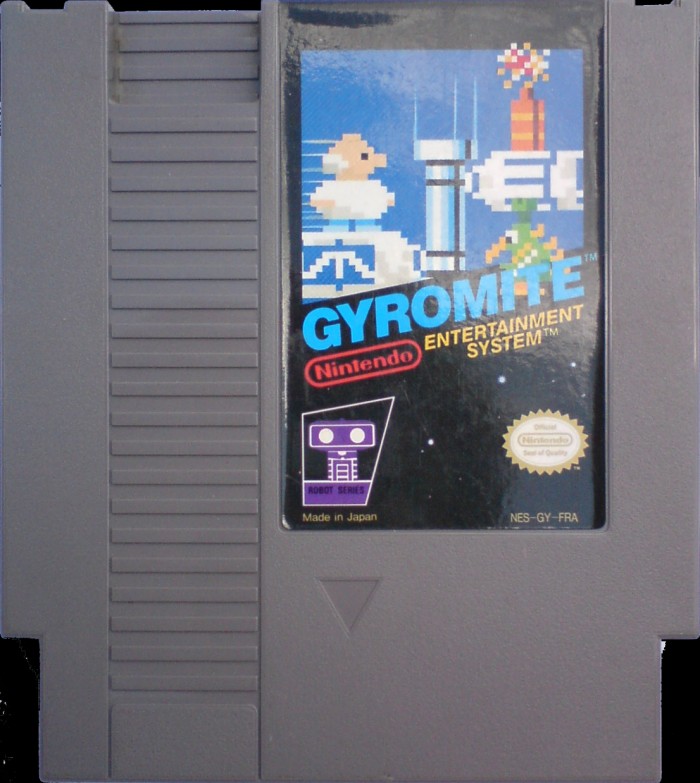

Cart Properties
| Cart Producer | Nintendo (NES) |
|---|---|
| Color | Grey |
| Form Factor | 3-Screw |
| Embossed Text | Nintendo® Pat. Pend. Made in Japan |
| Front Label ID | NES-GY-FRA |
| Seal of Quality | Oval (TM) |
| MfgString Present | Yes |
| 2-digit Code | 11 |

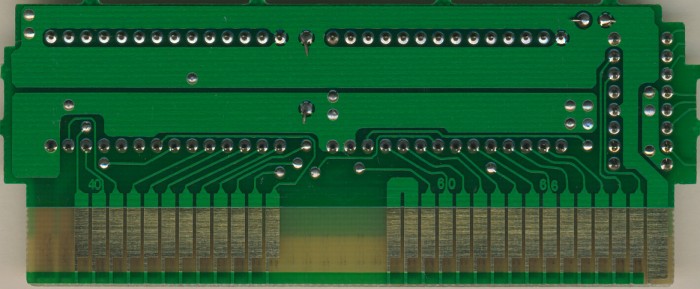

PCB Properties
| Name | NES-NROM-256-05 |
|---|---|
| PCB Producer | Nintendo |
| Manufacturer | Not Specified |
| Mfg Range | 8738 - 8933 (2) |
| Est First Run | September 1987 |
| PCB Class | NES-NROM-256 |
| iNES Mapper | 0 |
| Mirroring | Vertical |
| Battery present | No |
| WRAM | 0 KB |
| VRAM | 0 KB |
| CIC Type | 3197A |
| Hardware |
ROM Details
| Type | Label | Size | CRC32 | x ! |
|---|---|---|---|---|
| PRG0 | HVC-GY-0 PRG | 32 KB | 21B099F3 | 10 |
| CHR0 | HVC-GY-0 CHR | 8 KB | D0135A78 | 10 |
| N/A | ROMs Combined | 40 KB | 023A5A32 | 10 |

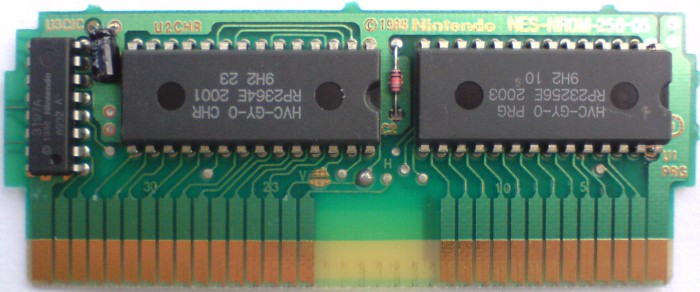

Detailed Chip Info
| Designation | Maker | Part # | Type | Package | Date Code | Std | Misc |
|---|---|---|---|---|---|---|---|
| U1 PRG | Ricoh | RP23256E 2003 | Mask ROM 32 KB | DIP-28 | 9H2 10 | 8933 | |
| U2 CHR | Ricoh | RP2364E 2001 | Mask ROM 8 KB | DIP-28 | 9H2 23 | 8933 | |
| U3 CIC | Sharp | 3197A | Nintendo CIC | DIP-16 | 8932 A | 8932 |
